Product Descriptions

Gscoolink GSV2501 is a high-performance, low-power HDMI 2.0 transmitter with CEC, ARC Rx and eARC Rx. By integrating enhanced microcontroller based on RISC-V, GSV2501 has created a cost-effective solution that provides time-to-market advantages. GSV2501’s HDMI Transmitter supports up to 18Gbps (TMDS, 6G/3Lane). The superior architecture of GSV2501 provides economical smaller footprint solutions using QFN64, targeting applications of HomeAV and ProAV.

Product Features

HDMI Transmitter Features

? Compliant with HDMI 2.0b, HDMI 1.4b

? Compliant with HDCP 2.2/2.3 and HDCP 1.4

? Data rate up to 18Gbps (TMDS 6Gbps/3 Lane)

? Programmable Voltage Swing, Slew-Rate and Pre-emphasis

? Support AC-coupling on TMDS

? Support Color Space Converter

? Hardware CEC Engine for Low Level protocol decoding

? 5V tolerance on DDC/HPD/CEC pins

Audio Input/Output Features

? I2S and SPDIF Audio Extraction from HDMI Rx

? I2S/SPDIF Audio Insertion to HDMI Tx

? SPDIF/I2S/HBR/DSD/TDM Format Supported for Audio Extraction and Insertion

? SPDIF to I2S Conversion using single TTL bus in Bi-direction

System Features

? Optional External MCU (via I2C)/ Internal MCU mode for chip control

? Embedded MCU and External Flash

? External pins of Flash QSPI interface

? External 25MHz Crystal required

? Available Pins for UART/Timer/GPIO

? Temperature Sensor Monitoring Circuit

Specifications

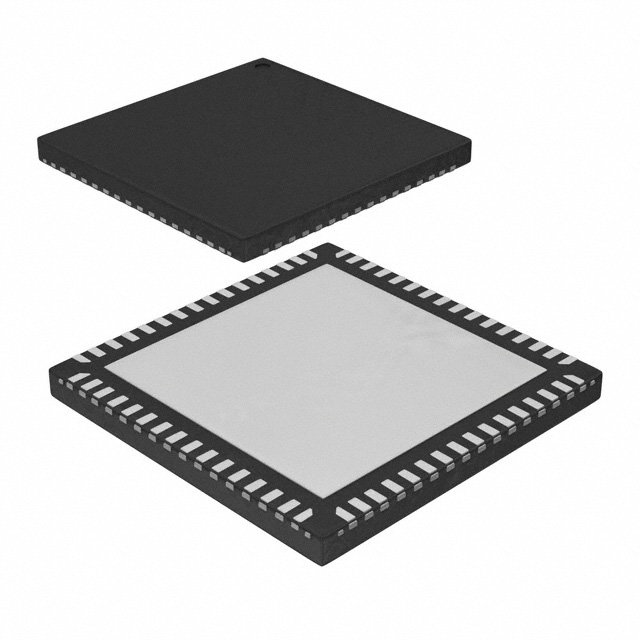

Actual product photos

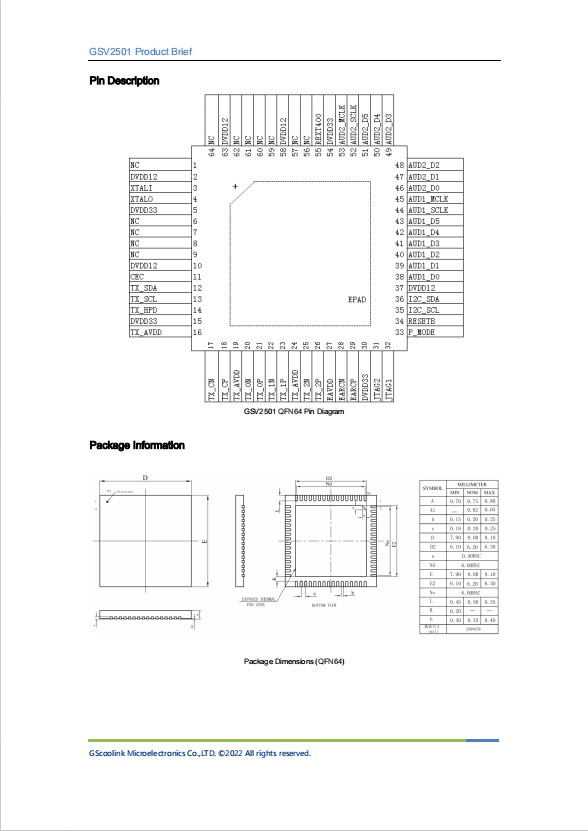

Product Data Book：
