Product Descriptions

Gscoolink GSV6505 is a high-performance, low-power 1 In to 4 Out HDMI 2.1 to HDMI 2.1 splitter. By integrating enhanced microcontroller based on RISC-V, GSV6505 has created a cost-effective solution that provides time-to-market advantages. GSV6505’s HDMI Receiver and HDMI Transmitter supports up to 48Gbps (FRL, 12G/4Lane). The superior architecture of GSV6505 provides economical smaller footprint solutions using QFN96, targeting applications of Consumer and ProAV.

Product Features

HDMI Receiver Features

? Compliant with HDMI 2.1, HDMI 2.0b, HDMI 1.4b

? Compliant with HDCP 2.2/2.3 and HDCP 1.4 in repeater/receiver mode

? Data rate up to 48Gbps (FRL 12Gbps/4 Lane)

? Programmable Adaptive Equalization

? Support High Dynamic Range (HDR) and Dynamic/Static Metadata

? Support Variable Refresh Rate (VRR), FreeSync, G-Sync

? Support ALLM

? Support Forward Error Correction (FEC)

? Support DSC pass-through for compressed input timing

? Embedded arbitrary EDID (up to 512 bytes)

? 5V tolerance on DDC/HPD pins

HDMI Transmitter Features

? Compliant with HDMI 2.1a, HDMI 2.0b, HDMI 1.4b

? Compliant with HDCP 2.2/2.3 and HDCP 1.4

? Data rate up to 48Gbps (FRL 12Gbps/4 Lane)

? Programmable Voltage Swing, Slew-Rate and Pre-emphasis

? Support AC-coupling on TMDS input/output

? Support Color Space Converter in TMDS mode

? Support HDR (HDR10/HDR10+/Dolby Vision/HLG)

? Support Variable Refresh Rate (VRR), FreeSync, G-Sync

? Support ALLM

? Support DSC encoded stream pass-through from HDMI/DP input

? Hardware CEC Engine for Low Level protocol decoding

? 5V tolerance on DDC/HPD/CEC pins Pixel Processor Features

? HDR to SDR conversion for HDR10, HDR10+, HLG and Low Latency DolbyVision

? Color Space conversion

? YCbCr 444-420 timing conversion

? Downscaler with selectable 2/3/4/8/16/32 ratio

? Deinterlacer for interlaced timing

Audio Input/Output Features

? I2S and SPDIF Audio Extraction from HDMI Rx

? I2S/SPDIF Audio Insertion to HDMI Tx

? SPDIF/I2S/HBR/DSD/TDM Format Supported for Audio Extraction and Insertion

? SPDIF to I2S Conversion using single TTL bus in Bi-direction

System Features

? Optional External MCU (via I2C)/ Internal MCU mode for chip control

? Embedded MCU and External Flash

? External pins of Flash QSPI interface

? External 25MHz Crystal required

? Available Pins for UART/Timer/GPIO

? Temperature Sensor Monitoring Circuit

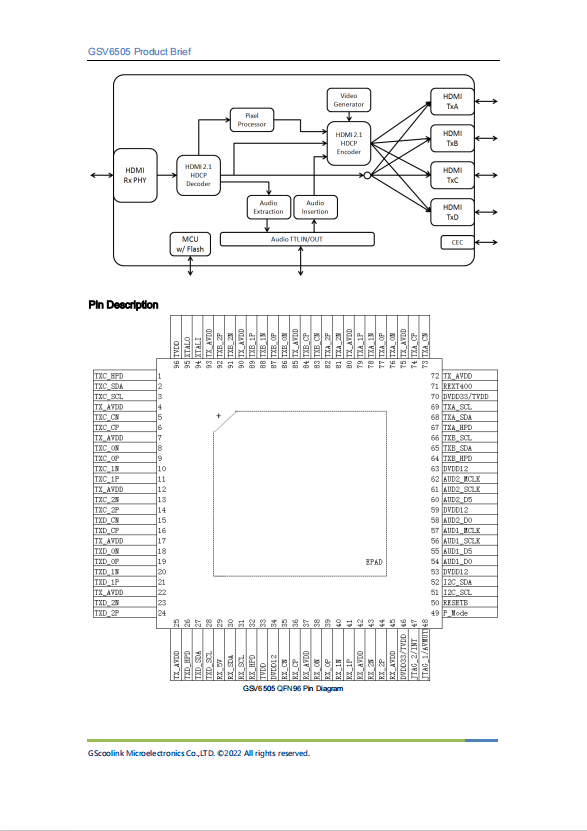

Specifications

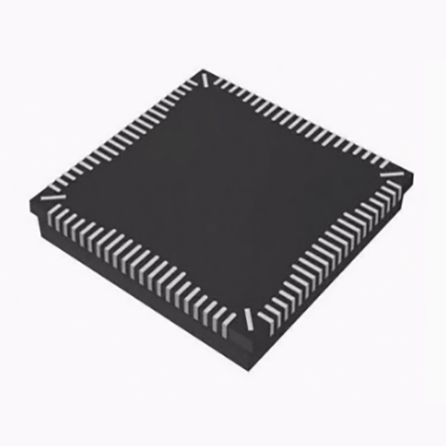

Actual product photos

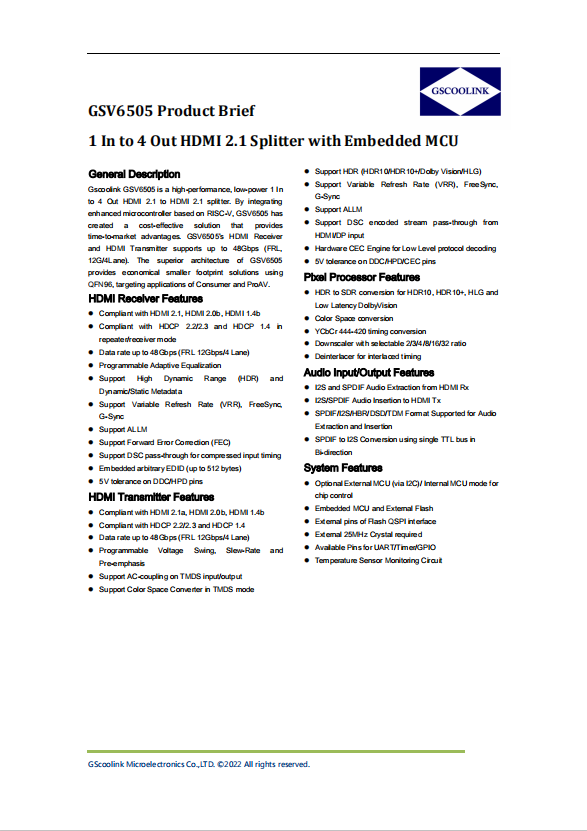

Product Data Book：
