Product Descriptions

Gscoolink GSV2201E is a high-performance, low-power, USB Type-C Alternate Mode DisplayPort 1.4 to HDMI 2.0 converter. By integrating enhanced microcontroller and flash, GSV2201E has created a cost-effective solution that provides time-to-market advantages. The DisplayPort Receiver supports up to 32.4Gbps (HBR3, 4-lane) and HDMI Transmitter supports up to 18Gbps (TMDS, 6G3Lane). Integrated Power Delivery 3.0 controller handles Type-C CC interface for USB power management and DisplayPort mode entry. The superior architecture of GSV2201E provides economical smaller footprint solutions using QFN64, targeting application of Type-C Hub.

GSV2201E supports all DisplayPort SDP packets pass-through to HDMI output. HDCP 1.4 and HDCP 2.2/2.3 are implemented in GSV2201E for both DisplayPort Rx and HDMI Tx. Color Space Conversion, 444/422-420 Converter are supported at HDMI Tx in TMDS mode.

Product Features

DisplayPort Receiver

? Compliant with VESA DisplayPort 1.4a

? Compliant with HDCP 2.2/2.3 and HDCP 1.4

? Support HBR3, HBR2, HBR and RBR (8.1/5.4/2.7/1.62 Gbps)

? Flexible 1/2/4 lane Main-Link configuration

? Programmable Adaptive Equalization

? Support Full-Link Training and No-Link Training

? Support High Dynamic Range (HDR) and Dynamic/Static Metadata

? Support Horizontal Blanking Expansion up to 4K@60Hz format

? Support 4K120Hz YCbCr 4:2:0 timing

? Support Forward Error Correction (FEC)

? Embedded arbitrary EDID and MCCS

? Support Spread Spectrum Clock (SSC)

HDMI Transmitter

? Compliant with HDMI 2.0b, HDMI 1.4b

? Compliant with HDCP 2.2/2.3 and HDCP 1.4

? Data rate up to 18Gbps (TMDS 6Gbps/3 Lane)

? Programmable Voltage Swing, Slew-Rate and Pre-emphasis

? Support AC-coupling on TMDS

? Support Color Space Converter

? Support HDR (HDR10/HDR10+/Dolby Vision/HLG)

? Hardware CEC Engine for Low Level protocol decoding

? 5V tolerance on DDC/HPD/CEC pins

USB Type-C Interface

? Dual USB Power Delivery 3.0 Compliant controller

? 4 Configuration Channels (CC) with on-chip Rp/Rd resistors

? Dual Role Power Port (DRP)

? Fast Role Swap

? USB 2.0 Billboard Enumeration

System Features

? Embedded internal MCU and Flash

? External 25MHz Crystal required

? Available Pins for UART/Timer/GPIO

? Temperature Sensor Monitoring Circuit

Specifications

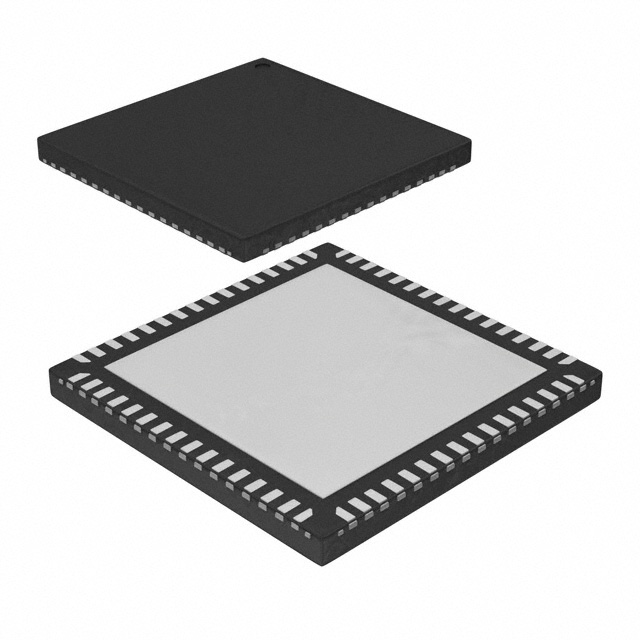

Actual product photos

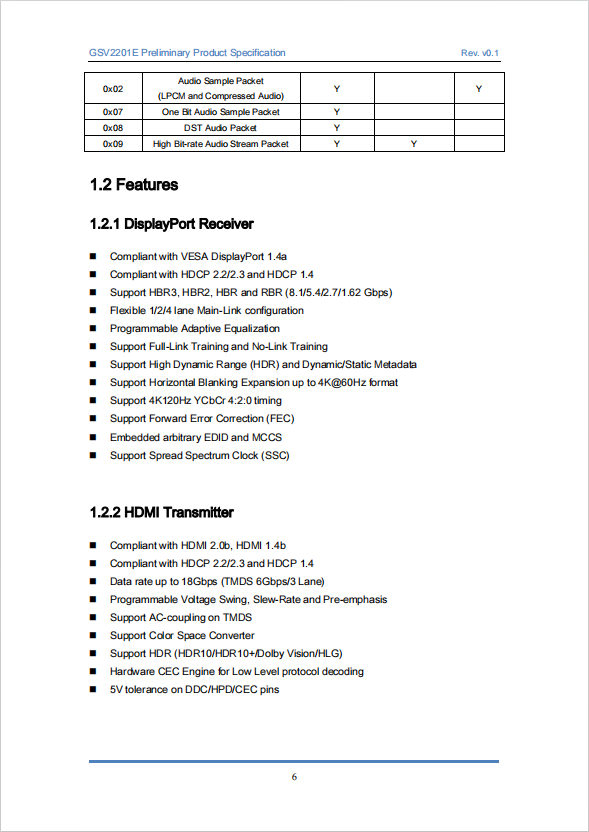

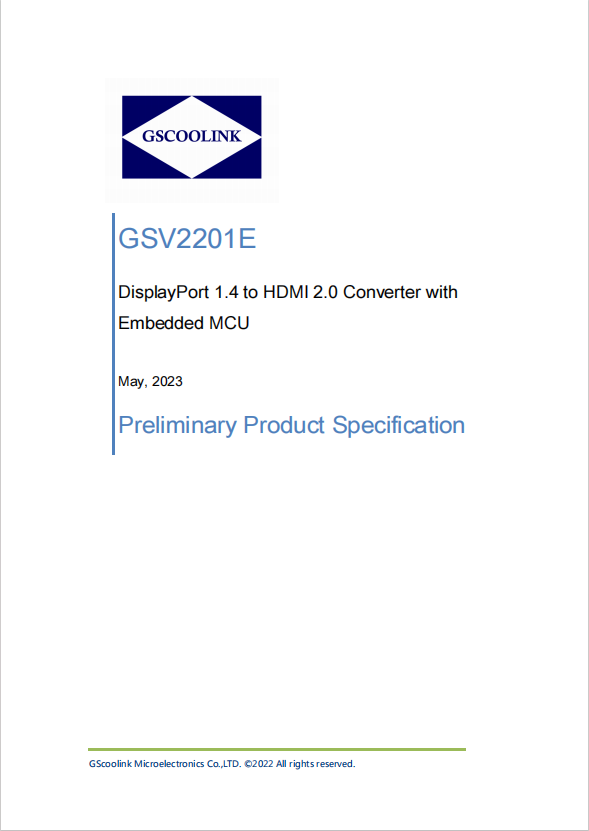

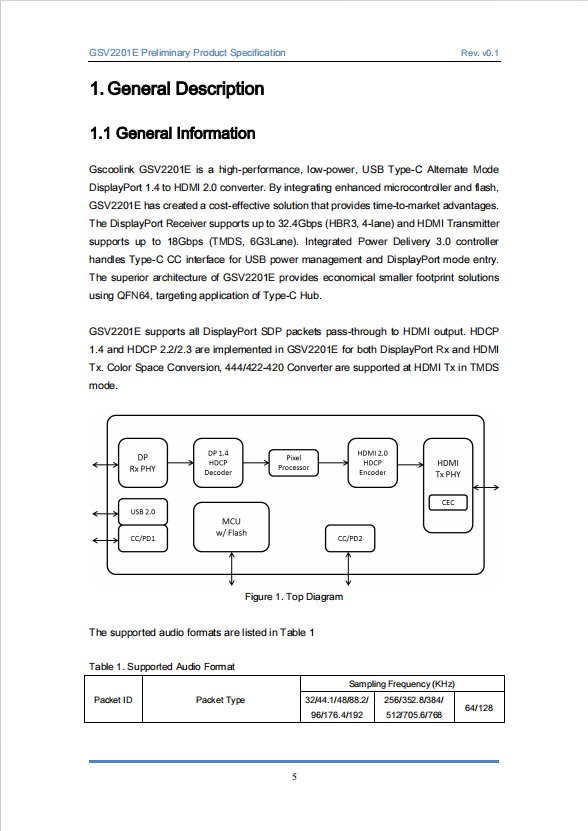

Product Data Book：

For more product information, please download the PDF
