Product Descriptions

Gscoolink GSV6201 is a high-performance, low-power, USB Type-C Alternate Mode DisplayPort 1.4 to HDMI 2.1 converter. By integrating enhanced microcontroller, GSV6201 has created a cost-effective solution that provides time-to-market advantages. The DisplayPort Receiver supports up to 32.4Gbps (HBR3, 4-lane) and HDMI Transmitter supports up to 48Gbps (FRL, 12G4Lane). Integrated Power Delivery 3.0 controller handles Type-C CC interface for USB power management and DisplayPort mode entry. The superior architecture of GSV6201 provides economical smaller footprint solutions using QFN64, targeting applications of Type-C Docking, Type-C dongle and DP to HDMI cable.

Product Features

DisplayPort Receiver Features

? Compliant with VESA DisplayPort 1.4a

? Compliant with HDCP 2.2/2.3 and HDCP 1.4

? Support HBR3, HBR2, HBR and RBR (8.1/5.4/2.7/1.62 Gbps)

? Flexible 1/2/4 lane Main-Link configuration

? Programmable Adaptive Equalization

? Support Full-Link Training and No-Link Training

? Support High Dynamic Range (HDR) and Dynamic/Static Metadata

? Support Adaptive Sync/FreeSync

? Support Audio Extraction

? Support Horizontal Blanking Expansion up to 4K@120Hz format

? Support Forward Error Correction (FEC)

? Embedded arbitrary EDID and MCCS

? Support Spread Spectrum Clock (SSC)

HDMI Transmitter Features

? Compliant with HDMI 2.1, HDMI 2.0b, HDMI 1.4b

? Compliant with HDCP 2.2/2.3 and HDCP 1.4

? Data rate up to 48Gbps (FRL 12Gbps/4 Lane)

? Programmable Voltage Swing, Slew-Rate and

Pre-emphasis

? Support AC-coupling on TMDS

? Support Color Space Converter in HDMI 2.0 mode

? Support HDR (HDR10/HDR10+/Dolby Vision/HLG)

? Support Variable Refresh Rate (VRR)/FreeSync

? Support DSC encoded stream pass-through

? Hardware CEC Engine for Low Level protocol decoding

? 5V tolerance on DDC/HPD/CEC pins

USB Type-C Interface Features

? USB Power Delivery 3.0 Compliant controller

? 3 Configuration Channels (CC) with built-in Rp/Rd resistors

? Dual Role Power Port (DRP)

? Fast Role Swap

? USB 2.0 full-speed billboard enumeration

Audio Input/Output Features

? I2S and SPDIF Audio Extraction from HDMI Rx

? I2S/SPDIF Audio Insertion to HDMI Tx

? SPDIF/I2S/HBR/DSD/TDM Format Supported for Audio Extraction and Insertion

? SPDIF to I2S Conversion using single TTL bus in Bi-direction

System Features

? Embedded internal MCU

? Optional Internal Flash or External pins of Flash QSPI interface

? External 25MHz Crystal required

? Available Pins for UART/Timer/GPIO

? Temperature Sensor Monitoring Circuit

Specifications

Actual product photos

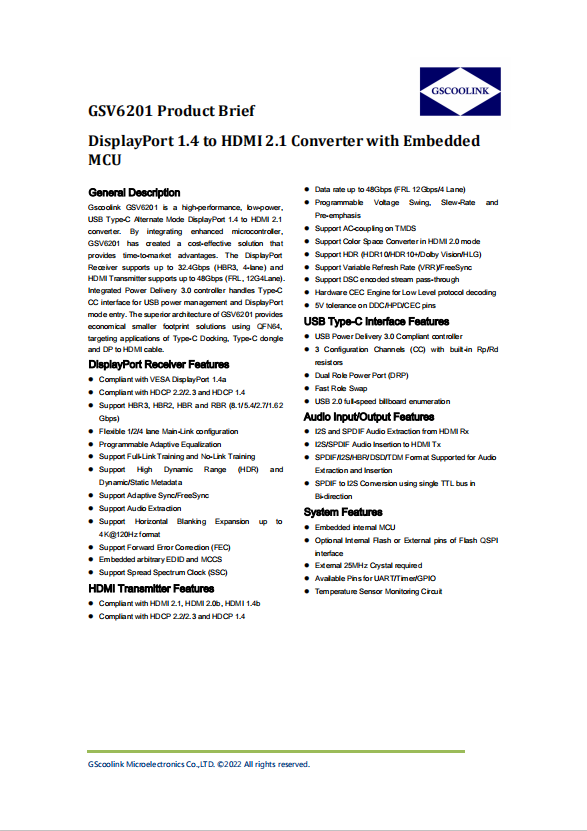

Product Data Book：
