Product Features
■ Single blow fuse for overcurrent protection
■ 3216 (EIA 1206) miniature footprint
■ Fast acting fuse
■ UL listed
■ RoHS compliant* and halogen free**
■ Thin fi lm chip fuse
■ Surface mount packaging for automated assembly
Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-SF-1206F150-2 |
| Category | Circuit Protection |
| Fuses | |
| Mfr | Bourns Inc. |
| Series | SinglFuse? SF-1206F |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel? | |
| Product Status | Active |
| Mounting Type | Surface Mount |
| Fuse Type | Board Mount (Cartridge Style Excluded) |
| Current Rating (Amps) | 1.5 A |
| Voltage Rating - DC | 63 V |
| Response Time | Fast Blow |
| Package / Case | 1206 (3216 Metric) |
| Breaking Capacity @ Rated Voltage | 50A |
| Melting I2t | 0.144 |
| Approval Agency | UL |
| Operating Temperature | -40°C ~ 105°C |
| Color | - |
| Size / Dimension | 0.122" L x 0.061" W x 0.024" H (3.10mm x 1.55mm x 0.60mm) |
| DC Cold Resistance | 0.065 Ohms |
| Base Product Number | SF-1206 |

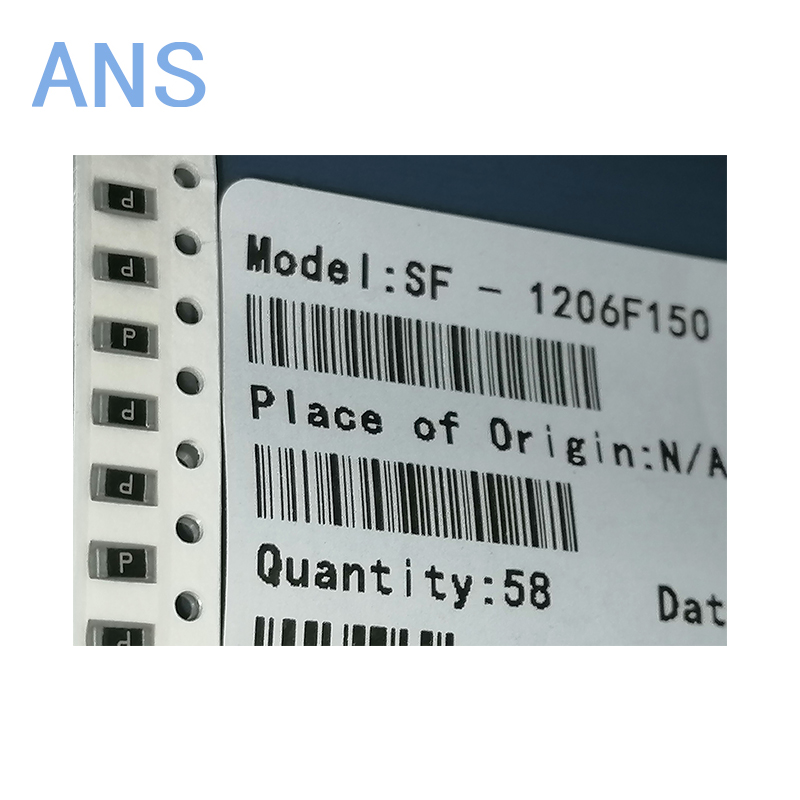

Actual product photos

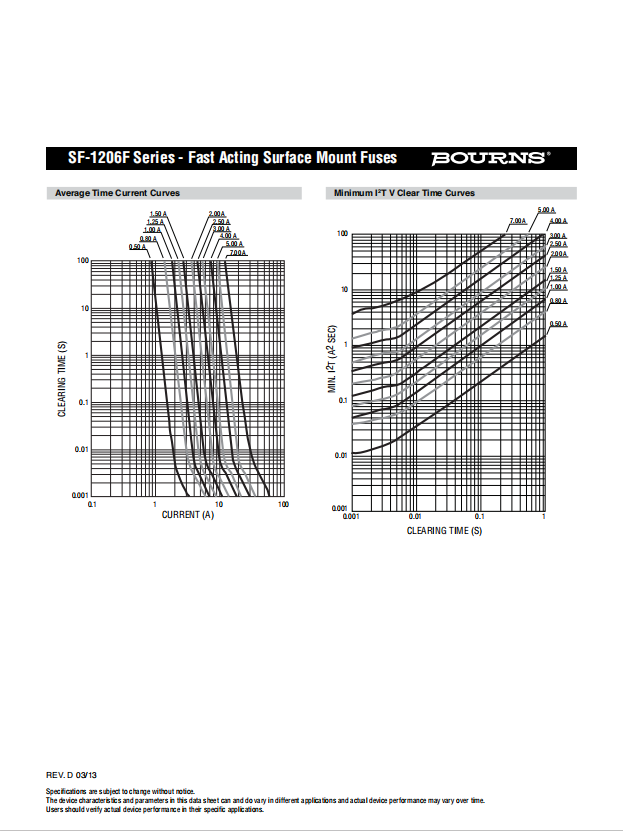

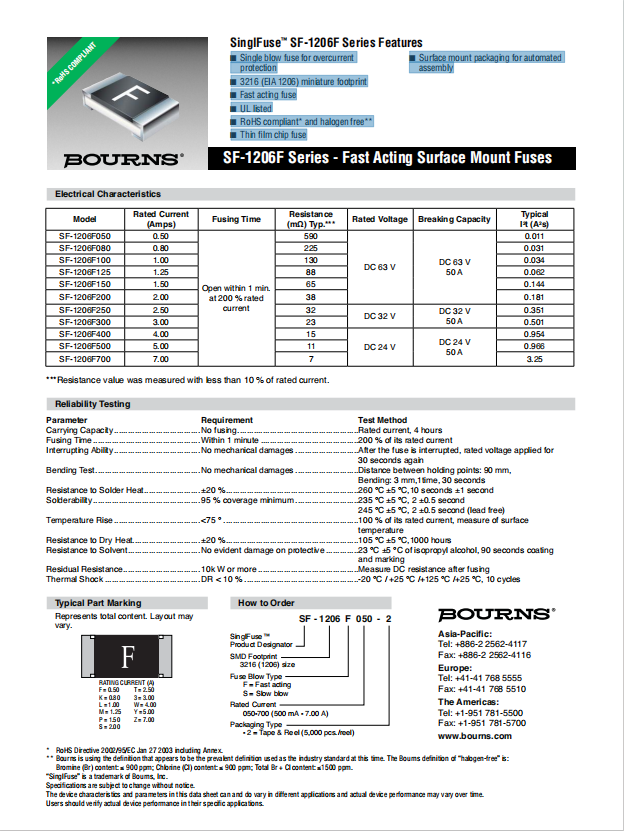

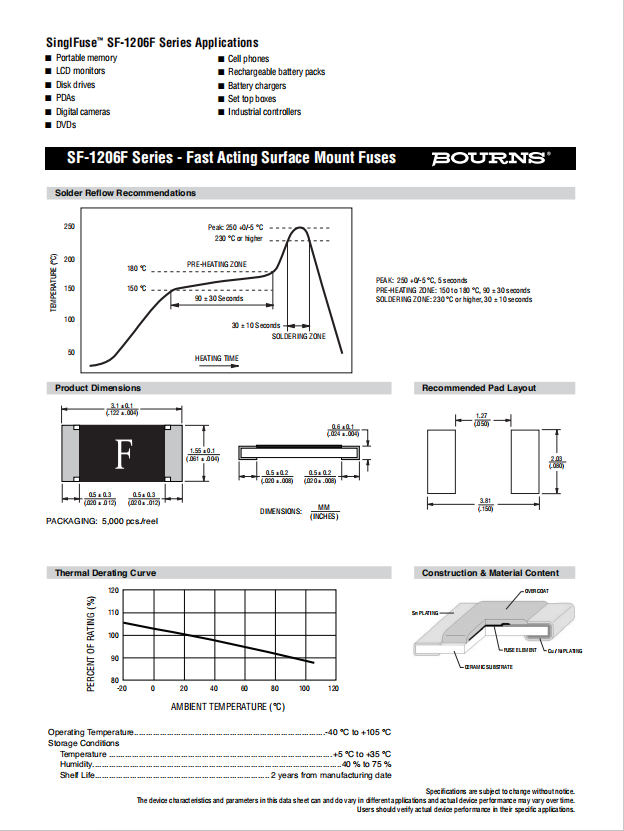

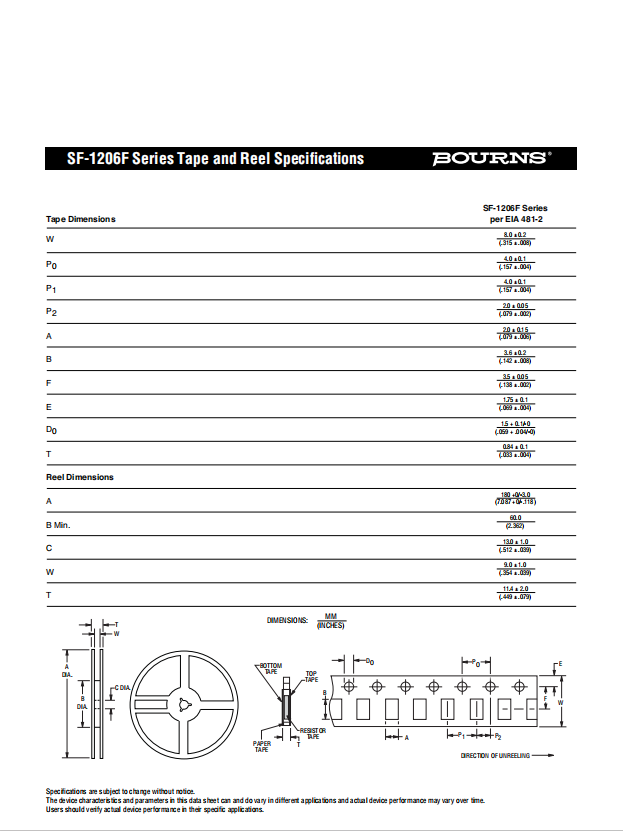

Product Data Book：
