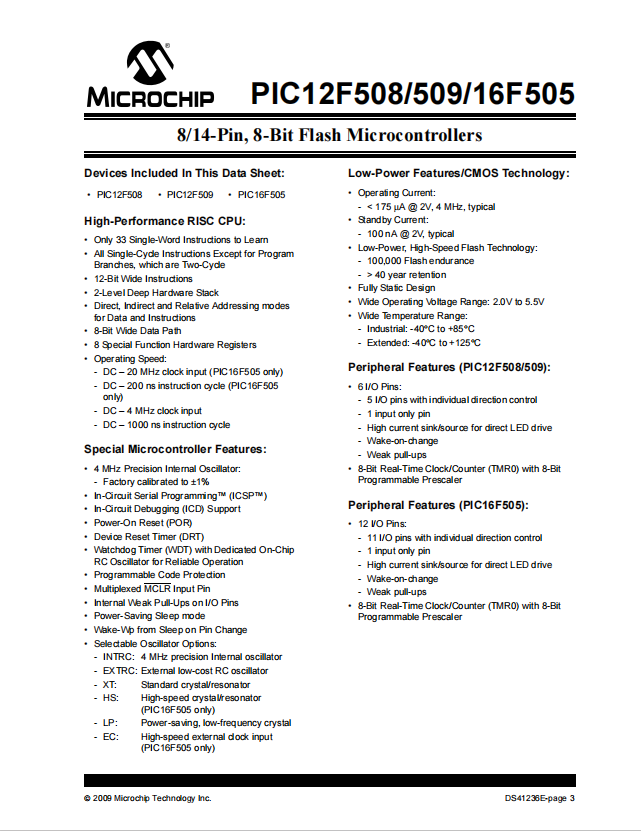

Product Features

High-Performance RISC CPU:

? Only 33 Single-Word Instructions to Learn

? All Single-Cycle Instructions Except for Program Branches, which are Two-Cycle

? 12-Bit Wide Instructions

? 2-Level Deep Hardware Stack

? Direct, Indirect and Relative Addressing modes for Data and Instructions

? 8-Bit Wide Data Path

? 8 Special Function Hardware Registers

? Operating Speed:

- DC – 20 MHz clock input (PIC16F505 only)

- DC – 200 ns instruction cycle (PIC16F505 only)

- DC – 4 MHz clock input

- DC – 1000 ns instruction cycle

Special Microcontroller Features:

? 4 MHz Precision Internal Oscillator:

- Factory calibrated to ±1%

? In-Circuit Serial Programming? (ICSP?)

? In-Circuit Debugging (ICD) Support

? Power-On Reset (POR)

? Device Reset Timer (DRT)

? Watchdog Timer (WDT) with Dedicated On-Chip

RC Oscillator for Reliable Operation

? Programmable Code Protection

? Multiplexed MCLR Input Pin

? Internal Weak Pull-Ups on I/O Pins

? Power-Saving Sleep mode

? Wake-Wp from Sleep on Pin Change

? Selectable Oscillator Options:

- INTRC: 4 MHz precision Internal oscillator

- EXTRC: External low-cost RC oscillator

- XT: Standard crystal/resonator

- HS: High-speed crystal/resonator (PIC16F505 only)

- LP: Power-saving, low-frequency crystal

- EC: High-speed external clock input (PIC16F505 only)

Low-Power Features/CMOS Technology:

? Operating Current:

- < 175 μA @ 2V, 4 MHz, typical

? Standby Current:

- 100 nA @ 2V, typical

? Low-Power, High-Speed Flash Technology:

- 100,000 Flash endurance

- > 40 year retention

? Fully Static Design

? Wide Operating Voltage Range: 2.0V to 5.5V

? Wide Temperature Range:

- Industrial: -40°C to +85°C

- Extended: -40°C to +125°C

Peripheral Features (PIC16F505):

? 12 I/O Pins:

- 11 I/O pins with individual direction control

- 1 input only pin

- High current sink/source for direct LED drive

- Wake-on-change

- Weak pull-ups

? 8-Bit Real-Time Clock/Counter (TMR0) with 8-Bit Programmable Prescaler

Specifications

Actual product photos

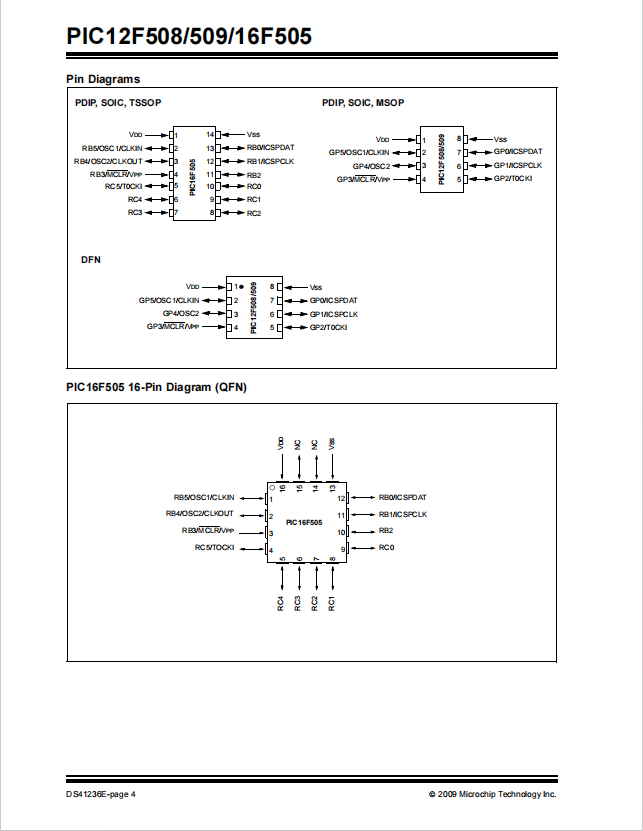

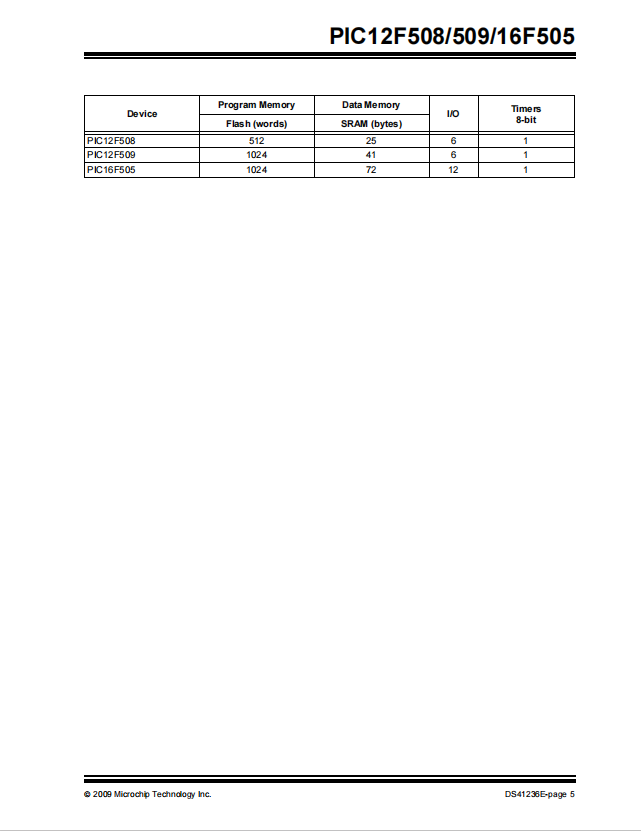

Product Data Book：
