Product Features

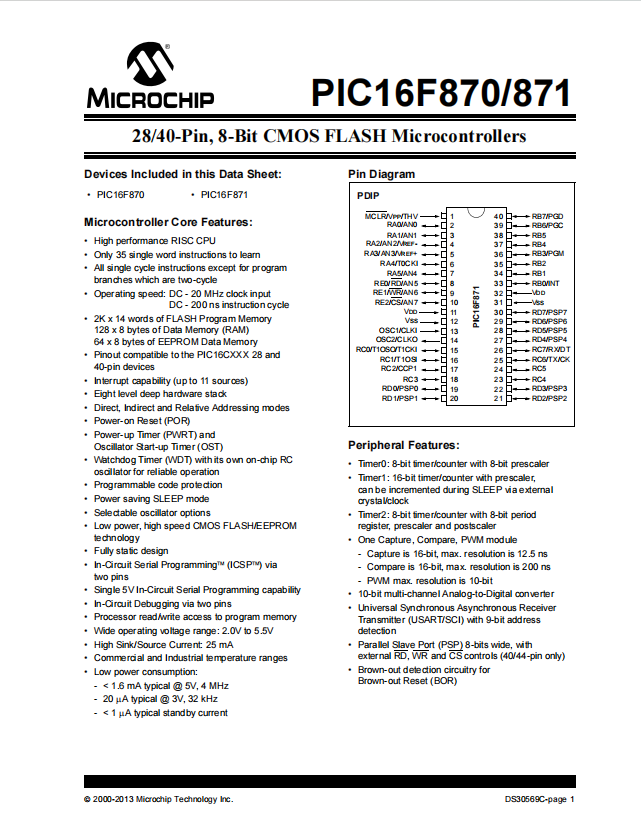

Microcontroller Core Features:

? High performance RISC CPU

? Only 35 single word instructions to learn

? All single cycle instructions except for program branches which are two-cycle

? Operating speed:

                              DC - 20 MHz clock input

                              DC - 200 ns instruction cycle

? 2K x 14 words of FLASH Program Memory

  128 x 8 bytes of Data Memory (RAM)

  64 x 8 bytes of EEPROM Data Memory

? Pinout compatible to the PIC16CXXX 28 and 40-pin devices

? Interrupt capability (up to 11 sources)

? Eight level deep hardware stack

? Direct, Indirect and Relative Addressing modes

? Power-on Reset (POR)

? Power-up Timer (PWRT) and Oscillator Start-up Timer (OST)

? Watchdog Timer (WDT) with its own on-chip RC oscillator for reliable operation

? Programmable code protection

? Power saving SLEEP mode

? Selectable oscillator options

? Low power, high speed CMOS FLASH/EEPROM technology

? Fully static design

? In-Circuit Serial Programming??(ICSP?) via two pins

? Single 5V In-Circuit Serial Programming capability

? In-Circuit Debugging via two pins

? Processor read/write access to program memory

? Wide operating voltage range: 2.0V to 5.5V

? High Sink/Source Current: 25 mA

? Commercial and Industrial temperature ranges

? Low power consumption:

- < 1.6 mA typical @ 5V, 4 MHz

- 20 ?A typical @ 3V, 32 kHz

- < 1 ?A typical standby current

Peripheral Features:

? Timer0: 8-bit timer/counter with 8-bit prescaler

? Timer1: 16-bit timer/counter with prescaler,can be incremented during SLEEP via external crystal/clock

? Timer2: 8-bit timer/counter with 8-bit period register, prescaler and postscaler

? One Capture, Compare, PWM module

- Capture is 16-bit, max. resolution is 12.5 ns

- Compare is 16-bit, max. resolution is 200 ns

- PWM max. resolution is 10-bit

? 10-bit multi-channel Analog-to-Digital converter

? Universal Synchronous Asynchronous Receiver Transmitter (USART/SCI) with 9-bit address detection

? Parallel Slave Port (PSP) 8-bits wide, with external RD, WR and CS controls (40/44-pin only)

? Brown-out detection circuitry for Brown-out Reset (BOR)

Specifications

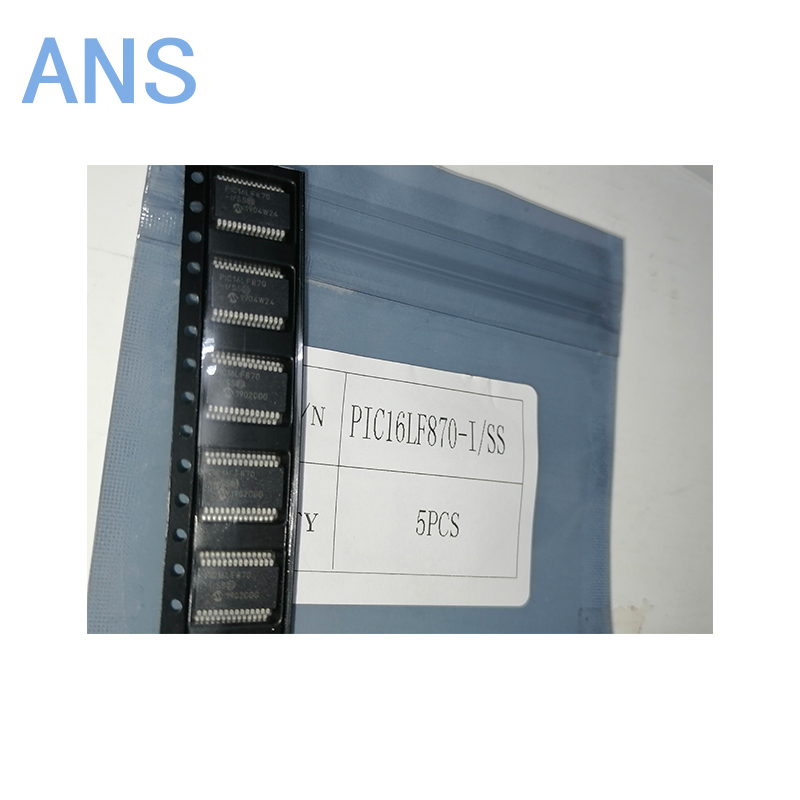

Actual product photos

Product Data Book：

For more product information, please download the PDF
