Product Descriptions
The ST3232B and ST3232C have two receivers and two drivers.
The devices are guaranteed to run at data rates of 250 kbps while maintaining RS-232 output levels.
The ST3232B and ST3232C devices are 3 V powered EIA/TIA-232 and V.28/V.24 communication interfaces with low power requirements and high data-rate capabilities.
These devices have a proprietary low dropout transmitter output stage providing true RS-232 performance from 3 to 5.5 V supplies. The devices require only four small 0.1 mF standard external capacitors for operation from a 3 V supply.
Product Features
? 300 μA supply current
? 300 kbps minimum guaranteed data rate
? 6 V/μs minimum guaranteed slew rate
? Meets EIA/TIA-232 specifications down to 3 V
? Available in SO16, SO16L, and TSSOP16 packages
Product Applications
? JPP Typical applications are notebooks, subnotebooks and palmtop computers, batterypowered equipment, hand-held equipment, peripherals, and printers.
Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-ST3232BTR |
| Category | Integrated Circuits (ICs) |
| Interface | |
| Drivers, Receivers, Transceivers | |
| Mfr | - |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel? | |
| Product Status | Active |
| Type | Transceiver |
| Protocol | RS232 |
| Number of Drivers/Receivers | 44959 |
| Duplex | Full |
| Receiver Hysteresis | 300 mV |
| Data Rate | 400kbps |
| Voltage - Supply | 3V ~ 5.5V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 16-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 16-TSSOP |
| Base Product Number | ST3232 |

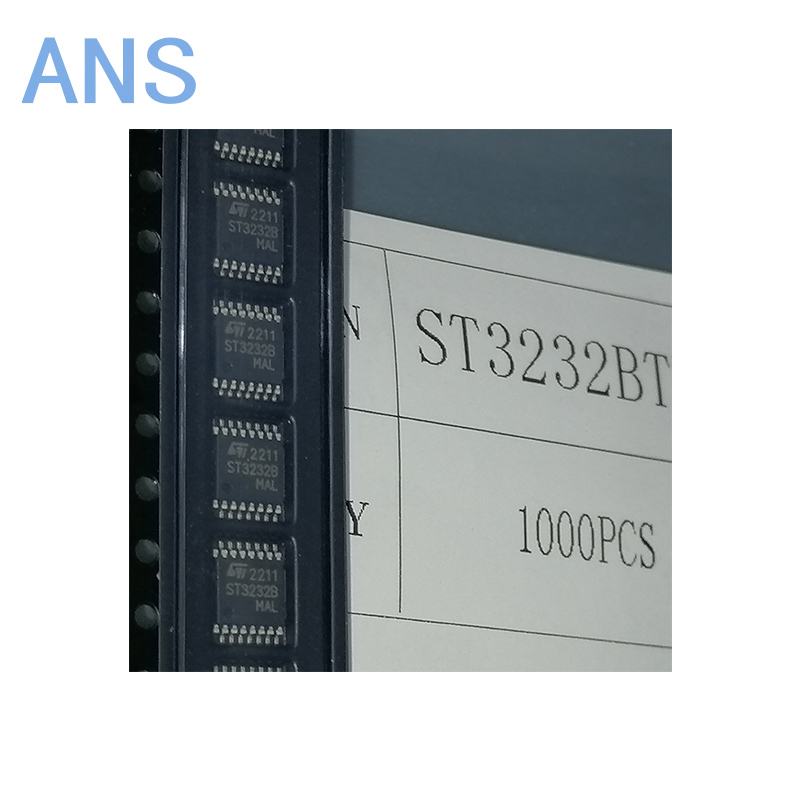

Actual product photos

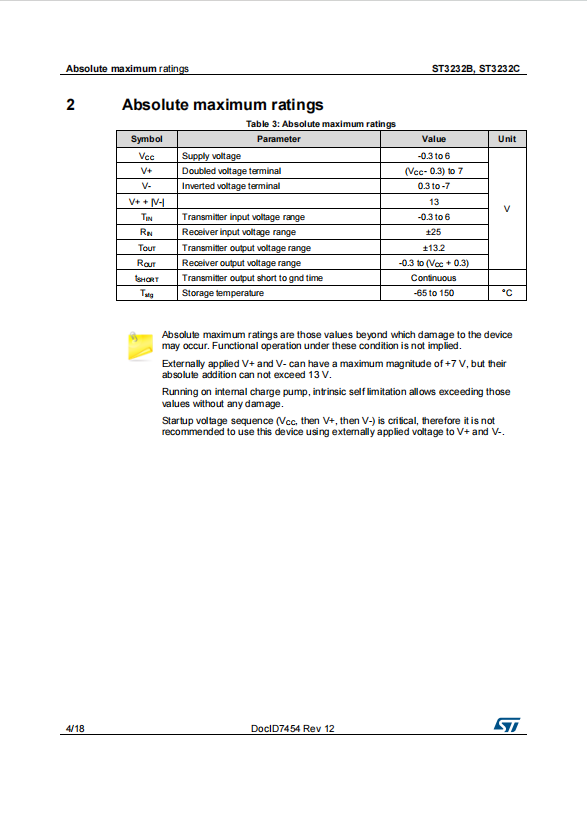

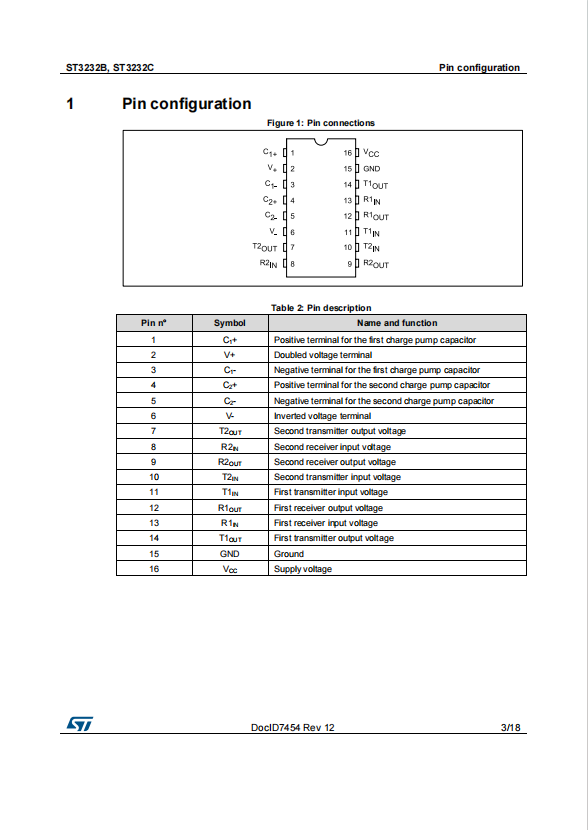

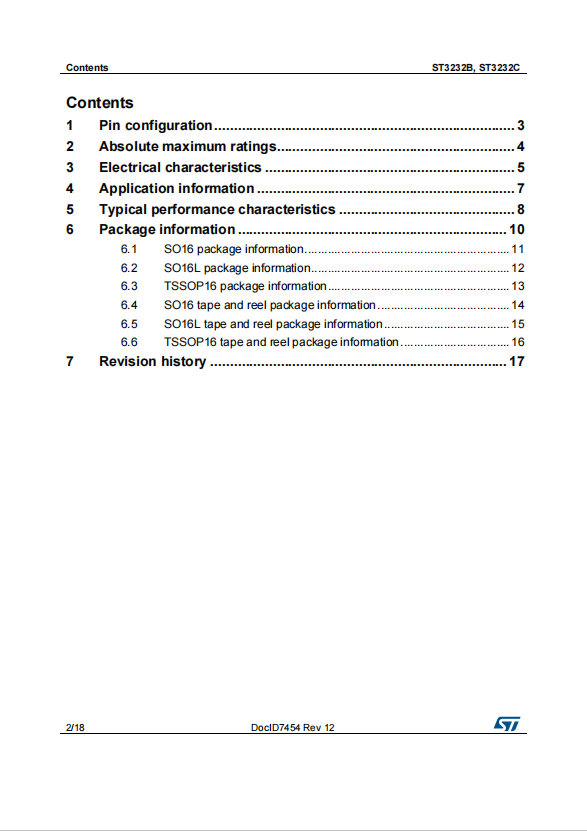

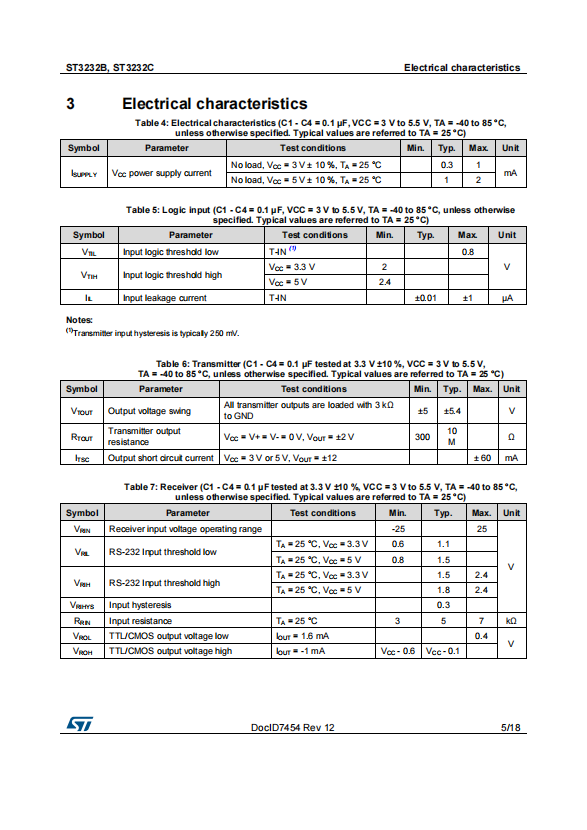

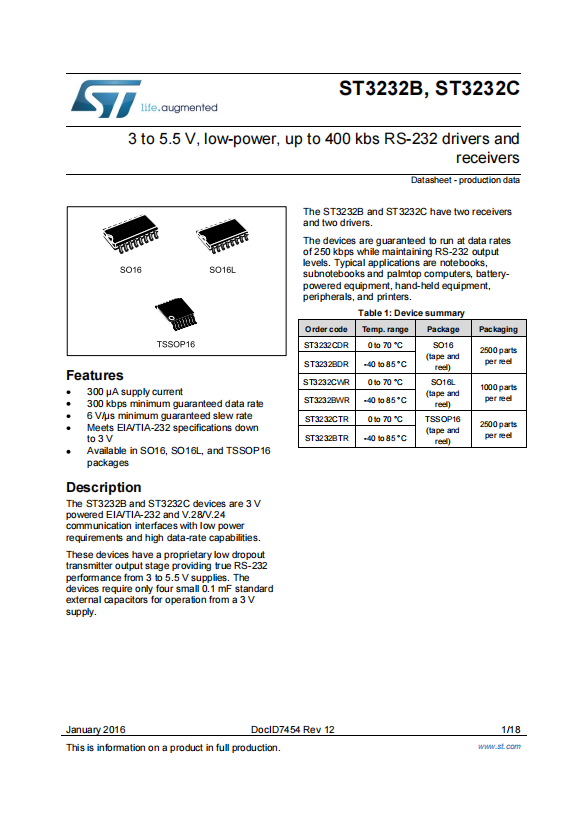

Product Data Book：
For more product information, please download the PDF
