Product Descriptions
Standard and logic level gate drive N-channel enhancement mode Field-Effect Transistor (FET) in a plastic package using advanced TrenchMOS technology. This product has been designed and qualified to the appropriate AEC Q101 standard for use in high performance automotive applications.
Product Features
? AEC Q101 compliant
? Suitable for intermediate level gate drive sources
? Suitable for thermally demanding environments due to 175 °C rating
Product Applications
? 12 V Automotive systems
? Electric and electro-hydraulic power steering
? Engine management
? Motors, lamps and solenoid control
? Start-Stop micro-hybrid applications
? Transmission control
? Ultra high performance power switching
Specifications
| ANSM-Part# | ANSM-BUK6211-75C,118 |
| Category | Discrete Semiconductor Products |
| Transistors | |
| FETs, MOSFETs | |
| Single FETs, MOSFETs | |
| Mfr | Nexperia USA Inc. |
| Series | TrenchMOS? |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel? | |
| Product Status | Obsolete |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 75 V |
| Current - Continuous Drain (Id) @ 25°C | 74A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 11mOhm @ 25A, 10V |
| Vgs(th) (Max) @ Id | 2.8V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | 81 nC @ 10 V |
| Vgs (Max) | ±16V |
| Input Capacitance (Ciss) (Max) @ Vds | 5251 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 158W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Mounting Type | Surface Mount |
| Supplier Device Package | DPAK |
| Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 |

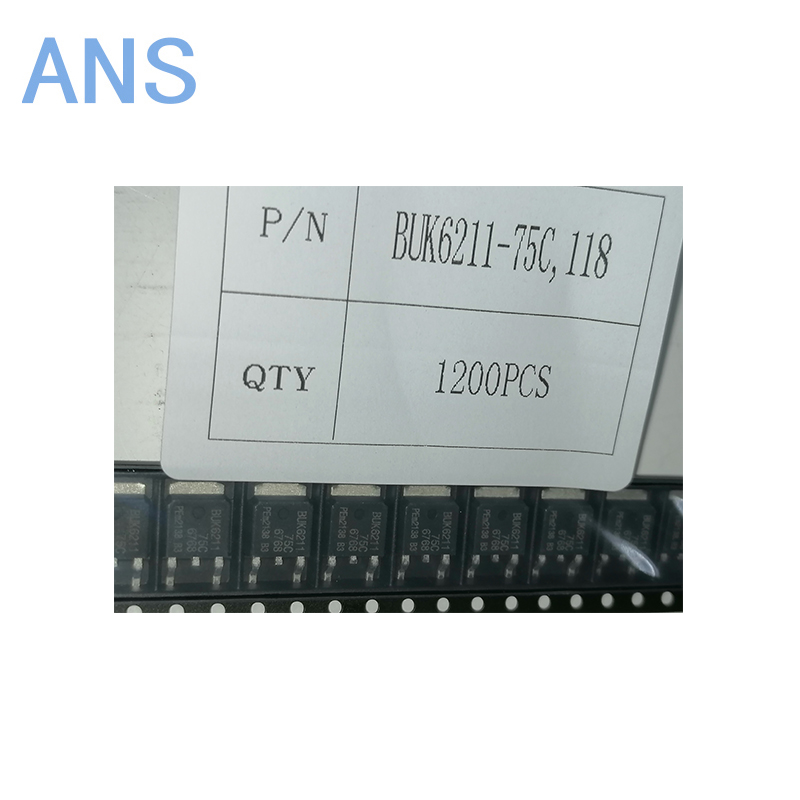

Actual product photos

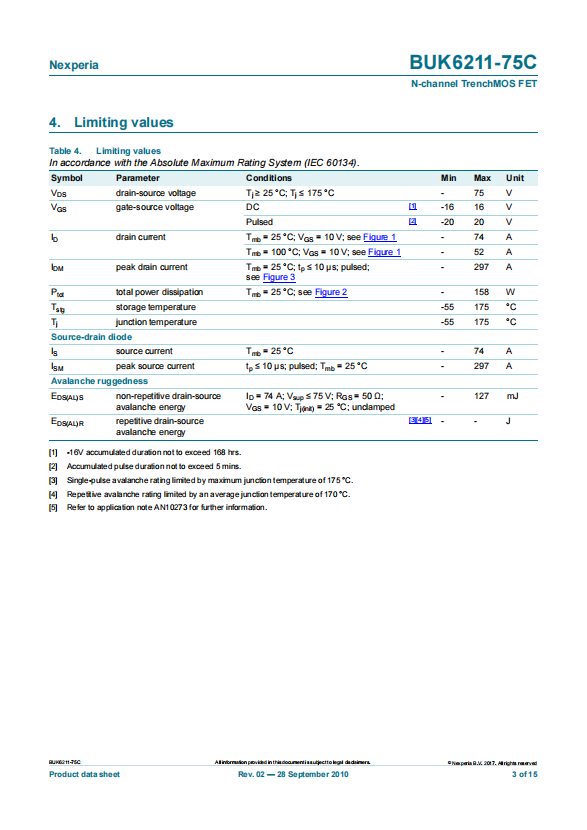

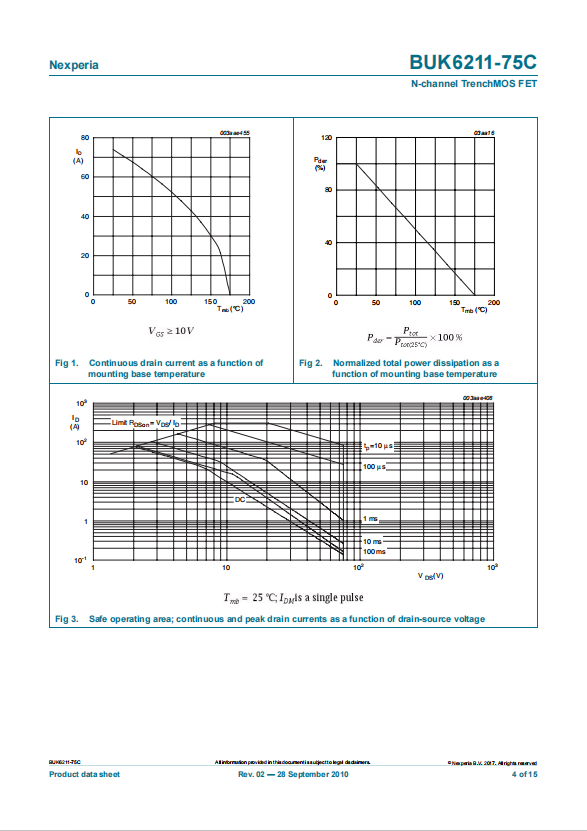

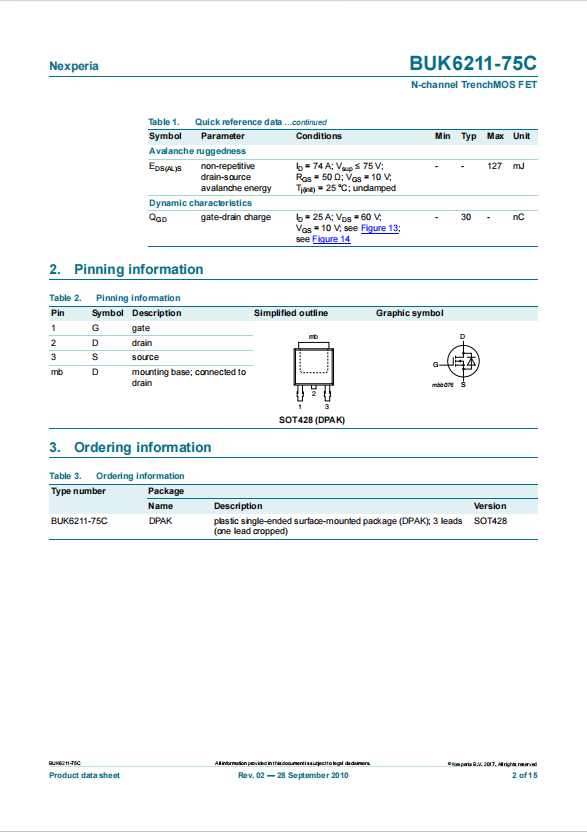

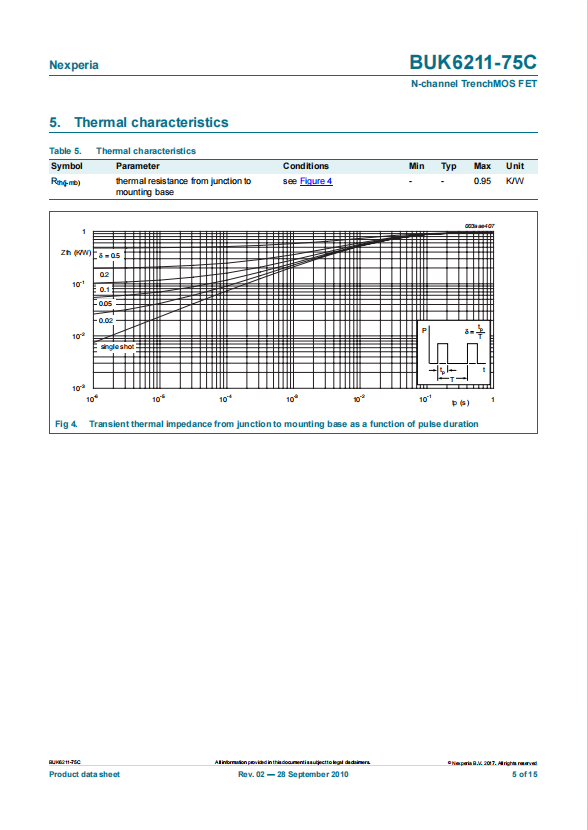

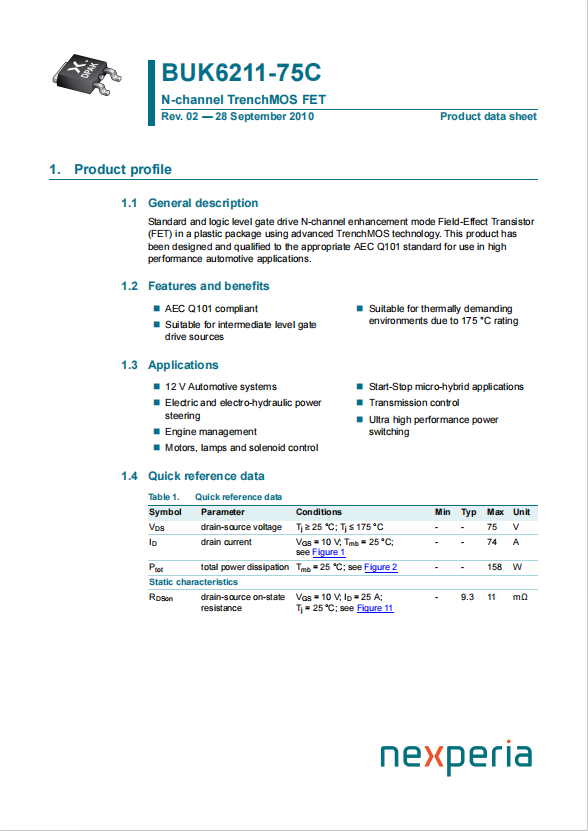

Product Data Book：
For more product information, please download the PDF
