Product Descriptions

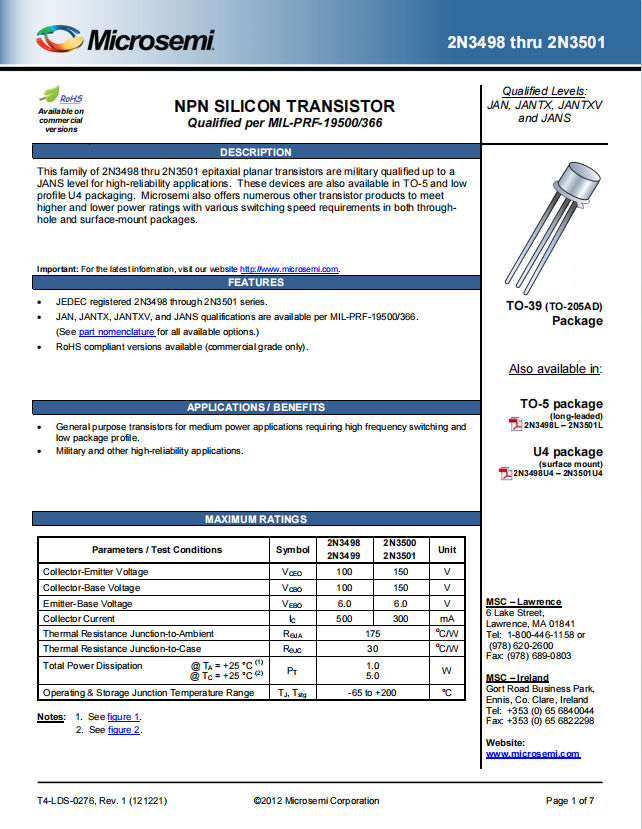

This family of 2N3498 thru 2N3501 epitaxial planar transistors are military qualified up to a JANS level for high-reliability applications. These devices are also available in TO-5 and low profile U4 packaging. Microsemi also offers numerous other transistor products to meet higher and lower power ratings with various switching speed requirements in both throughhole and surface-mount packages.
Product Features
? JEDEC registered 2N3498 through 2N3501 series.
? JAN, JANTX, JANTXV, and JANS qualifications are available per MIL-PRF- 19500/366.

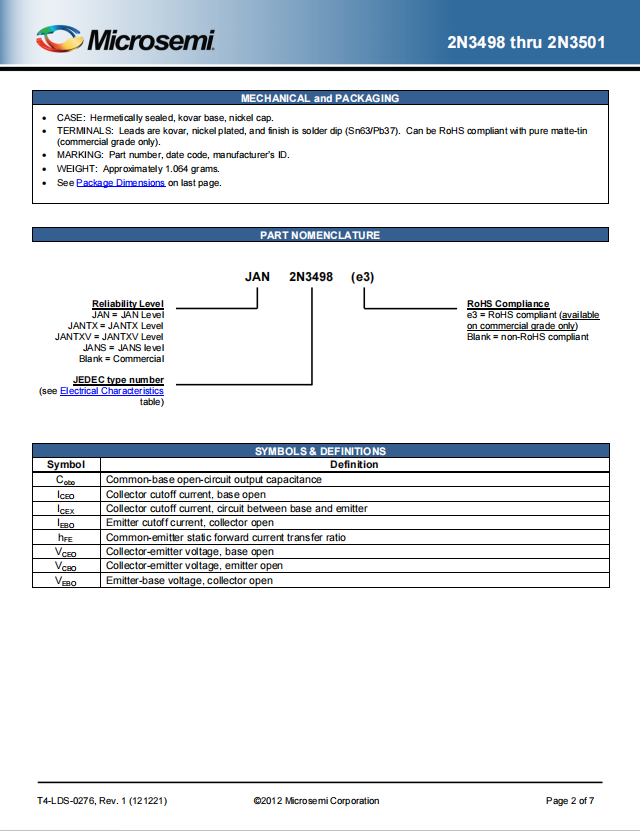

(See part nomenclature for all available options.)
? RoHS compliant versions available (commercial grade only).
Product Applications
? General purpose transistors for medium power applications requiring high frequency switching and low package profile.
? Military and other high-reliability applications.
Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-JAN2N3501 |
| Category | Discrete Semiconductor Products |
| Transistors | |
| Bipolar (BJT) | |
| Single Bipolar Transistors | |
| Mfr | Microchip Technology |
| Series | - |
| Package | Bulk |
| Product Status | Active |
| Transistor Type | NPN |
| Current - Collector (Ic) (Max) | 300 mA |
| Voltage - Collector Emitter Breakdown (Max) | 150 V |
| Vce Saturation (Max) @ Ib, Ic | 400mV @ 15mA, 150mA |
| Current - Collector Cutoff (Max) | 10μA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 100 @ 150mA, 10V |
| Power - Max | 1 W |
| Frequency - Transition | - |
| Operating Temperature | -65°C ~ 200°C (TJ) |
| Grade | Military |
| Qualification | MIL-PRF-19500/366 |
| Mounting Type | Through Hole |
| Package / Case | TO-205AD, TO-39-3 Metal Can |
| Supplier Device Package | TO-39 (TO-205AD) |
| Base Product Number | 2N3501 |

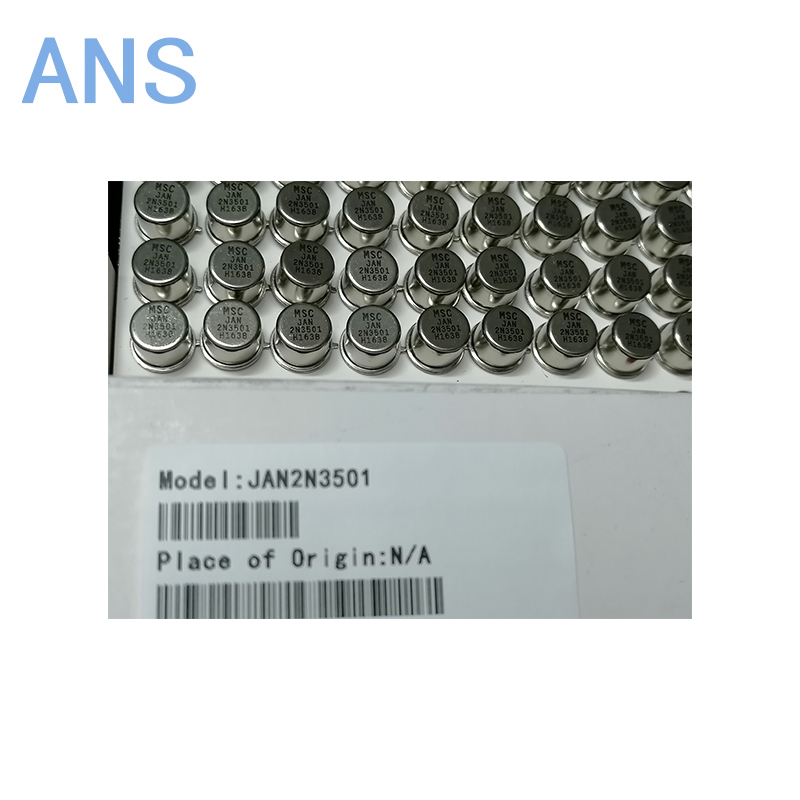

Actual product photos
