Product Descriptions
The 74HC1G14; 74HCT1G14 is a single inverter with Schmitt-trigger input. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC. Schmitt trigger inputs transform slowly changing input signals into sharply defined jitter-free output signals.
Product Features
? Wide supply voltage range from 2.0 V to 6.0 V
? Symmetrical output impedance
? High noise immunity
? CMOS low power dissipation
? Unimited input rise and fall times
? Balanced propagation delays
? Latch-up performance exceeds 100 mA per JESD 78 Class II Level B
? Input levels:
? For 74HC1G14: CMOS level
? For 74HCT1G14: TTL level
? Complies with JEDEC standards:
? JESD8C (2.7 V to 3.6 V)
? JESD7A (2.0 V to 6.0 V)
? ESD protection:
? HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000 V
? CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000 V
? Specified from -40 °C to +85° C and -40° C to +125 °C
Product Applications
? Wave and pulse shapers
? Astable multivibrators
? Monostable multivibrators
Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-74HC1G14GW |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Gates and Inverters | |
| Mfr | Nexperia USA Inc. |
| Series | 74HC |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel? | |
| Product Status | Active |
| Logic Type | Inverter |
| Number of Circuits | 1 |
| Number of Inputs | 1 |
| Features | Schmitt Trigger |
| Voltage - Supply | 2V ~ 6V |
| Current - Quiescent (Max) | 20 μA |
| Current - Output High, Low | 2.6mA, 2.6mA |
| Input Logic Level - Low | 0.3V ~ 1.2V |
| Input Logic Level - High | 1.5V ~ 4.2V |
| Max Propagation Delay @ V, Max CL | 32ns @ 6V, 50pF |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 5-TSSOP |
| Package / Case | 5-TSSOP, SC-70-5, SOT-353 |
| Base Product Number | 74HC1G14 |

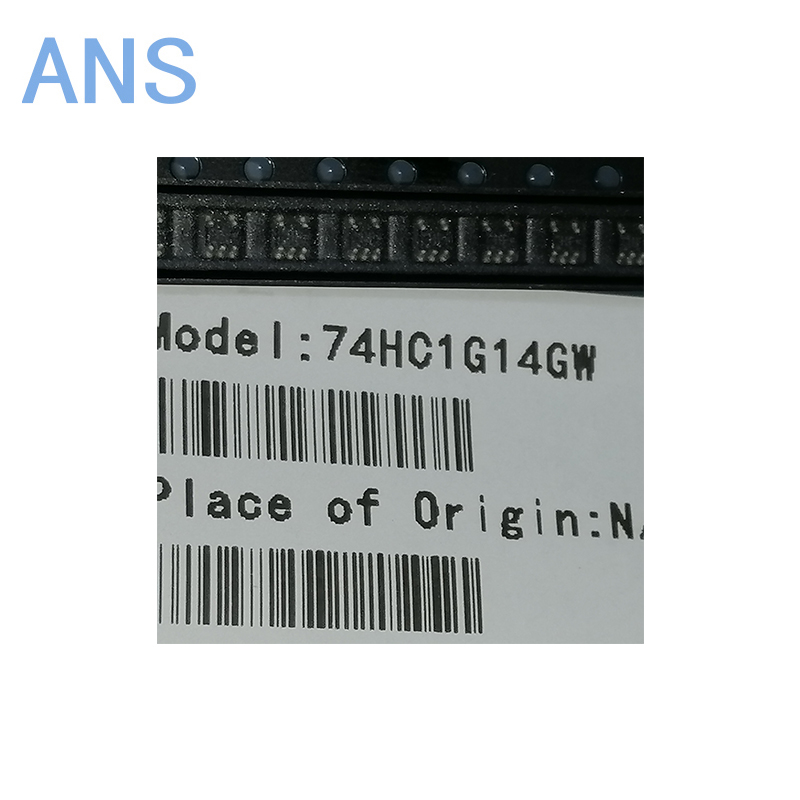

Actual product photos

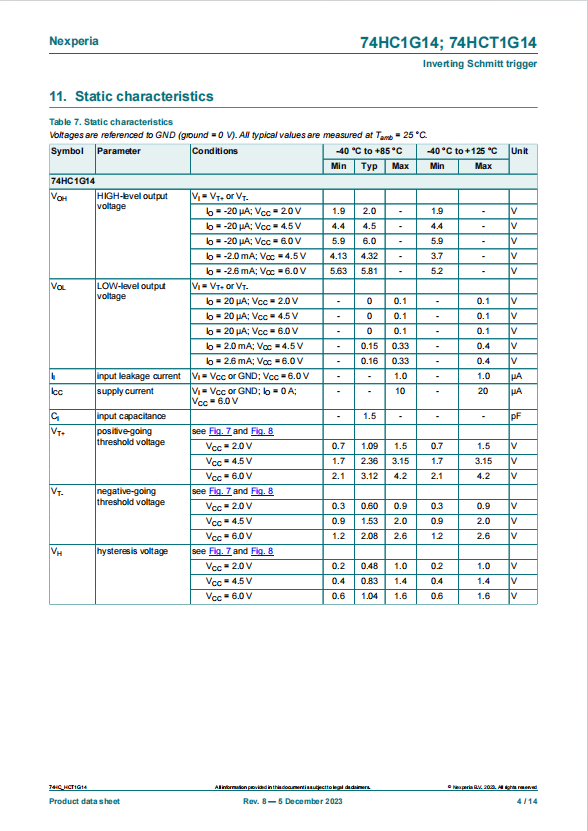

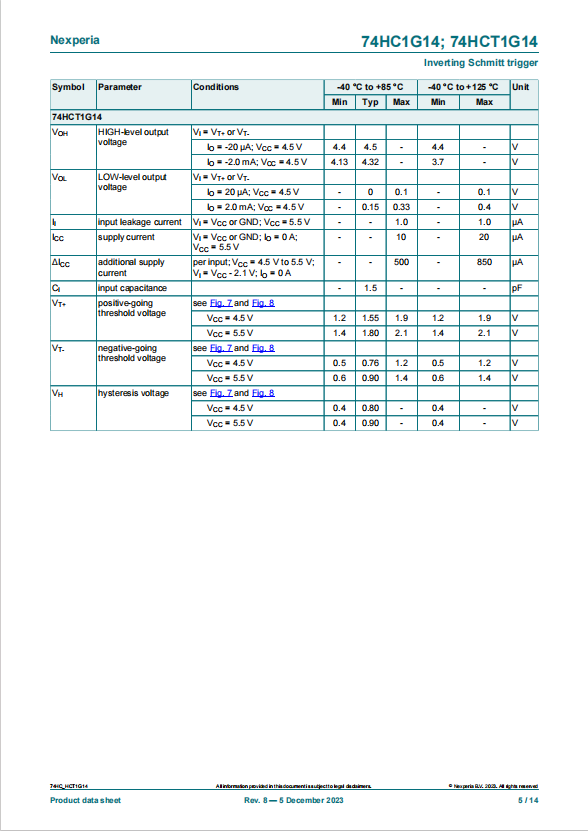

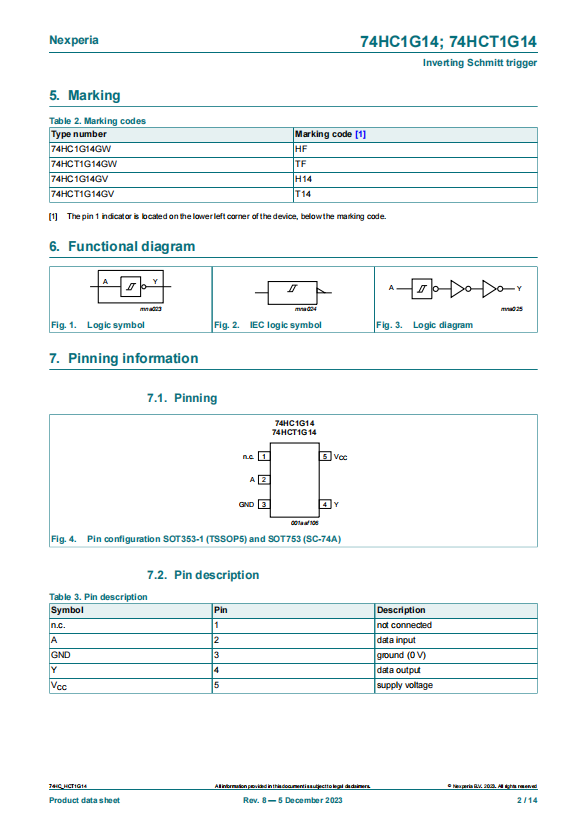

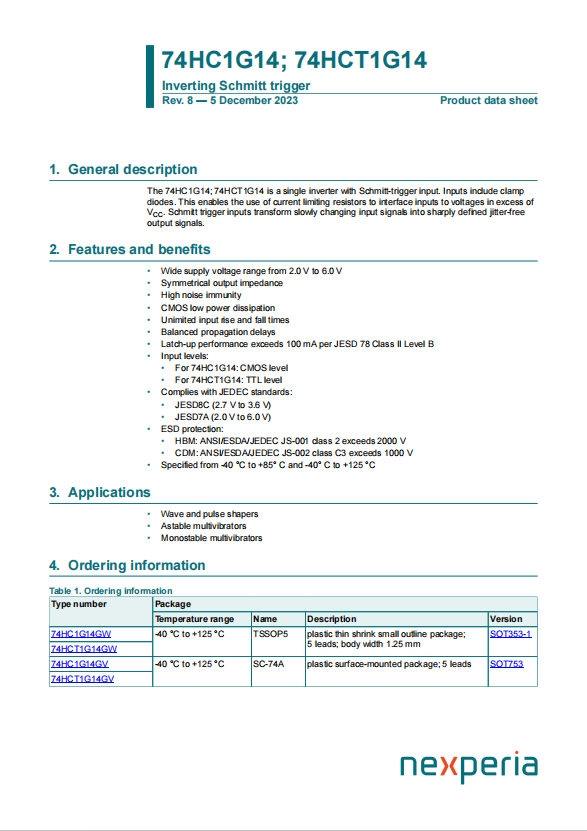

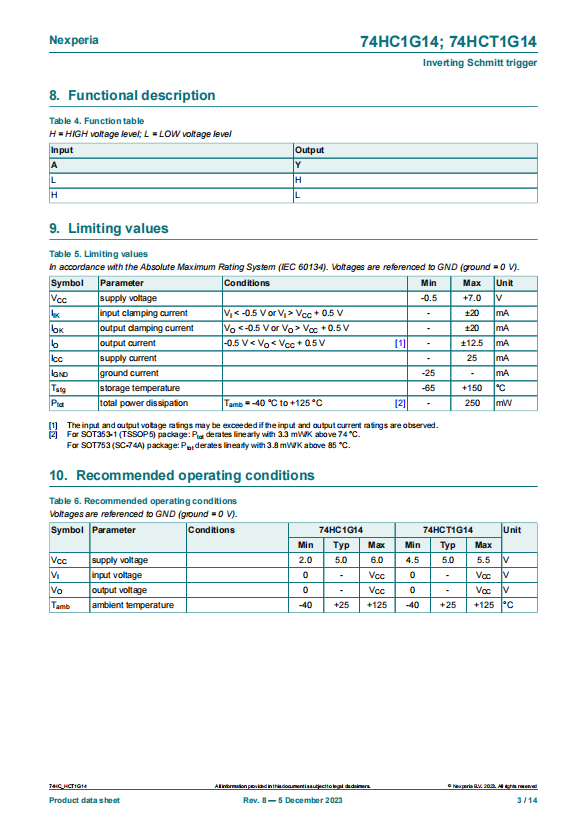

Product Data Book：
For more product information, please download the PDF
