Product Mechanical Data
? Package: SOT23
? Package Material: Molded Plastic.
UL Flammability Classification Rating 94V-0
? Moisture Sensitivity: Level 1 per J-STD-020
? Terminals: Solderable per MIL-STD-202, Method 208
? Lead-Free Plating (Matte Tin Finish Annealed over Alloy 42 Leadframe).
? Polarity: See Diagram
? Weight: 0.008 grams (Approximate)
Product Features
? Fast Switching Speed
? Surface Mount Package Ideally Suited for Automated Insertion
? For General-Purpose Switching Applications
? High Conductance
? Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
? Halogen and Antimony Free. “Green” Device (Note 3)
? The DIODES? BAS20Q and DIODES? BAS21Q are suitable for automotive applications requiring specific change control; these parts are AEC-Q101 qualified, PPAP capable, and manufactured in IATF 16949 certified facilities.
Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-BAS21-7-F |
| Category | Discrete Semiconductor Products |
| Diodes | |
| Rectifiers | |
| Single Diodes | |
| Mfr | Diodes Incorporated |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel? | |
| Product Status | Active |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) | 200 V |
| Current - Average Rectified (Io) | 200mA |
| Voltage - Forward (Vf) (Max) @ If | 1.25 V @ 200 mA |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | 50 ns |
| Current - Reverse Leakage @ Vr | 100 nA @ 200 V |
| Capacitance @ Vr, F | 5pF @ 0V, 1MHz |
| Mounting Type | Surface Mount |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SOT-23-3 |
| Operating Temperature - Junction | -65°C ~ 150°C |
| Base Product Number | BAS21 |

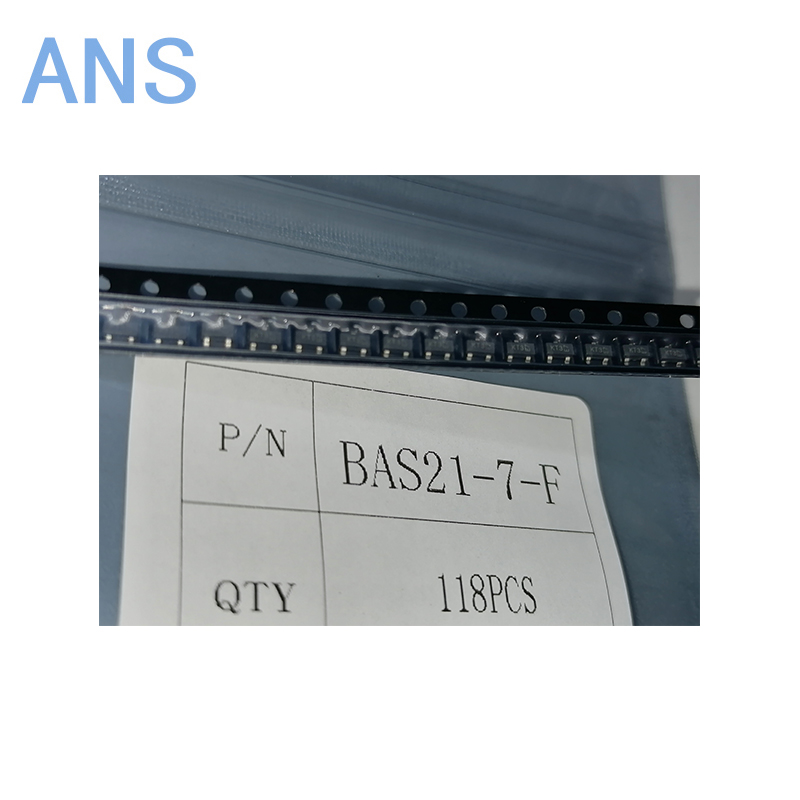

Actual product photos

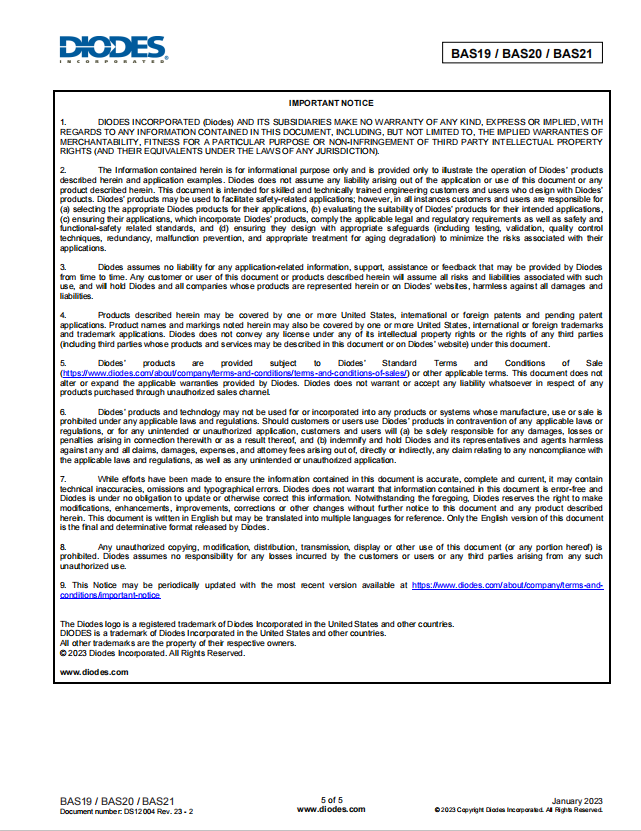

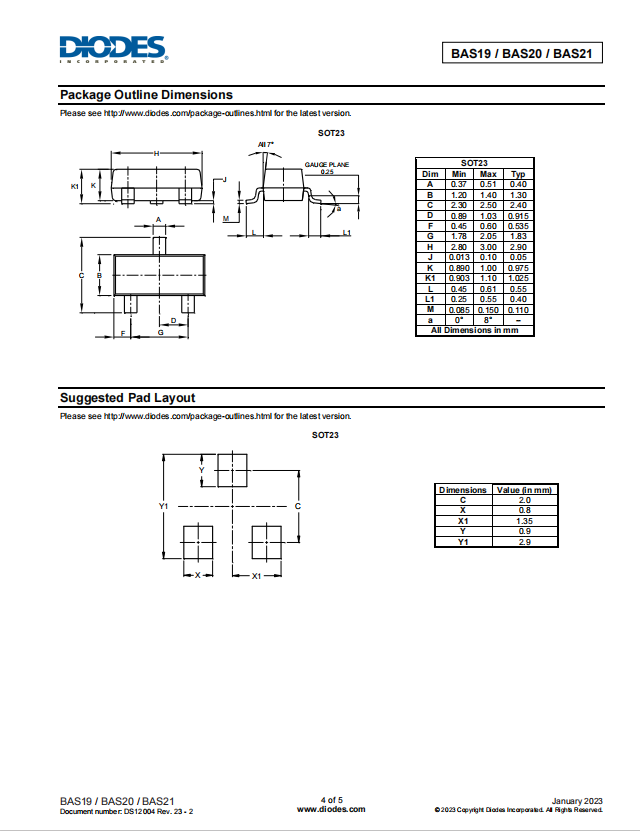

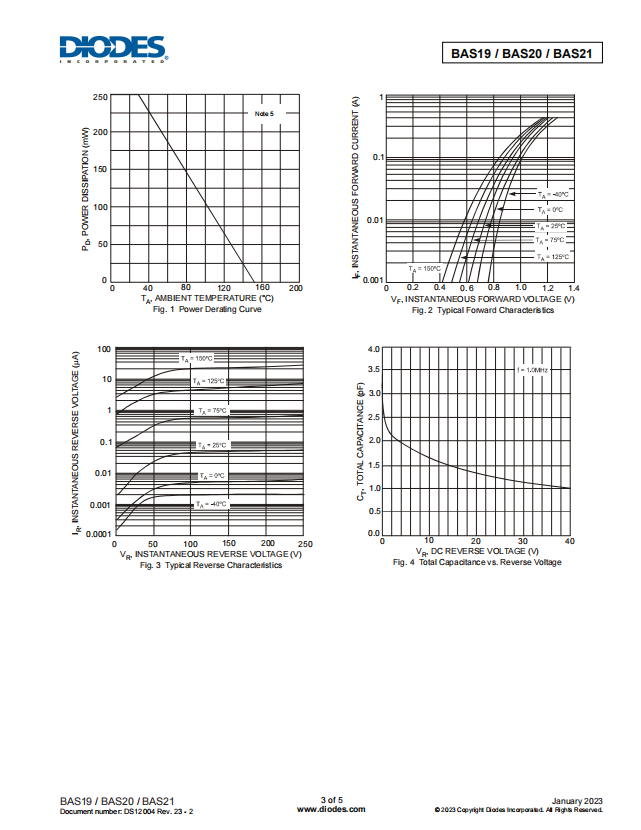

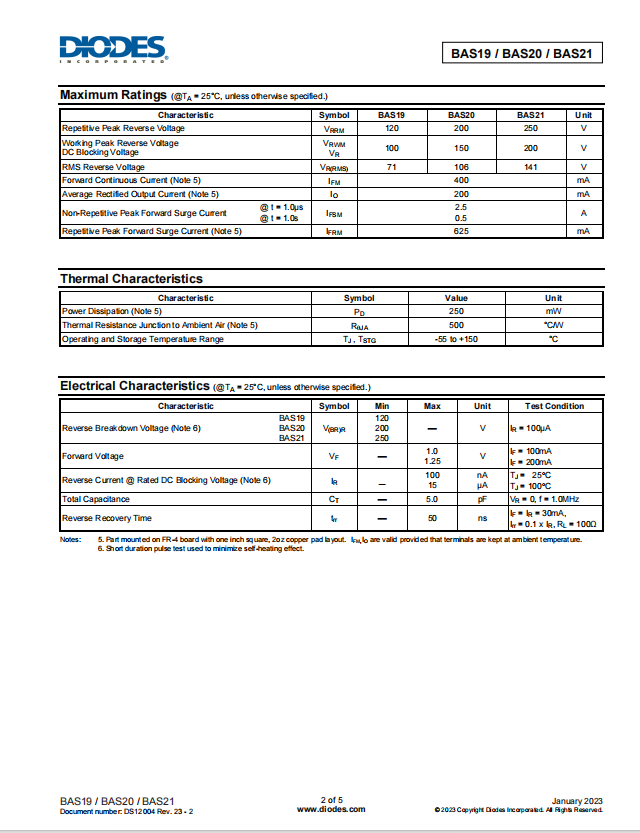

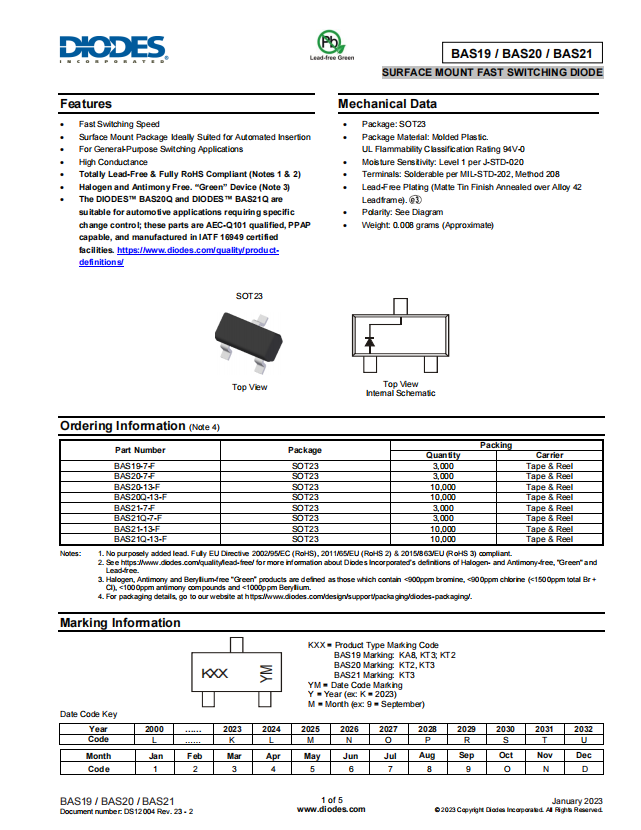

Product Data Book：
