A. Overview
The ON Semiconductor MMUN2232LT1G is a 3-pin SOT-23 (TO236) NPN digital transistor. A single digital transistor and its external resistor bias network are intended to be replaced.
B. Features
The base input resistor is 10Kohm
The base-emitter resistor is 10kohm
Collector emitter voltage VCEO of 50VDC
Simplifies circuit design
Compact board space
Reduced component count
AEC-Q101 qualified
The continuous collector current of 100mAdc
C. Applications
Industrial
Portable Devices
Consumer Electronics
Power Management
Product Description
ansc Part # | ANSC- MMUN2233LT1G |
Part# | MMUN2233LT1G |
Type： | Transistor |
Manufactor | ONSEMI |
DC | new |
Package / Case | SOT23 |
Supplier Device Package | Tape & Reel (TR)Cut Tape (CT) |
Description | TRANS PREBIAS NPN 50V SOT23-3 |

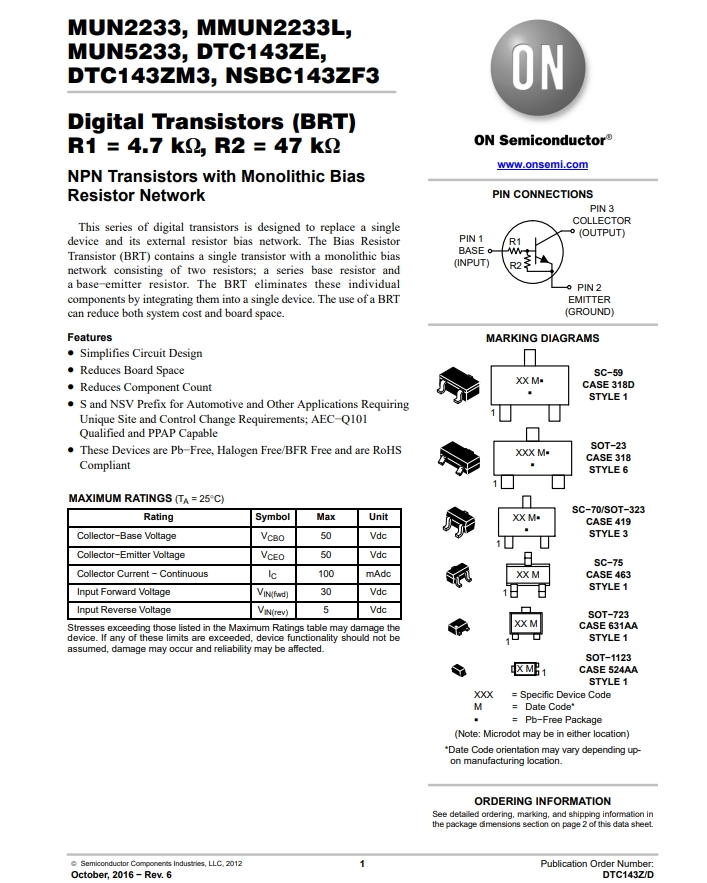

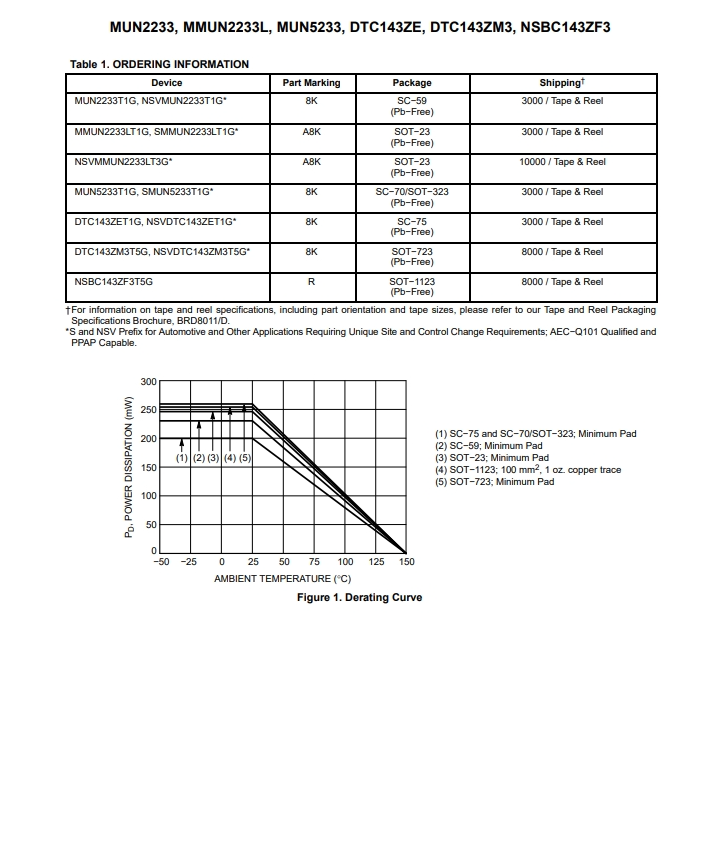

Actual image of the product
Specifications
TYPE | DESCRIPTION |
Category | Discrete Semiconductor Products |
Transistors | |
Bipolar (BJT) | |
Single, Pre-Biased Bipolar Transistors | |
Mfr | onsemi |
Series | - |
Package | Tape & Reel (TR) |
Cut Tape (CT) | |
Digi-Reel廬 | |
Product Status | Active |
Transistor Type | NPN - Pre-Biased |
Current - Collector (Ic) (Max) | 100 mA |
Voltage - Collector Emitter Breakdown (Max) | 50 V |
Resistor - Base (R1) | 4.7 kOhms |
Resistor - Emitter Base (R2) | 47 kOhms |
DC Current Gain (hFE) (Min) @ Ic, Vce | 80 @ 5mA, 10V |
Vce Saturation (Max) @ Ib, Ic | 250mV @ 300碌A, 10mA |
Current - Collector Cutoff (Max) | 500nA |
Power - Max | 246 mW |
Mounting Type | Surface Mount |
Package / Case | TO-236-3, SC-59, SOT-23-3 |
Supplier Device Package | SOT-23-3 (TO-236) |
Base Product Number | MMUN2233 |
