A. Overview
The part is convenient to ship overseas because it is packed in a 14-DIP (0.300, 7.62mm). The advanced packaging method Tube provides high reliability. A NOR Gate logic principle governs its operation. Voltage 3V~18V is needed to ensure the part's full functionality. Operational temperature extended around -55°C~125°C. Mounted in Through Hole. Output current is 3.4mA 3.4mA in the high and low states. 4000B is the series it belongs to. The total number of terminations is 14. There are 4 functions that significantly improve the user experience. Try searching with CD4001 to find device variants. A total of 14 pins are injected into the body of the part. Logic devices with Through Hole mounting are widely used in many applications. Datasheets for functions of 14 pins are available. Inputs are limited to 2. Quiescent parts have 5μA current flowing through them. There is 50pF load capacitance on the part. To supply the device, it requires a voltage of 3V. Its output current is rated at 6.8mA. There are 1 outputs on the device. In standby mode, there is 1μA maximum current. With its 4 channels, the part provides high quality logic output.
B. Features
NOR Gate Logic Type
Operating Temperature: -55°C~125°C
Quiescent Current: 5μA
Output Current: 6.8mA
C. Applications
There are a lot of Texas Instruments
CD4001BE Gates and Inverters applications.
Electric grinding wheel
Electrical tools
Sewing machine
DVD
VCD
Computer
Television
Washing machine
Range hood
Refrigerator
Product Description
|
ansc Part # |
ANSC- CD4001BE |
|
Part# |
CD4001BE |
|
Type： |
Integrated Circuits (ICs) |
|
Manufactor |
TI |
|
DC |
new |
|
Package / Case |
PDIP-14 |
|
Supplier Device Package |
Tube |
|
Description |
IC GATE NOR 4CH 2-INP 14DIP |

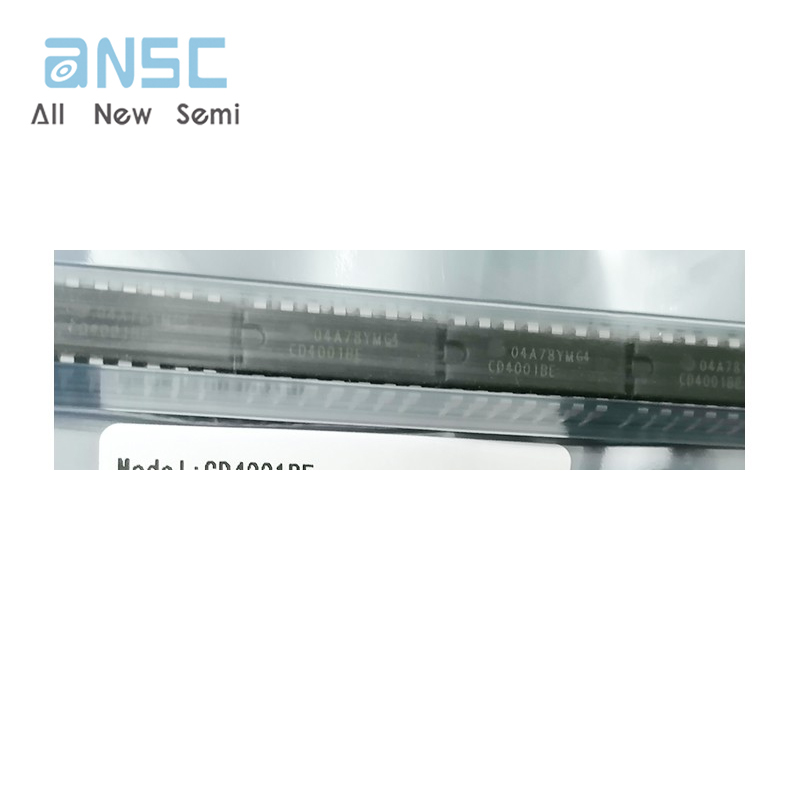

Actual image of the product
Specifications
|
TYPE |
DESCRIPTION |
|
Category |
Integrated Circuits (ICs) |
|
Logic |
|
|
Gates and Inverters |
|
|
Mfr |
Texas Instruments |
|
Series |
- |
|
Package |
Tube |
|
Product Status |
Active |
|
Logic Type |
NOR Gate |
|
Number of Circuits |
4 |
|
Number of Inputs |
2 |
|
Features |
- |
|
Voltage - Supply |
3V ~ 18V |
|
Current - Quiescent (Max) |
1 碌A |
|
Current - Output High, Low |
3.4mA, 3.4mA |
|
Input Logic Level - Low |
1.5V ~ 4V |
|
Input Logic Level - High |
3.5V ~ 11V |
|
Max Propagation Delay @ V, Max CL |
90ns @ 15V, 50pF |
|
Operating Temperature |
-55擄C ~ 125擄C |
|
Mounting Type |
Through Hole |
|
Supplier Device Package |
14-PDIP |
|
Package / Case |
14-DIP (0.300", 7.62mm) |
|
Base Product Number |
CD4001 |

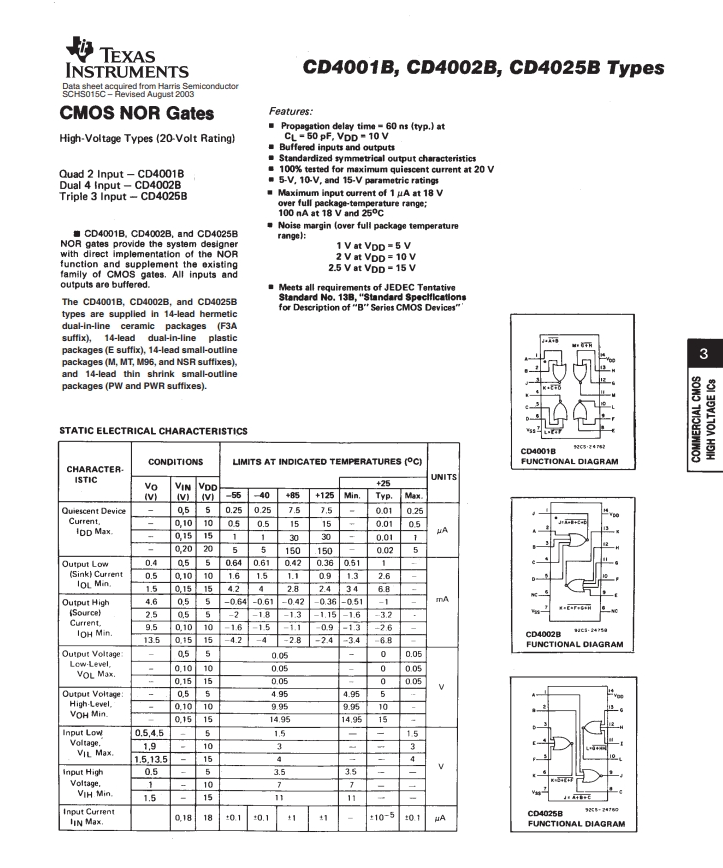

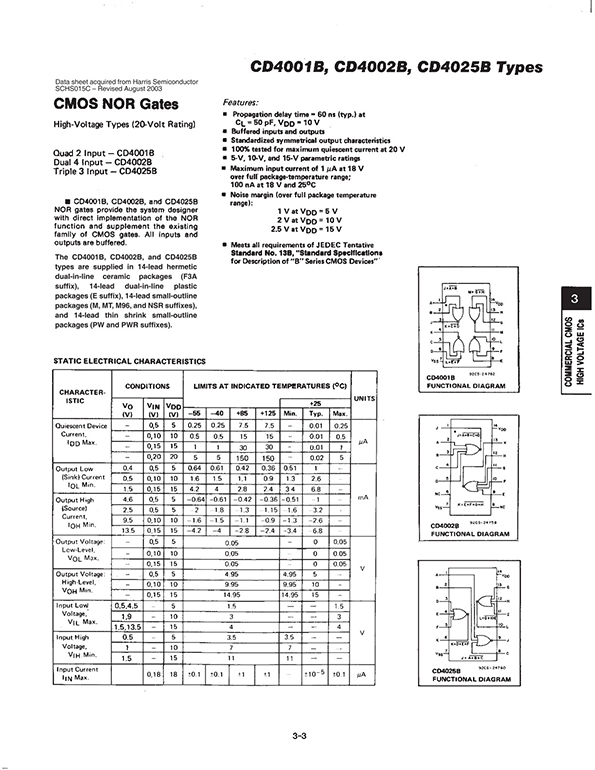

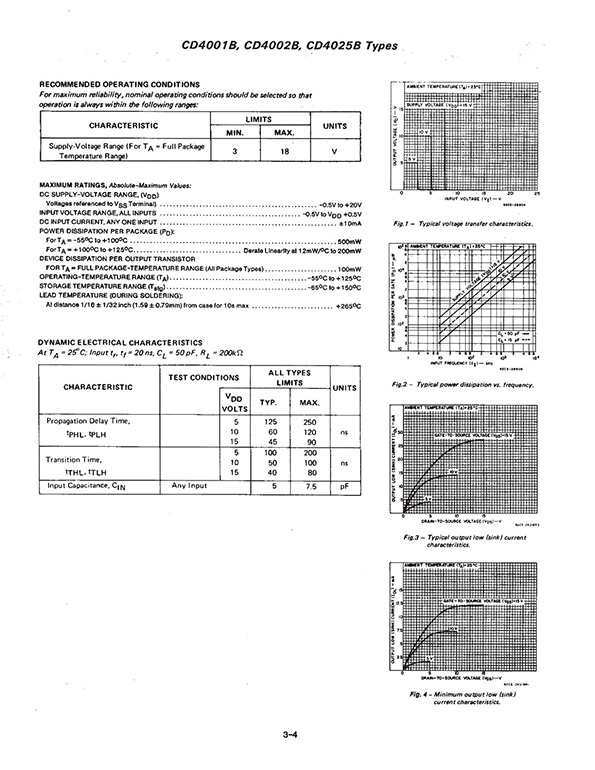

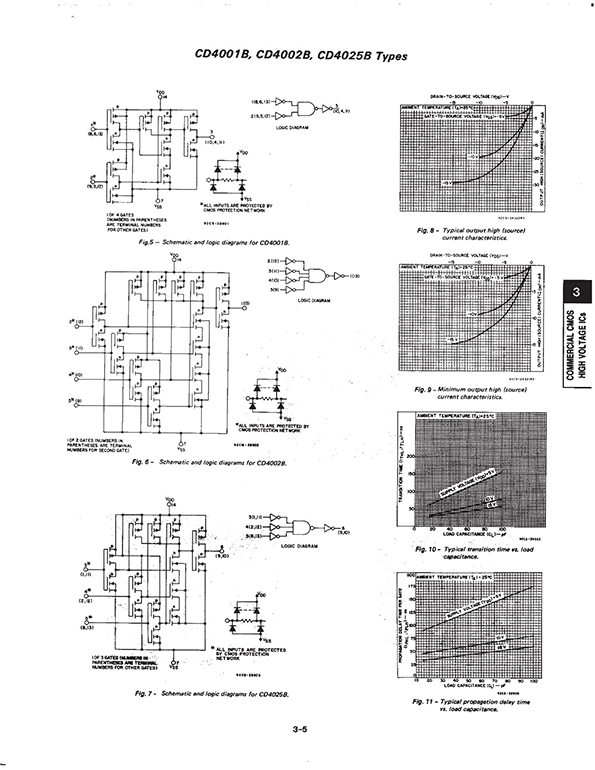

Product Data Book
