Product Features
? BVCEO > -20V
? IC = -1.5A Continuous Collector Current
? ICM = -6A Peak Pulse Current
? Low Saturation Voltage VCE(sat) < -200mV @ -1A
? RCE(SAT) = 97mΩ for a low equivalent on-resistance
? 625mW power dissipation
? hFE characterized up to -6A for high current gain hold-up
? Complementary NPN Type: FMMT618
? Totally Lead-Free & Fully RoHS compliant (Notes 1 & 2)
? Halogen- and Antimony-Free. “Green” Device (Note 3)
? For automotive applications requiring specific change control (i.e. parts qualified to AEC-Q100/101/200, PPAP capable, and manufactured in IATF 16949 certified facilities), please contact us or your local Diodes representative. https://www.diodes.com/quality/product-definitions/
? An Automotive-Compliant Part Is Available Under Separate Datasheet (FMMT718Q)
Product Applications
? Gate Driving MOSFETs and IGBTs
? DC-DC Converters
? Charging circuit
? Power switches
Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-FMMT718TA |
| Category | Discrete Semiconductor Products |
| Transistors | |
| Bipolar (BJT) | |
| Single Bipolar Transistors | |
| Mfr | Diodes Incorporated |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel? | |
| Product Status | Active |
| Transistor Type | PNP |
| Current - Collector (Ic) (Max) | 1.5 A |
| Voltage - Collector Emitter Breakdown (Max) | 20 V |
| Vce Saturation (Max) @ Ib, Ic | 220mV @ 50mA, 1.5A |
| Current - Collector Cutoff (Max) | 100nA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 300 @ 100mA, 2V |
| Power - Max | 625 mW |
| Frequency - Transition | 180MHz |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SOT-23-3 |
| Base Product Number | FMMT718 |

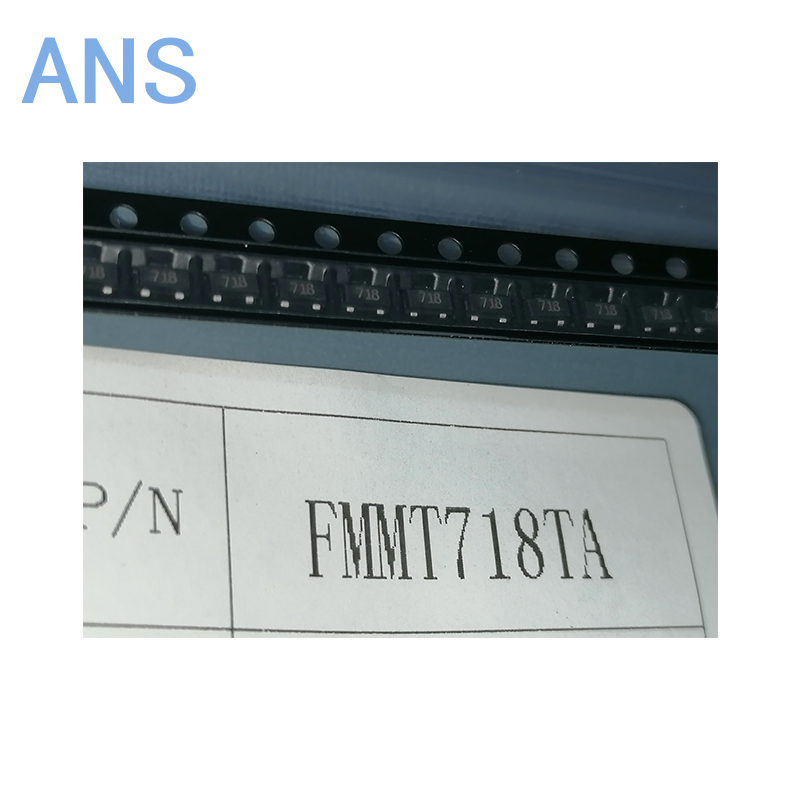

Actual product photos

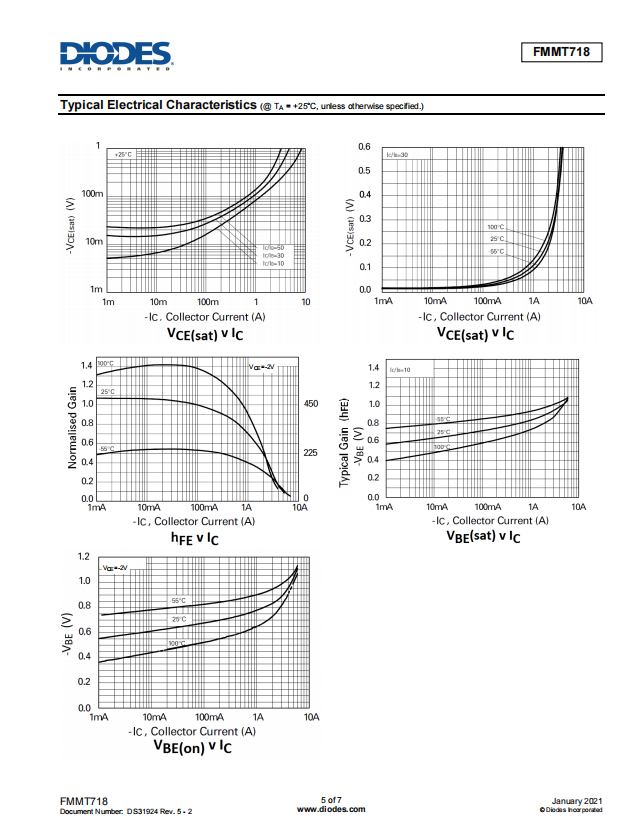

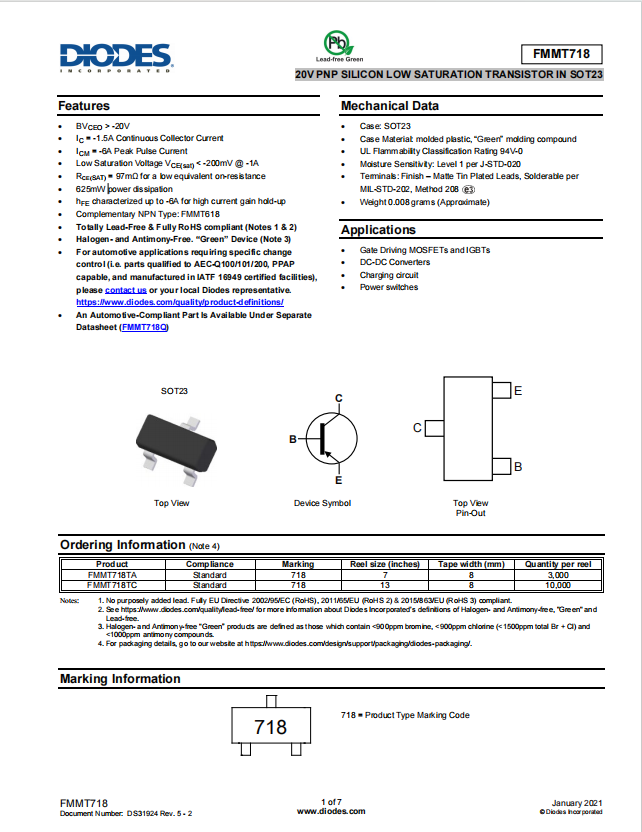

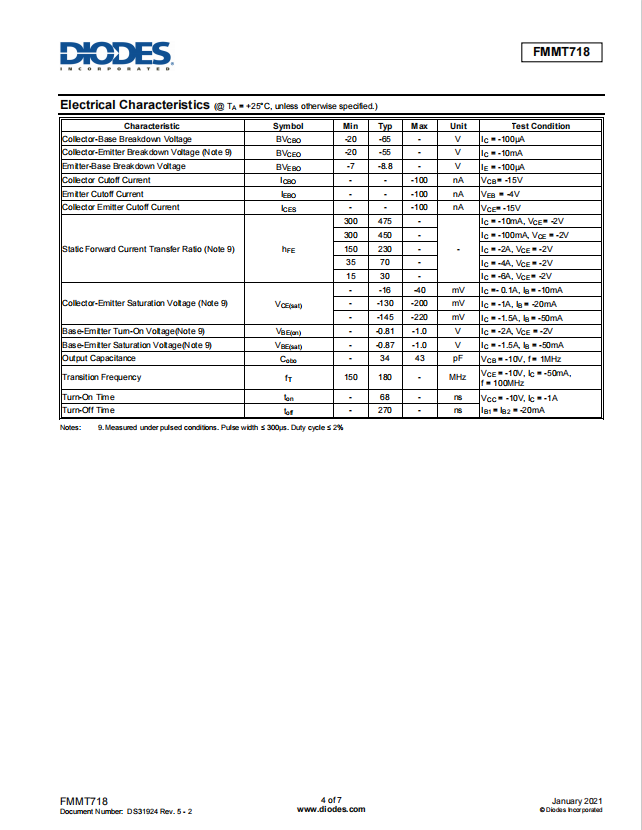

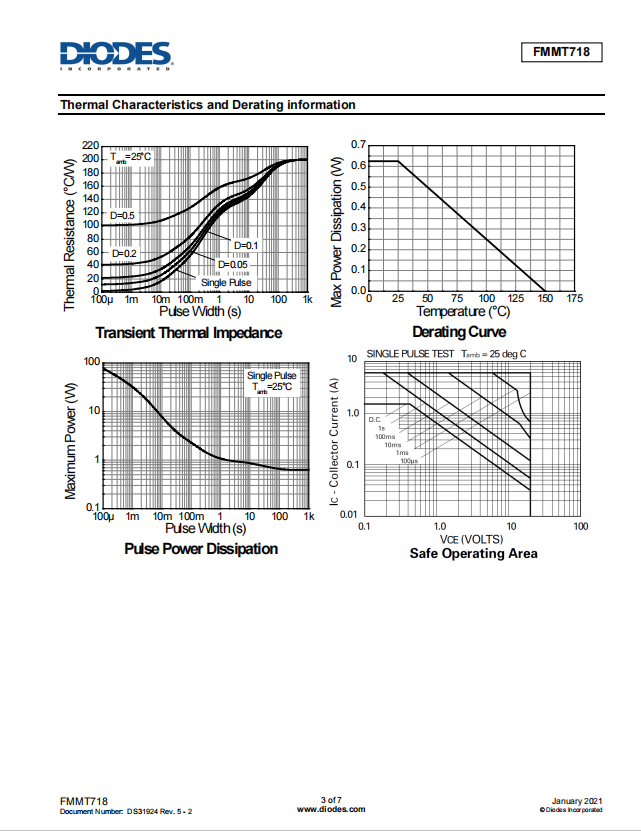

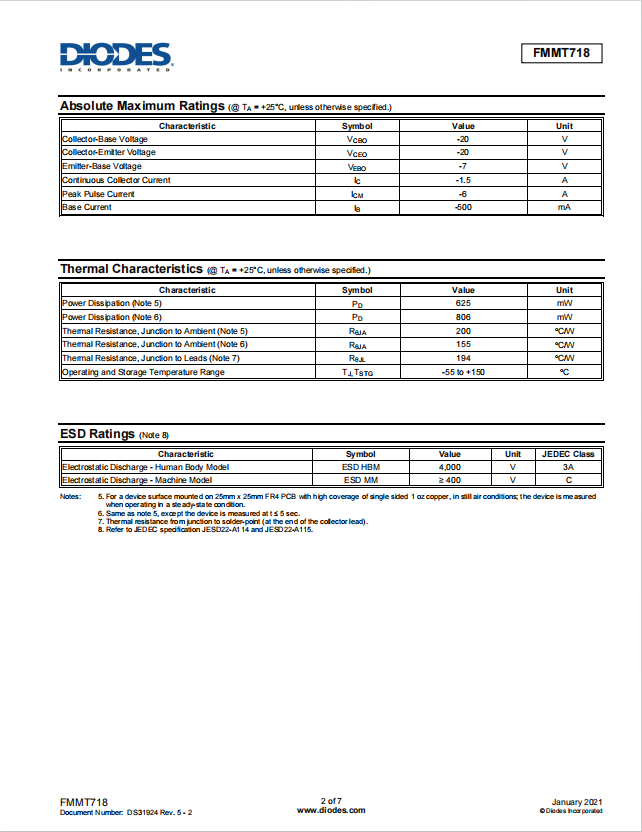

Product Data Book：
For more product information, please download the PDF
