A. Overview

Reverse voltages of 40V are reasonable.A rectified current of 5A volts is averaged for this device.A value of 5A is the maximum forward current that can be allowed.This fuse has a current rating of 5A, which is the maximum current that will not deteriorate the fuse element over a long period.A device that has a capacitance of 300pF can provide a value of 300pF.As indicated by the data chart in the datasheets, the peak reverse is 500μA.

B. Features

an average rectified current of 5A volts

a current rating of 5A

the peak reverse is 500μA

C. Applications

There are a lot of Diodes Incorporated

B540C-13-F applications of single-phase diode rectifier.

DC motor control and drives

Battery chargers

Welders

Power converters

Reverse Polarity Protection

Ultra High-Speed Switching

Freewheeling

Polarity Protection Diode

Recirculating Diode

Switching Diode

Product Description

B330-13-F

ansc Part #	ANSC- B540C-13-F
Part#	B540C-13-F
Type：	Diodes
Manufactor	Diodes Incorporated
DC	new
Package / Case	SMC
Supplier Device Package	Tape & Reel (TR)Cut Tape (CT)
Description	DIODE SCHOTTKY 40V 5A SMC

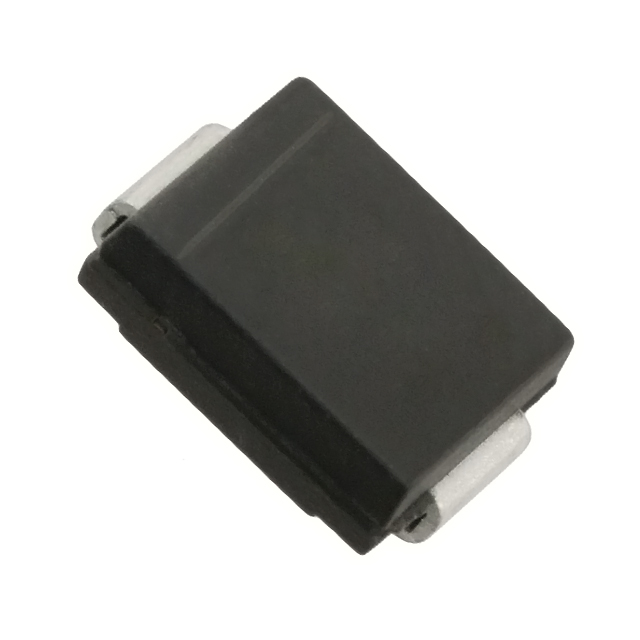

Actual image of the product

Specifications

TYPE	DESCRIPTION
Category	Discrete Semiconductor Products
	Diodes
	Rectifiers
	Single Diodes
Mfr	Diodes Incorporated
Series	-
Package	Tape & Reel (TR)
	Cut Tape (CT)
	Digi-Reel廬
Product Status	Active
Technology	Schottky
Voltage - DC Reverse (Vr) (Max)	40 V
Current - Average Rectified (Io)	5A
Voltage - Forward (Vf) (Max) @ If	550 mV @ 5 A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr	500 碌A @ 40 V
Capacitance @ Vr, F	300pF @ 4V, 1MHz
Mounting Type	Surface Mount
Package / Case	DO-214AB, SMC
Supplier Device Package	SMC
Operating Temperature - Junction	-55擄C ~ 150擄C
Base Product Number	B540
