Product Descriptions

The MAX1615/MAX1616 are micropower, SOT23-5 linear regulators that supply always-on, keep-alive power to CMOS RAM and microcontrollers (μCs) in systems with high-voltage batteries. Key features include wide input voltage range, low dropout voltage, and low quiescent supply current.

Despite a miserly 8μA (max) no-load supply current, the MAX1615/MAX1616 have excellent line-transient response and AC power-supply rejection ratio. They provide a clean, fixed 5V or 3.3V output (MAX1615) or an adjustable 1.24V to 28V output (MAX1616), even when subjected to fast supply-voltage changes that occur during the switchover from battery to AC adapter input power. The space-saving SOT23-5 package has excellent thermal characteristics and tolerates up to 571mW of power dissipation. Fault protection is provided by internal foldback current limiting and thermalshutdown circuitry. The MAX1615/MAX1616 are now available in lead-free packages.

Product Features

? 4V to 28V Input Range

? 8μA (max) Quiescent Supply Current

? <1μA Shutdown Supply Current

? 3.3V or 5V, Pin-Selectable Output (MAX1615)

      Adjustable 1.24V to 28V Output (MAX1616)

? 30mA Output Current

? ±2% Initial Output Accuracy

? Thermal-Overload Protection

? 5-Pin SOT23 Package

? Low Cost

Product Applications

? CMOS/RTC Backup Power

? Microcontroller Power

? Notebook Computers

? Smart-Battery Packs

? PDAs and Handy-Terminals

? Battery-Powered Systems

Specifications

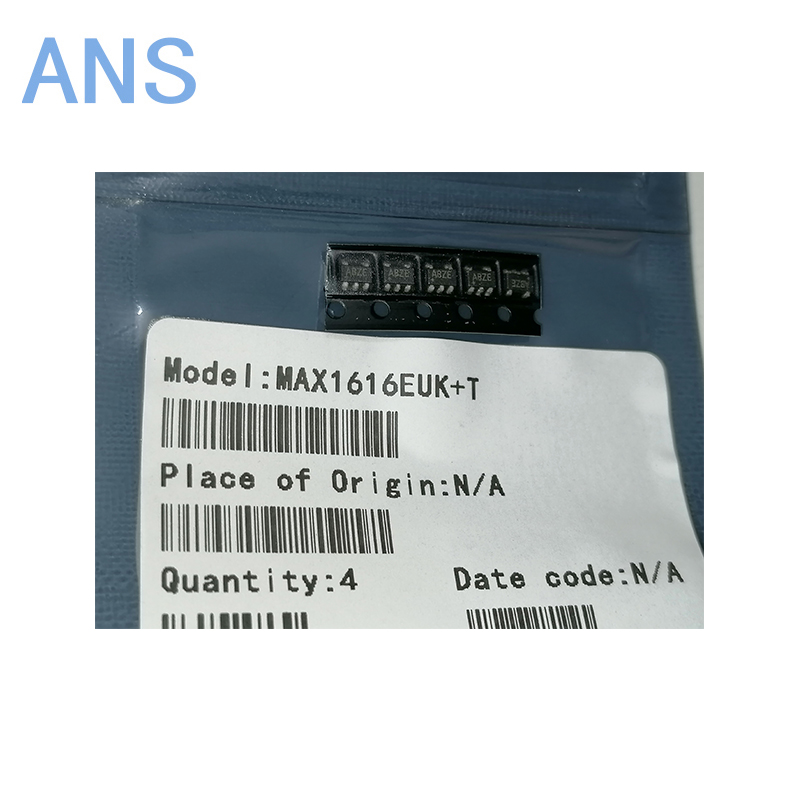

Actual product photos

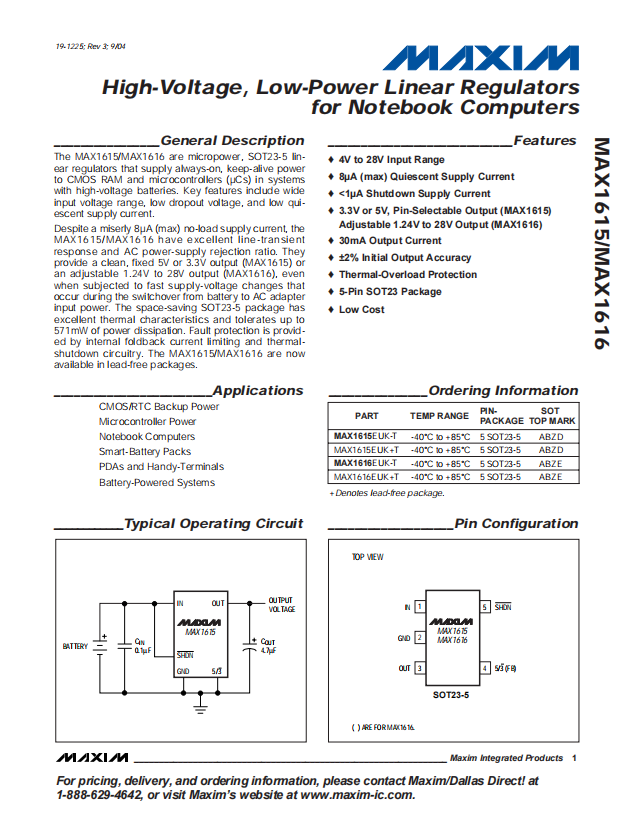

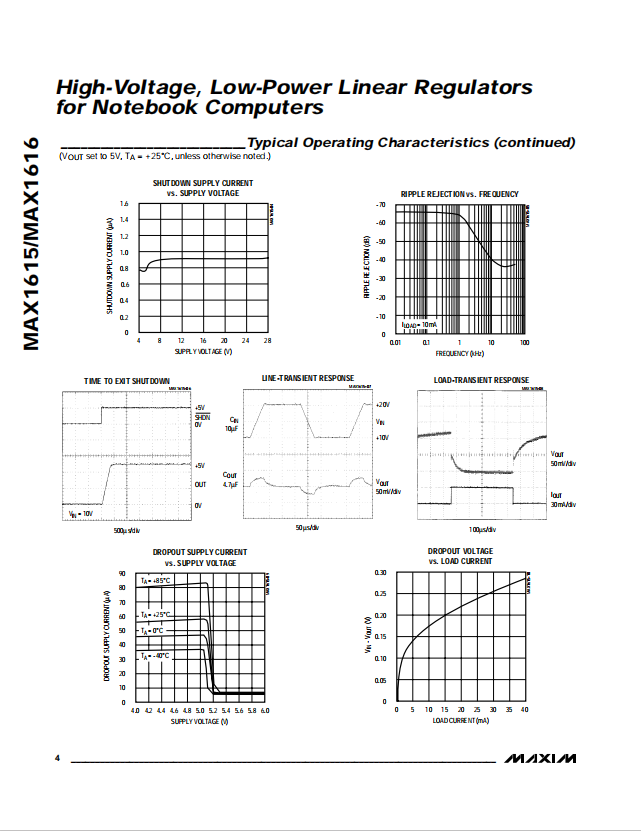

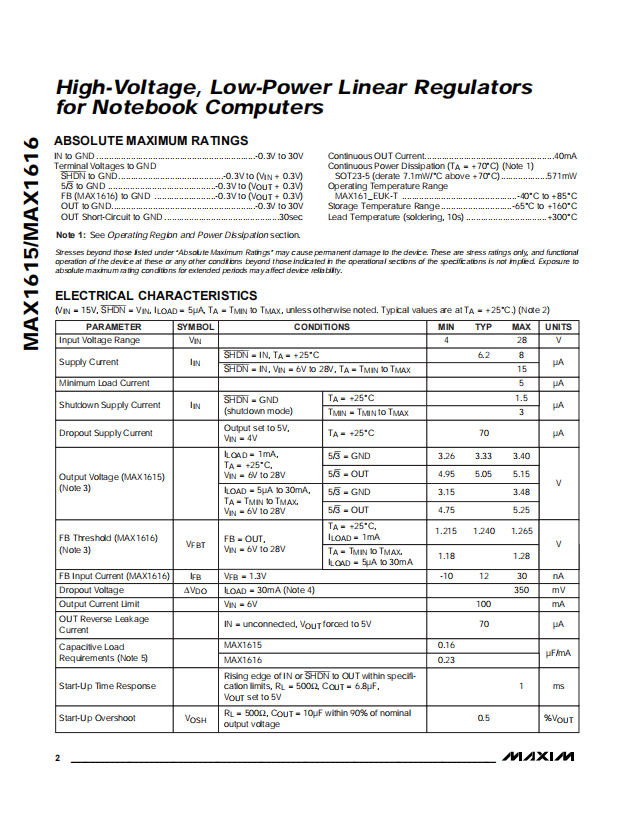

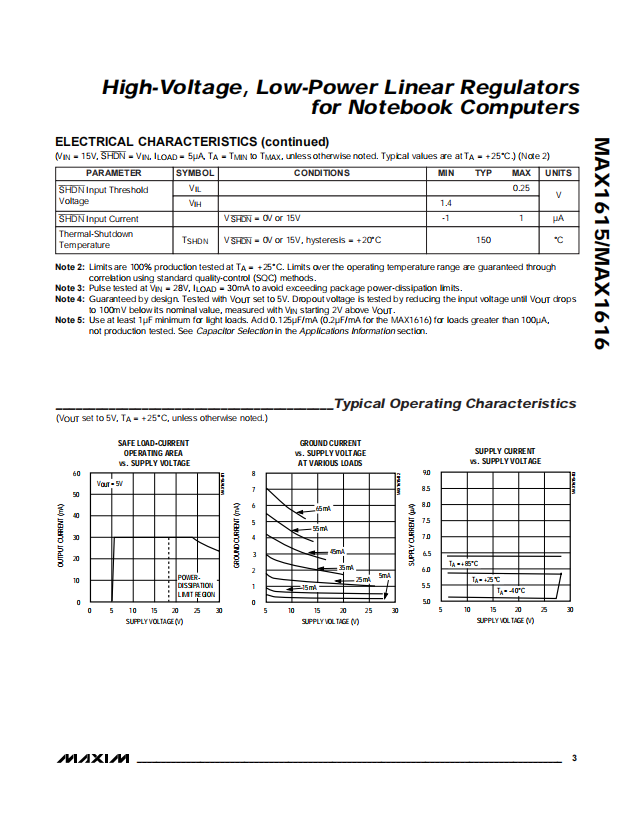

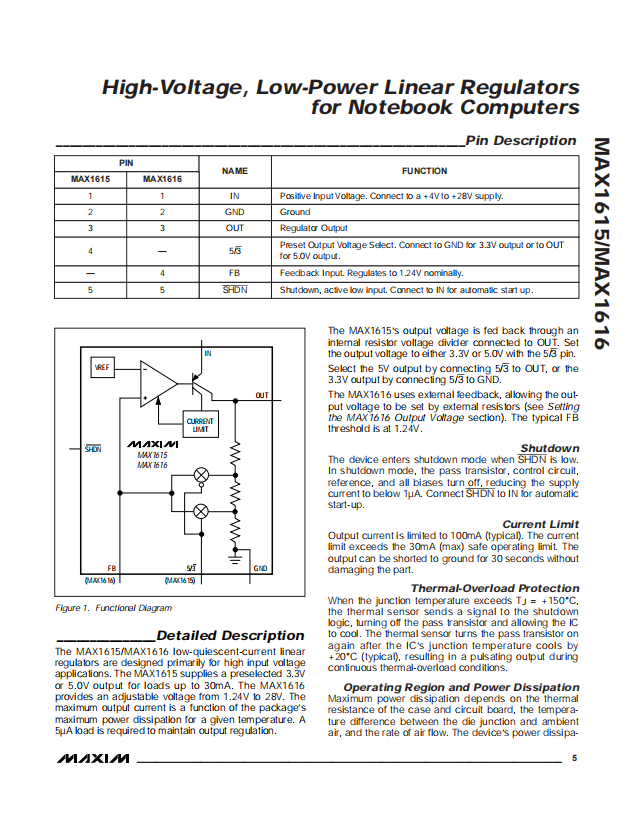

Product Data Book：

For more product information, please download the PDF
