Product Descriptions

The MCP4725 is a low-power, high accuracy, single channel, 12-bit buffered voltage output Digital-toAnalog Converter (DAC) with nonvolatile memory (EEPROM). Its on-board precision output amplifier allows it to achieve rail-to-rail analog output swing.

The DAC input and configuration data can be programmed to the nonvolatile memory (EEPROM) by the user using I2C interface command. The nonvolatile memory feature enables the DAC device to hold the DAC input code during power-off time, and the DAC output is available immediately after power-up. This feature is very useful when the DAC device is used as a supporting device for other devices in the network.

The device includes a Power-on-Reset (POR) circuit to ensure reliable power-up and an on-board charge pump for the EEPROM programming voltage. The DAC reference is driven from VDD directly. In powerdown mode, the output amplifier can be configured to present a known low, medium, or high resistance output load.

The MCP4725 has an external A0 address bit selection pin. This A0 pin can be tied to VDD or VSS of the user’s application board.

The MCP4725 has a two-wire I2C compatible serial interface for standard (100 kHz), fast (400 kHz), or high speed (3.4 MHz) mode.

The MCP4725 is an ideal DAC device where design simplicity and small footprint is desired, and for applications requiring the DAC device settings to be saved during power-off time.

The device is available in a small 6-pin SOT-23 and DFN package.

Product Features

? 12-Bit Resolution

? On-Board Nonvolatile Memory (EEPROM)

? ±0.2 LSB DNL (typical)

? External A0 Address Pin

? Normal or Power-Down Mode

? Fast Settling Time: 6 μs (typical)

? External Voltage Reference (VDD)

? Rail-to-Rail Output

? Low Power Consumption

? Single-Supply Operation: 2.7V to 5.5V

? I2C Interface:

   - Eight Available Addresses

   - Standard (100 kbps), Fast (400 kbps), and

     High-Speed (3.4 Mbps) Modes

? Small 6-Lead SOT-23 and DFN Package Options

? Extended Temperature Range: -40°C to +125°C

Product Applications

? Set Point or Offset Trimming

? Sensor Calibration

? Closed-Loop Servo Control

? Low Power Portable Instrumentation

? PC Peripherals

? Data Acquisition Systems

Specifications

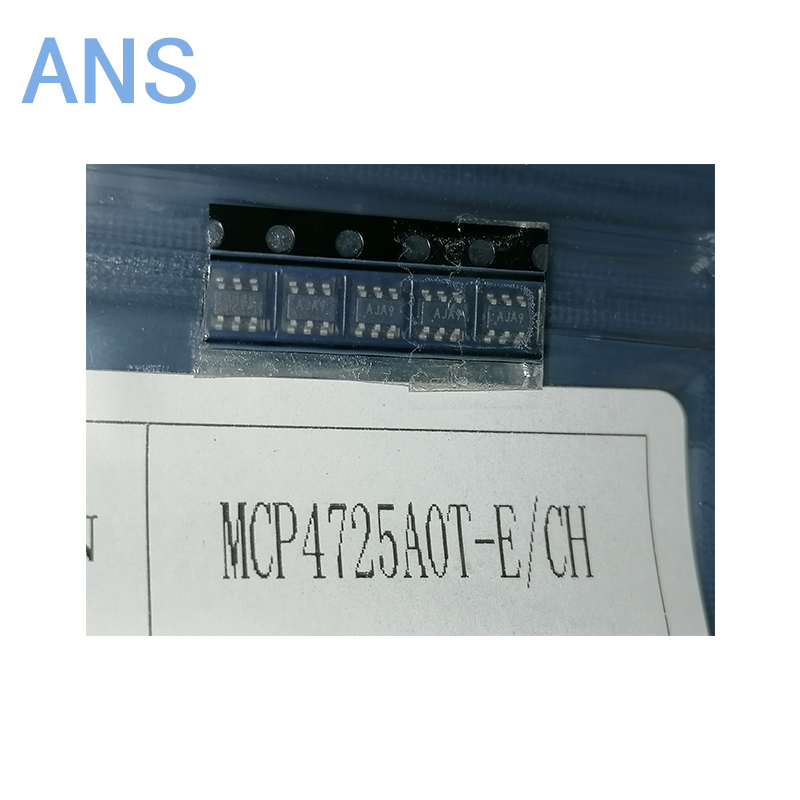

Actual product photos

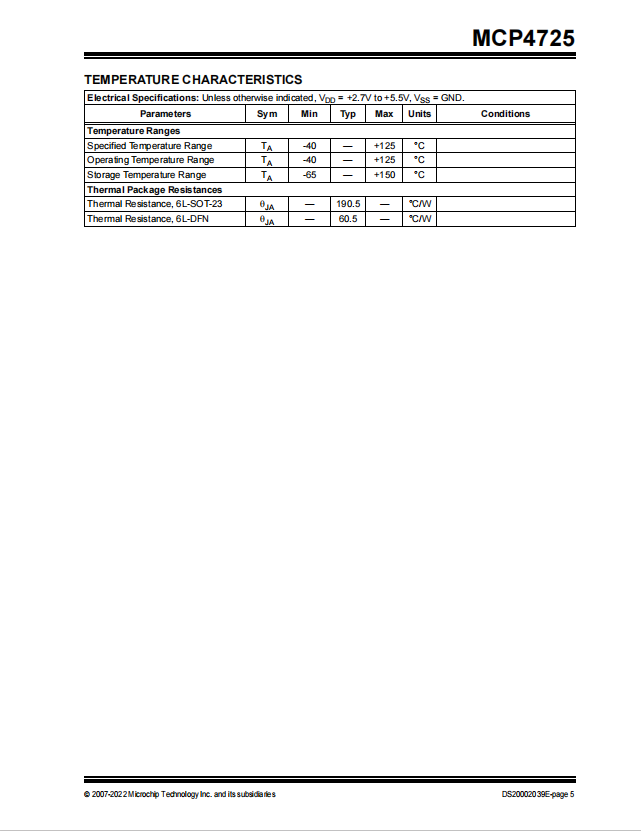

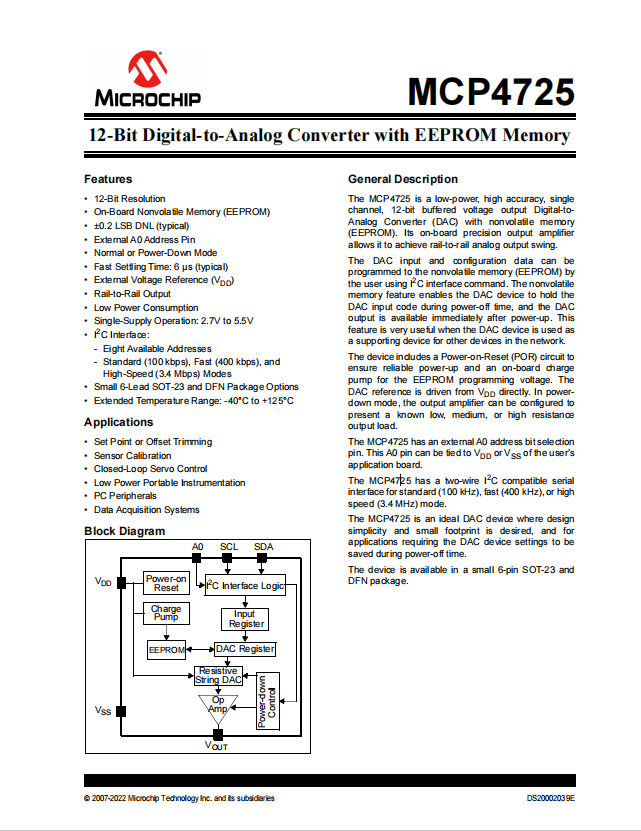

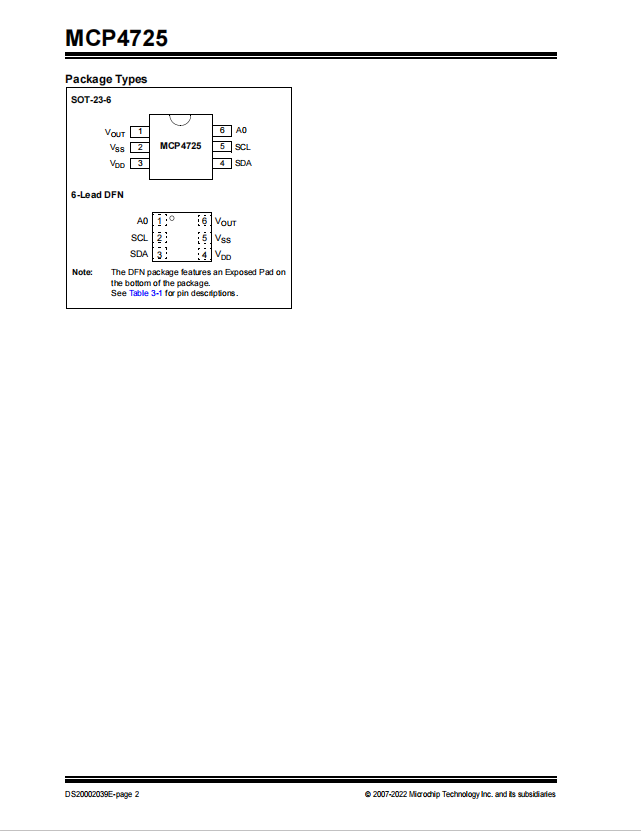

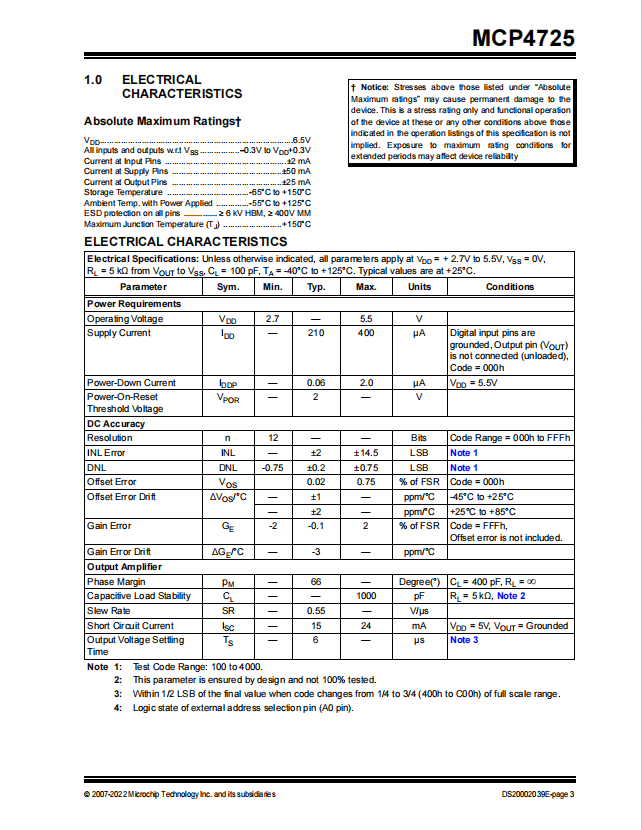

Product Data Book：

For more product information, please download the PDF
