Product Descriptions

The MIC5235 is a 150mA highly accurate, low dropout regulator with high input voltage and ultra-low ground current. This combination of high voltage and low ground current makes the MIC5235 ideal for USB and portable electronics applications, using 1-cell, 2-cell or 3-cell Li-Ion battery inputs.

A μCap LDO design, the MIC5235 is stable with either ceramic or tantalum output capacitor. It only requires a 2.2μF capacitor for stability.

Features of the MIC5235 includes enable input, thermal shutdown, current limit, reverse battery protection, and reverse leakage protection.

Available in fixed and adjustable output voltage versions, the MIC5235 is offered in the IttyBitty? SOT-23-5 package with a junction temperature range of –40°C to +125°C.

Product Features

? Wide input voltage range: 2.3V to 24V

? Ultra low ground current: 18μA

? Low dropout voltage: 310mV at 150mA

? High output accuracy: ±2.0% over temperature

? μCap: stable with ceramic or tantalum capacitors

? Excellent line and load regulation specifications

? Zero shutdown current

? Reverse battery protection

? Reverse leakage protection

? Thermal shutdown and current limit protection

? IttyBitty?SOT-23-5 package

? Adjustable output from 1.24V-20V

Product Applications

? USB power supply

? Cellular phones

? Keep-alive supply in notebook and portable computers

? Logic supply for high-voltage batteries

? Automotive electronics

? Battery powered systems

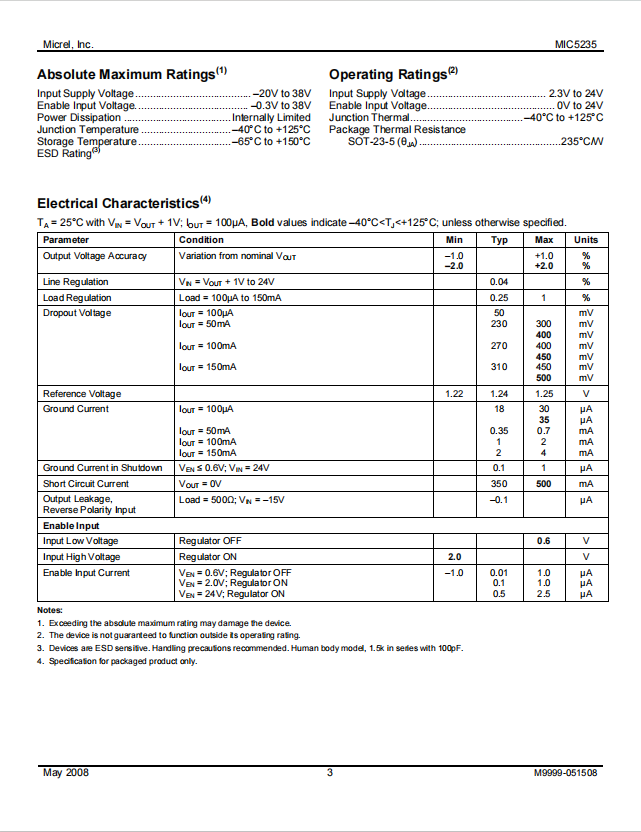

Specifications

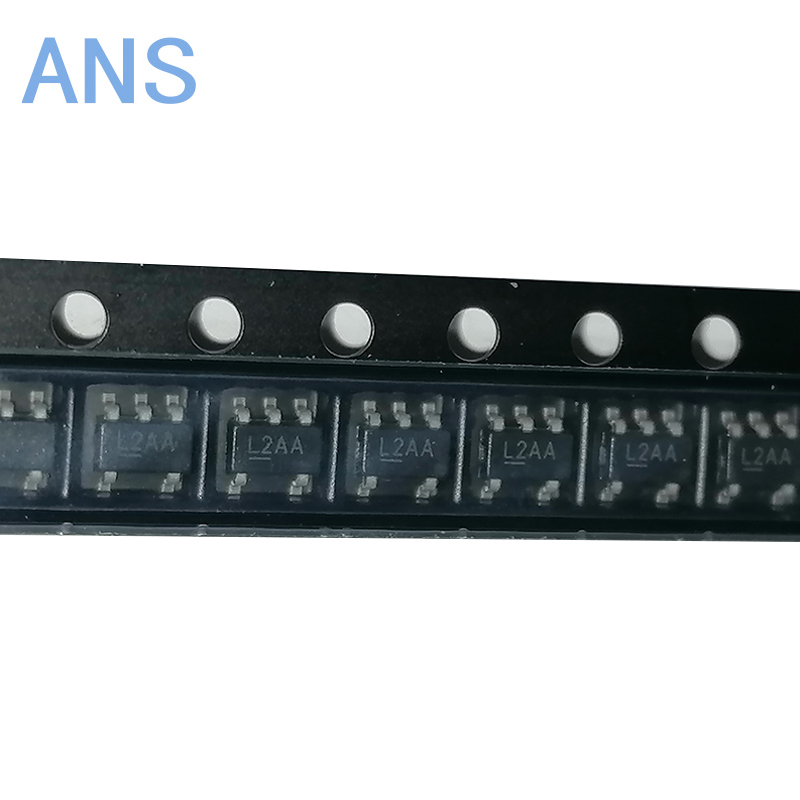

Actual product photos

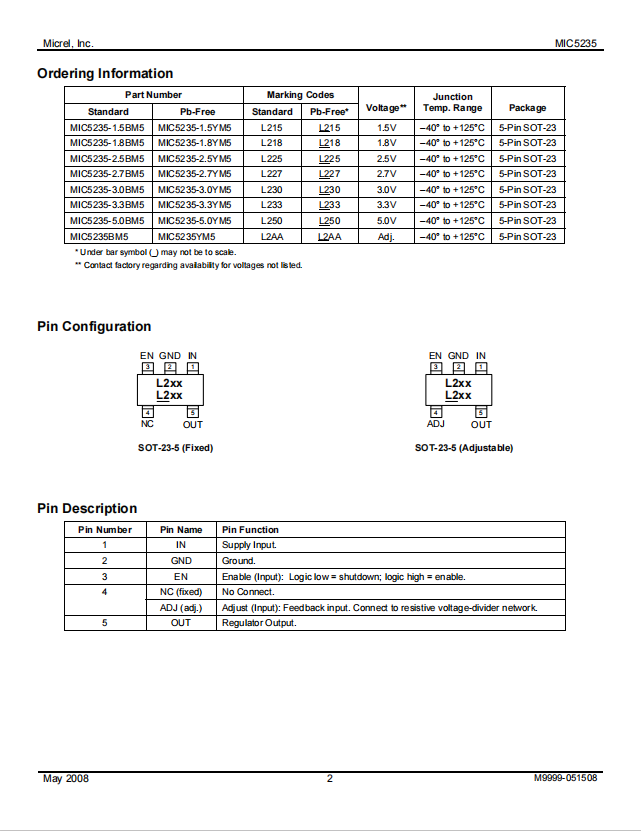

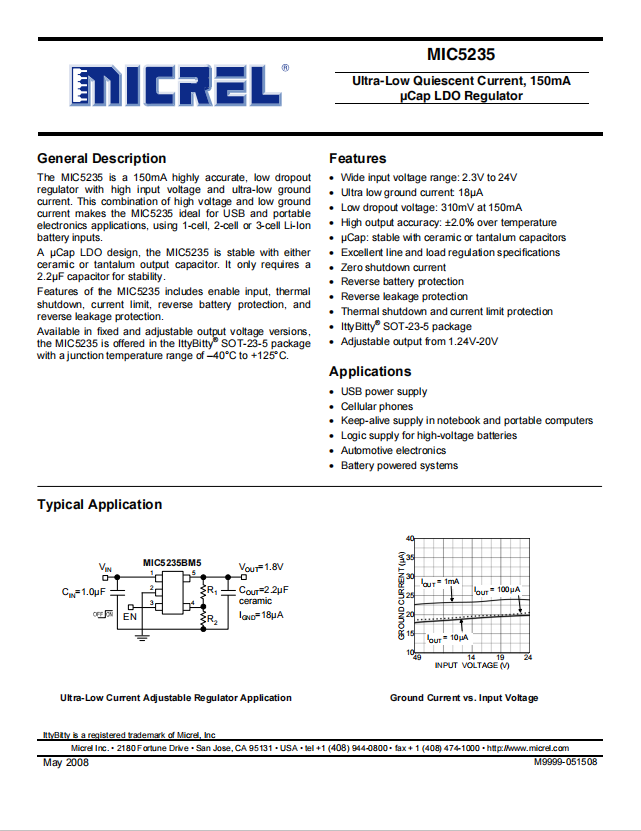

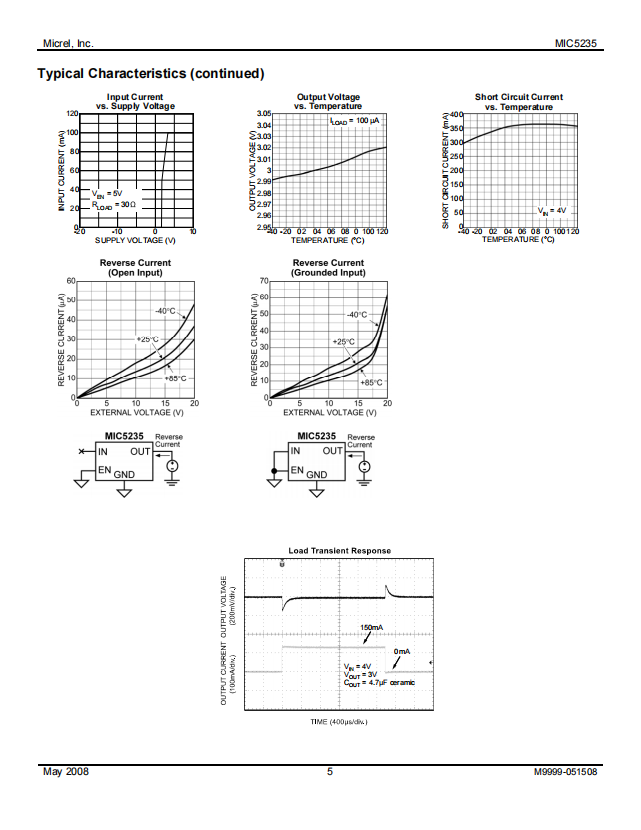

Product Data Book：

For more product information, please download the PDF
