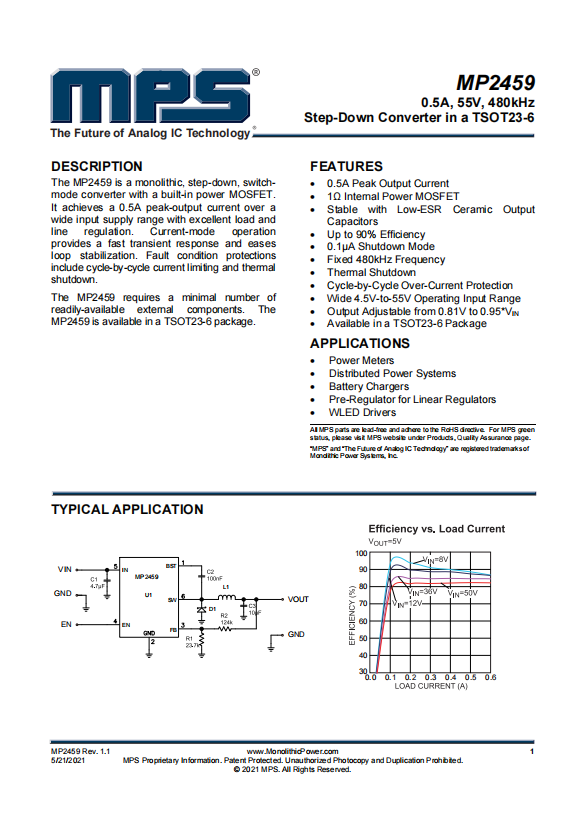

Product Descriptions
The MP2459 is a monolithic, step-down, switchmode converter with a built-in power MOSFET. It achieves a 0.5A peak-output current over a wide input supply range with excellent load and line regulation. Current-mode operation provides a fast transient response and eases loop stabilization. Fault condition protections include cycle-by-cycle current limiting and thermal shutdown.
The MP2459 requires a minimal number of readily-available external components. The MP2459 is available in a TSOT23-6 package.
Product Features
? 0.5A Peak Output Current
? 1ohm Internal Power MOSFET
? Stable with Low-ESR Ceramic Output Capacitors
? Up to 90 Efficiency
? 0.1uA Shutdown Mode
? Fixed 480kHz Frequency
? Thermal Shutdown
? Cycle-by-Cycle Over-Current Protection
? Wide 4.5V-to-55V Operating Input Range
? Output Adjustable from 0.81V to 0.95*VIN
? Available in a TSOT23-6 Package
Product Applications
? Power Meters
? Distributed Power Systems
? Battery Chargers
? Pre-Regulator for Linear Regulators
? WLED Drivers
Specifications
Attribute | Attribute value |
ANSM-Part# | ANSM-MP2459GJ-Z |
Category | Integrated Circuits (ICs) |
Power Management (PMIC) | |
Voltage Regulators - DC DC Switching Regulators | |
Mfr | Monolithic Power Systems Inc. |
Series | - |
Package | Tape & Reel (TR) |
Cut Tape (CT) | |
Digi-Reel? | |
Product Status | Active |
Function | Step-Down |
Output Configuration | Positive |
Topology | Buck |
Output Type | Adjustable |
Number of Outputs | 1 |
Voltage - Input (Min) | 4.5V |
Voltage - Input (Max) | 55V |
Voltage - Output (Min/Fixed) | 0.81V |
Voltage - Output (Max) | 52.25V |
Current - Output | 500mA |
Frequency - Switching | 480kHz |
Synchronous Rectifier | No |
Operating Temperature | -40°C ~ 125°C (TJ) |
Mounting Type | Surface Mount |
Package / Case | SOT-23-6 Thin, TSOT-23-6 |
Supplier Device Package | TSOT-23-6 |
Base Product Number | MP2459 |
Actual product photos
品實(shí)物圖/MP2459GJ-Z 3.jpg)

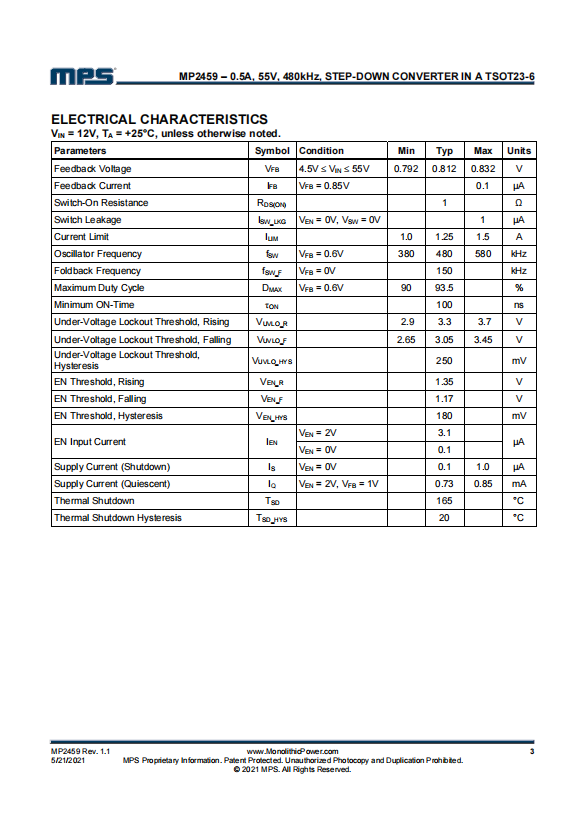

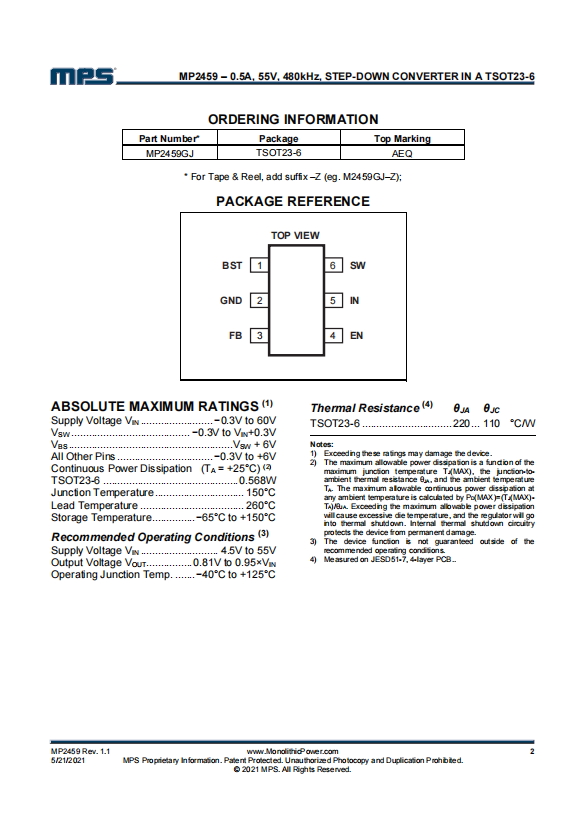

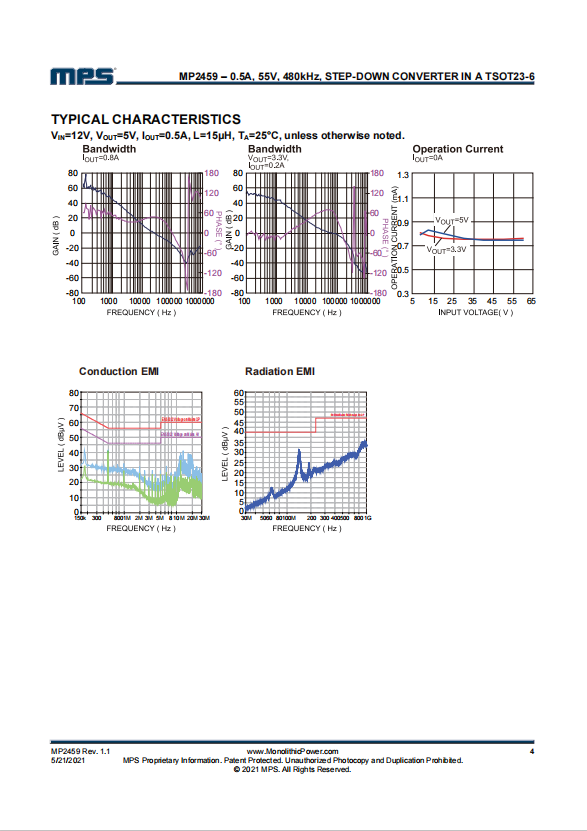

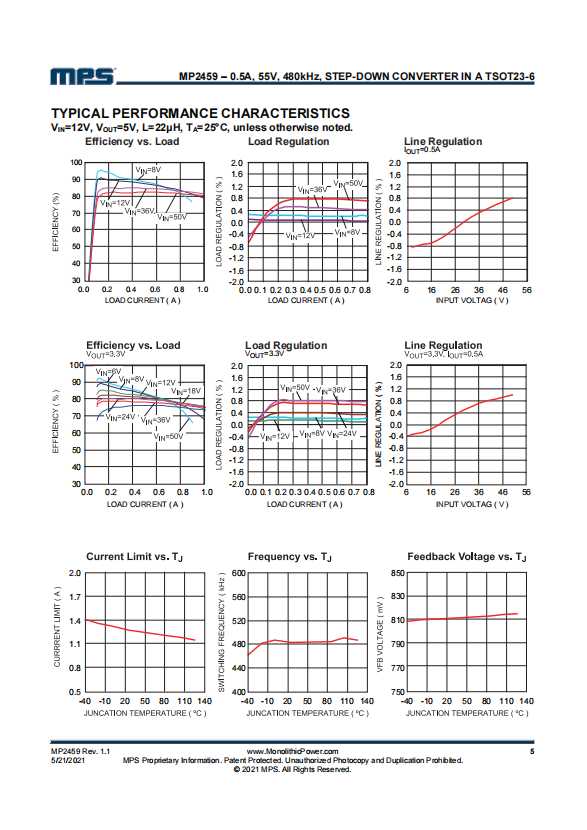

Product Data Book：
For more product information, please download the PDF
