Product SPECIFICATION

1.MATERIAL SPECIFICATION

1.1 INSULATION:PA9T UL 94V-0

1.2 CONTACT:THICK 0.20mm BRASS

1.3 SOLDER TAB:THICK 0.20mm BRASS

2.PLATING SPECIFICATION

2.1 CONTACT:MATTE TIN/GOLD PLATED

2.2 SOLDER TAB:MATTE TIN PLATED.

3.PRODUCT SPEC:GS-12-1465

4.PACKAGING SPEC: GS-14-2613

5.USE WTH AFCI HOUSING 10147603

6.THIS HOUSING WLL WITHSTAND EXPOSURE TO260C PEAK TEMP FOR 10S IN A REFLOW OVEN.

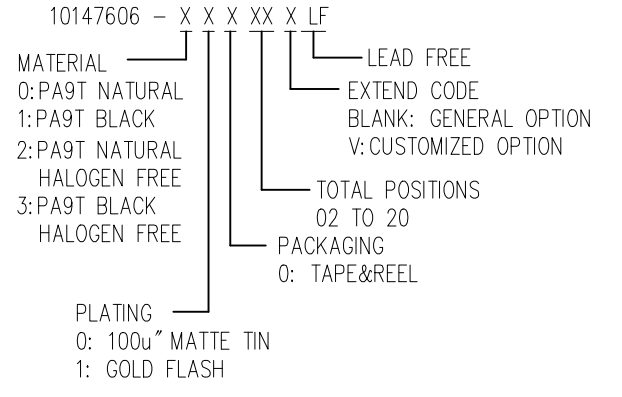

7.BILL OF PART NO:

搜狗高速瀏覽器截圖20231205133538

Attribute	Attribute value
ANSM-Part#	ANSM-10147606-00009LF
Category	Connectors, Interconnects
	Rectangular Connectors
	Headers, Male Pins
Mfr	Amphenol ICC (FCI)
Series	Minitek?1.00mm
Package	Tape & Reel (TR)
	Cut Tape (CT)
	/
Product Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.039" (1.00mm)
Number of Positions	9
Number of Rows	1
Row Spacing - Mating	-
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Surface Mount, Right Angle
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	-
Contact Length - Post	-
Overall Contact Length	-
Insulation Height	0.114" (2.90mm)
Contact Shape	Rectangular
Contact Finish - Mating	Tin
Contact Finish Thickness - Mating	-
Contact Finish - Post	Tin
Contact Material	Brass
Insulation Material	Polyamide (PA9T), Nylon 9T
Features	Solder Retention
Operating Temperature	-25°C ~ 85°C
Ingress Protection	-
Material Flammability Rating	UL94 V-0
Insulation Color	Natural
Current Rating (Amps)	1A
Voltage Rating	50VAC
Mated Stacking Heights	-
Contact Finish Thickness - Post	-
Applications	-
Base Product Number	10147606

10147606-00009LF
