Product Details

Microchip’s dsPIC33EV family of digital signal controllers (DSCs) features a 5V 70 MIPS dsPIC? DSC core with enhanced on-chip features and is ideal for operating in harsh environments such as appliances, industrial and automotive applications. The 5V dsPIC33EV family comes with rich peripheral integration which includes CAN, SENT, High Speed PWMs, OP Amps and Error Correcting Code Flash for increased reliability and safety. The dsPIC33EV family of devices enable the design of high-performance, precision motor control systems that are more energy efficient. They can be used to control BLDC, permanent magnet synchronous, AC induction and stepper motors. These devices are ideal for high-performance general purpose, Touch, advanced sensor interfacing and control applications in automotive, industrial, consumer and medical segments. The functional safety ready dsPIC33EVXXXGM00X/10X family has many features that help simplify achieving ISO 26262 functional safety compliance of your safety-critical designs.

Products Features

Operating Conditions
* 4.5V to 5.5V, -40oC to +85oC, DC to 70 MIPS
* 4.5V to 5.5V, -40oC to +125oC, DC to 60 MIPS
* 4.5V to 5.5V, -40oC to +150oC, DC to 40 MIPS

dsPIC33E Core
* Code-Efficient (C and Assembly) Architecture
* Two 40-Bit Wide Accumulators
* Single-Cycle (MAC/MPY) with Dual Data Fetch
* Single-Cycle, Mixed-Sign MUL plus Hardware Divide
* 32-Bit Multiply Support
* Provides a boot Flash segment in addition to the existing general Flash segment
* Error Code Correction (ECC) for Flash
* Added Two Alternate Register Sets for Fast Context Switching
* Up to Six Pulse-Width Modulation (PWM) Outputs (three generators)

High-Speed PWM
* Primary Master Time Base Inputs allow Time Base Synchronization from Internal/External Sources
* Dead Time for Rising and Falling Edges
* 8.3 ns PWM Resolution at 60 MIPS,
* 16.6 ns Center-Aligned mode at 60 MIPS
* PWM support DC/DC, AC/DC, inverters, Power Factor Correction (PFC) and lighting
* PWM support Brushless Direct Current (BLDC), Permanent Magnet Synchronous
Motor (PMSM), AC Induction Motor (ACIM), Switched Reluctance Motor (SRM)
* Programmable Fault inputs
* Flexible trigger configurations for Analog-to-Digital conversion
* Independent Time Base
* Supports PWM lock, PWM output chopping and dynamic phase shifting

Integrated Analog Features
* ADC configurable as 10-bit, 1.1 Msps with four S&H or 12-bit, 500 ksps with one S&H
* Up to 36 analog inputs
* Flexible and Independent ADC Trigger Sources
* Up to Four Op Amp/Comparators with Direct Connection to the ADC module:
* Additional dedicated comparator and 7-bit Digital-to-Analog Converter (DAC)
* Programmable references with 128 voltage points
* Programmable blanking and filtering

Charge Time Measurement Unit
* Supports mTouch? capacitive touch sensing
* Provides high-resolution time measurement (1 ns)
* On-chip temperature measurement
* Temperature sensor diode
* Multiple sources of edge input triggers

Timers/Output Compare/Input Capture
* Up to nine general purpose timers
* Five 16-bit or up to two 32-bit timers/counters, Timer3 can provide ADC trigger
* Oscillator Frequency Monitoring through CTMU
* Four Output Capture modules configurable as timers/counters
* Four Input Capture modules

Communication Interfaces
* CAN module with 32 buffers, 16 filters and three masks
* Support for LIN/J2602 bus support and IrDA?
* High and low speed (SCI)
* 25 Mbps data rate without PPS used
* One I2C? module (up to 1 Mbaud) with SMBus Support
* Two SENT J2716 (Single Edge Nibble Transmission-Transmit/Receive) module for Automotive Applications

Direct Memory Access (DMA)
* 4-Channel DMA with User-Selectable Priority Arbitration
* Universal Asynchronous Receiver/Transmitter (UART), Serial Peripheral Interface (SPI), ADC, Input Capture, Output Compare

Qualification and Class B Support
* AEC-Q100 Grade 1 (-40oC to +125oC)
* AEC-Q100 Grade 0 (-40oC to +150oC)
* Class B Safety Library, IEC 60730

Functional Safety support (ISO26262)
* ASIL-B focused applications
* FMEDA and Safety manual
* XC16 Functional Safety Compiler

Functional Safety hardware features
* Flash with Error Correction Code (ECC)
* CodeGuard? Memory Protection
* On-chip Regulator for CPU
* Backup FRC and redundant clock sources
* Fail Safe Clock Monitor
* Windowed Watchdog Timer (WDT)
* Windowed Deadman Timer (DMT)
* Oscillator Frequency Monitoring through CTMU (OSCI, SYSCLK, FRC, BFRC, LPRC)
* BOR and POR
* Cyclical Redundancy Check (CRC)
* Analog peripherals redundancies
* Illegal Opcode Detection
* PWM Lock and Dedicated PWM Fault Pin
* Internal Loopback to test communication peripherals and IO ports
* SFR and Configuration Locks
* Math Error Trap
* Address Trap
* Redundant data storage for Flash-based Configuration bits and Peripheral Pin Select (PPS) Configuration bits

Specifications

Actual product photos

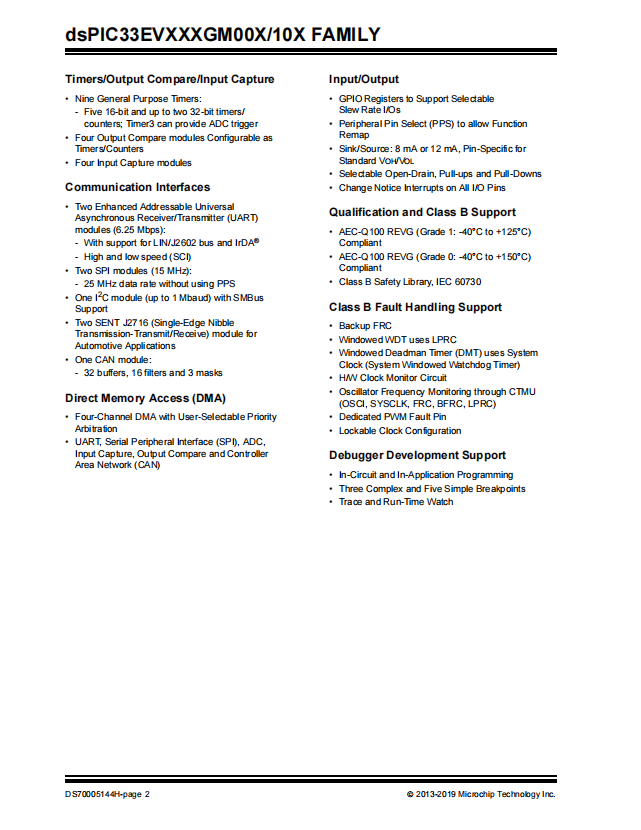

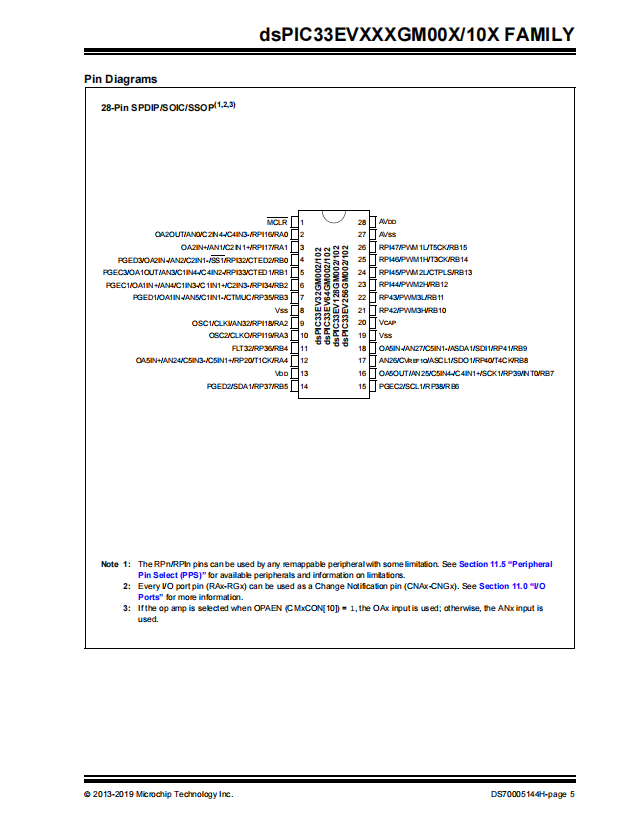

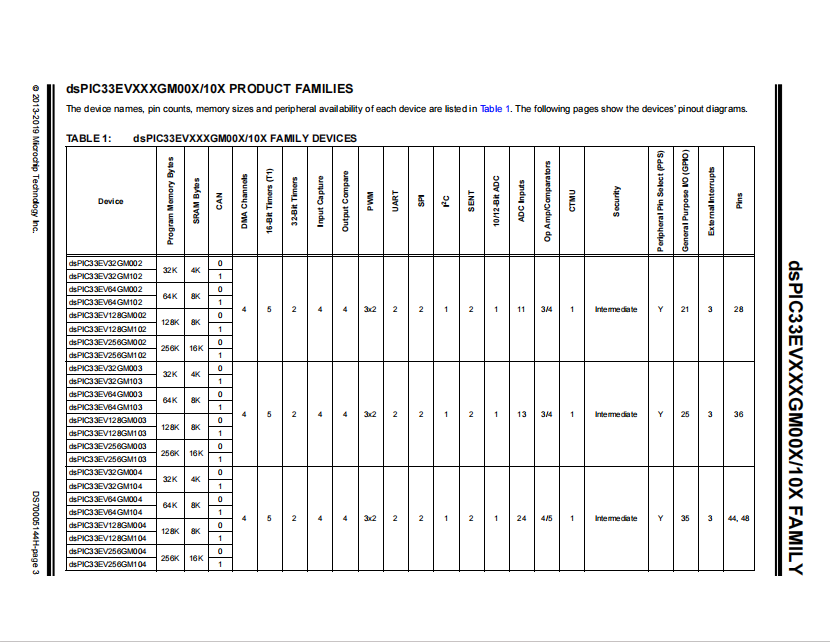

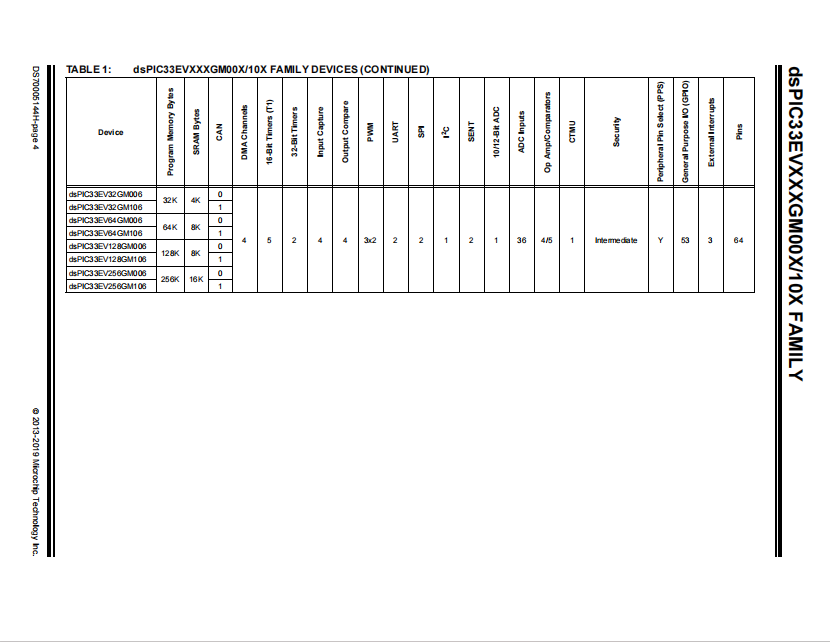

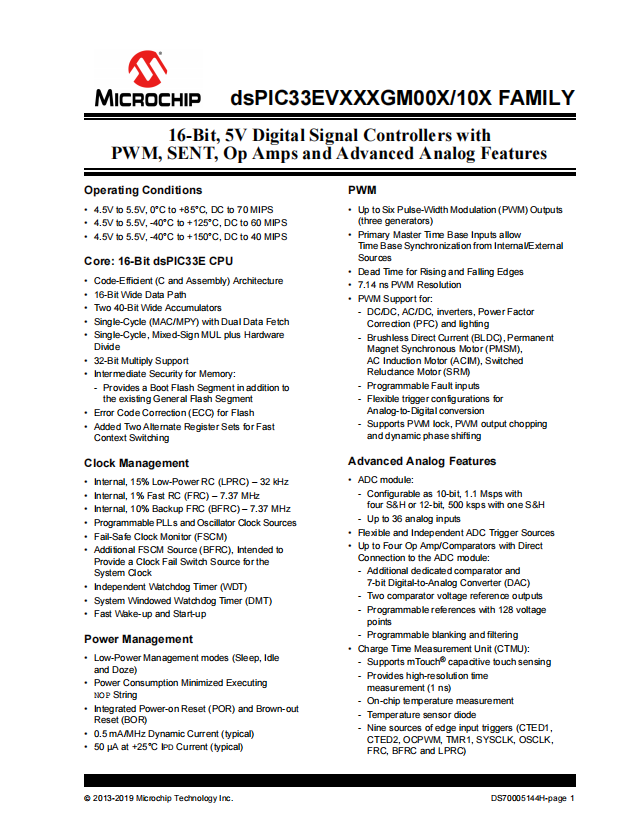

Product Data Book：

For more product information, please download the PDF

Payment&Transportation

Official Certificate&Certificate

Multiple product supply

Company office environment

Warehouse Real Shot

Standard packaging

We also provide ：
