Product Descriptions

The 74HC244 is an advanced high-speed CMOS OCTAL BUS BUFFER (3-STATE) fabricated with silicon gate C2MOS technology.

G control input governs four BUS BUFFERs.

This device is designed to be used with 3 state memory address drivers, etc

All inputs are equipped with protection circuits against static discharge and transient excess voltage.

■ HIGH SPEED: tPD = 10ns (TYP.) at VCC = 6V

■ LOW POWER DISSIPATION: ICC = 4μA(MAX.) at TA=25°C

■ HIGH NOISE IMMUNITY: VNIH = VNIL = 28 % VCC (MIN.)

■ SYMMETRICAL OUTPUT IMPEDANCE: |IOH| = IOL = 6mA (MIN)

■ BALANCED PROPAGATION DELAYS: tPLH ? tPHL

■ WIDE OPERATING VOLTAGE RANGE: VCC (OPR) = 2V to 6V

■ PIN AND FUNCTION COMPATIBLE WITH 74 SERIES 244

Part#	M74HC244RM13TR
Category	Integrated Circuits (ICs)
	Logic
	Buffers, Drivers, Receivers, Transceivers
Mfr	STMicroelectronics
Series	74HC
Package	Tape & Reel (TR)
	Cut Tape (CT)
	Digi-Reel?
Product Status	Obsolete
Logic Type	Buffer, Non-Inverting
Number of Elements	2
Number of Bits per Element	4
Input Type	-
Output Type	3-State
Current - Output High, Low	7.8mA, 7.8mA
Voltage - Supply	2V ~ 6V
Operating Temperature	-55°C ~ 125°C (TA)
Mounting Type	Surface Mount
Package / Case	20-SOIC (0.295", 7.50mm Width)
Supplier Device Package	20-SO
Base Product Number	74HC244

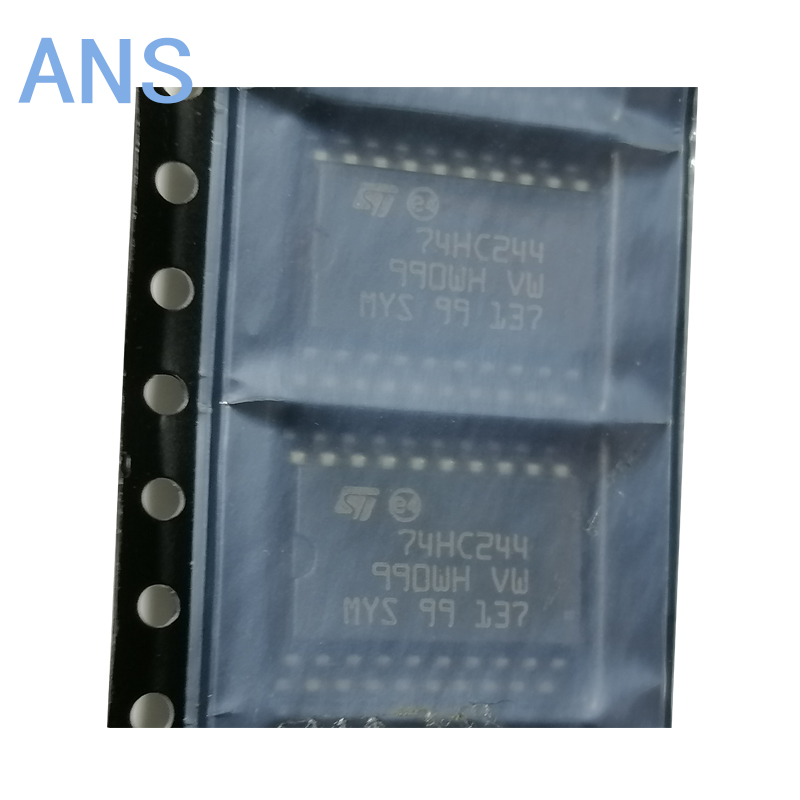

M74HC244RM13TR
