Product Descriptions
The MAX531/MAX538/MAX539 are low-power, voltageoutput, 12-bit digital-to-analog converters (DACs) specified for single +5V power-supply operation. The MAX531 can also be operated with ±5V supplies. The MAX538/MAX539 draw only 140μA, and the MAX531 (with internal reference) draws only 260μA. The MAX538/MAX539 come in 8-pin DIP and SO packages, while the MAX531 comes in 14-pin DIP and SO packages. All parts have been trimmed for offset voltage, gain, and linearity, so no further adjustment is necessary.
The MAX538’s buffer is fixed at a gain of +1 and the MAX539’s buffer at a gain of +2. The MAX531’s internal op amp may be configured for a gain of +1 or +2, as well as for unipolar or bipolar output voltages. The MAX531 can also be used as a four-quadrant multiplier without external resistors or op amps.
For parallel data inputs, see the MAX530 data sheet.
Product Features
? Operate from Single +5V Supply
? Buffered Voltage Output
? Internal 2.048V Reference (MAX531)
? 140μA Supply Current (MAX538/MAX539)
? INL = ±1/2LSB (max)
? Guaranteed Monotonic over Temperature
? Flexible Output Ranges:
0V to VDD (MAX531/MAX539)
VSS to VDD (MAX531)
0V to 2.6V (MAX531/MAX538)
? 8-Pin SO/DIP (MAX538/MAX539)
? Power-On Reset
? Serial Data Output for Daisy-Chaining
Product Applications
Battery-Powered Test Instruments
Digital Offset and Gain Adjustment
Battery-Operated/Remote Industrial Controls
Machine and Motion Control Devices
Cellular Telephones
Specifications
| Part# | MAX538AESA+ |
| Category | Integrated Circuits (ICs) |
| Data Acquisition | |
| Digital to Analog Converters (DAC) | |
| Mfr | Analog Devices Inc./Maxim Integrated |
| Series | - |
| Package | Tube |
| Product Status | Active |
| DigiKey Programmable | Not Verified |
| Number of Bits | 12 |
| Number of D/A Converters | 1 |
| Settling Time | 25μs (Typ) |
| Output Type | Voltage - Buffered |
| Differential Output | No |
| Data Interface | SPI |
| Reference Type | External |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| INL/DNL (LSB) | ±0.5 (Max), ±1 (Max) |
| Architecture | R-2R |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Mounting Type | Surface Mount |
| Base Product Number | MAX538 |

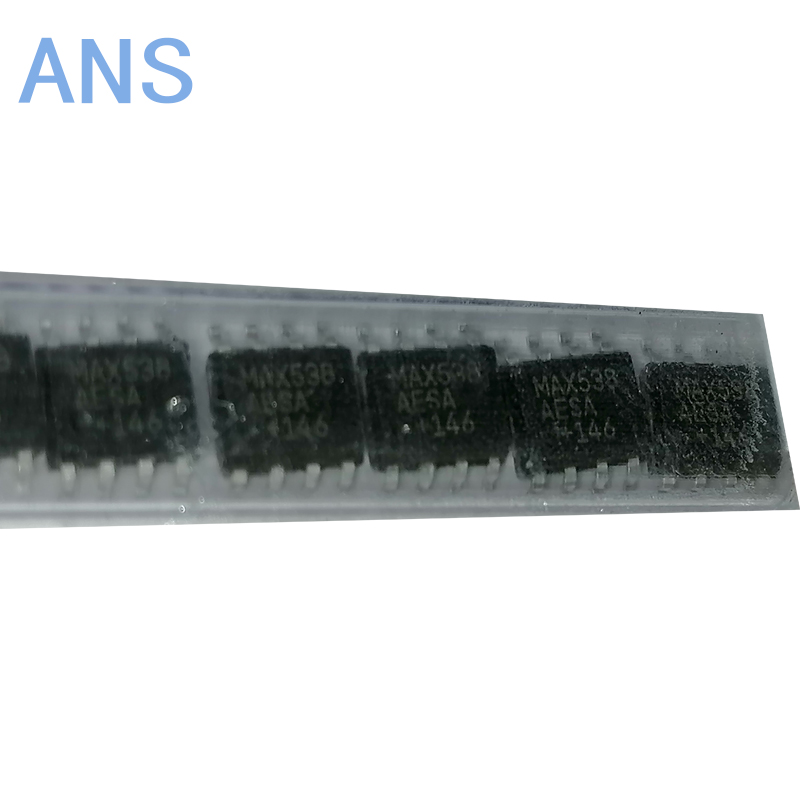

Actual product photos
