Product Descriptions
The XC9536 is a high-performance CPLD providing advanced in-system programming and test capabilities for general purpose logic integration. It is comprised of eight 36V18 Function Blocks, providing 800 usable gates with propagation delays of 5 ns. See Figure 2 for the architecture overview.
Product Features
? 5 ns pin-to-pin logic delays on all pins
? fCNT to 100 MHz
? 36 macrocells with 800 usable gates
? Up to 34 user I/O pins
? 5V in-system programmable
- Endurance of 10,000 program/erase cycles
- Program/erase over full commercial voltage and temperature range
? Enhanced pin-locking architecture
? Flexible 36V18 Function Block
- 90 product terms drive any or all of 18 macrocells within Function Block
- Global and product term clocks, output enables,set and reset signals
? Extensive IEEE Std 1149.1 boundary-scan (JTAG) support
? Programmable power reduction mode in each macrocell
? Slew rate control on individual outputs
? User programmable ground pin capability
? Extended pattern security features for design protection
? High-drive 24 mA outputs
? 3.3V or 5V I/O capability
? Advanced CMOS 5V FastFLASH? technology
? Supports parallel programming of more than one XC9500 concurrently
? Available in 44-pin PLCC, 44-pin VQFP, 48-pin CSP packages
Specifications
| Part# | XC9536-15PC44I |
| Category | Integrated Circuits (ICs) |
| Embedded | |
| CPLDs (Complex Programmable Logic Devices) | |
| Mfr | XILINX |
| Series | XC9500 |
| Package | REEL |
| Product Status | Obsolete |
| DigiKey Programmable | Not Verified |
| Programmable Type | In System Programmable (min 10K program/erase cycles) |
| Delay Time tpd(1) Max | 15 ns |
| Voltage Supply - Internal | 4.5V ~ 5.5V |
| Number of Logic Elements/Blocks | 2 |
| Number of Macrocells | 36 |
| Number of Gates | 800 |
| Number of I/O | 34 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 44-LCC (J-Lead) |
| Supplier Device Package | 44-PLCC (16.59x16.59) |
| Base Product Number | XC9536 |

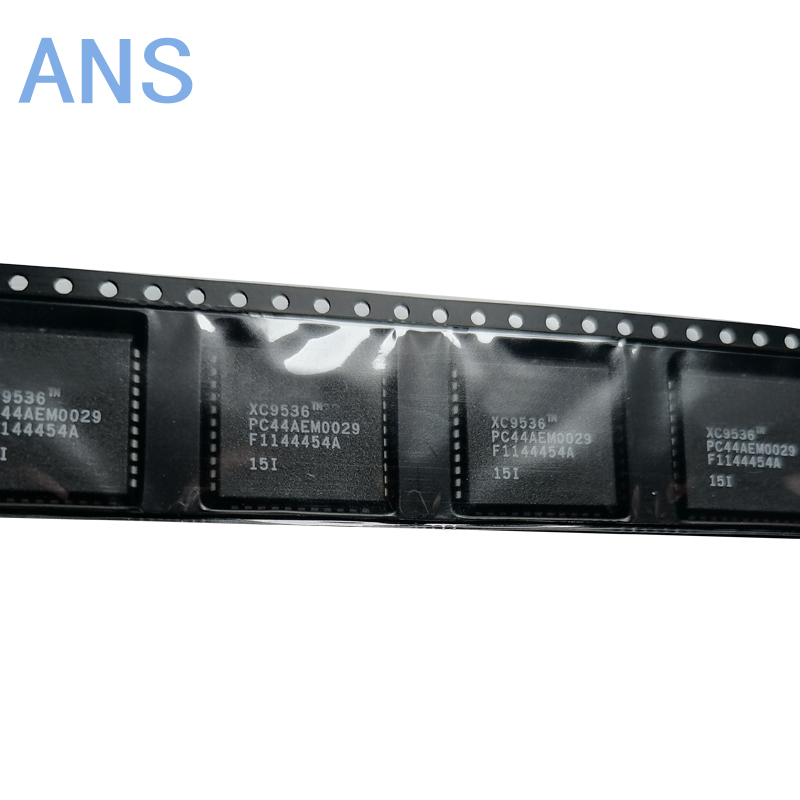

Actual product photos
