Product Description
| Type | Description |
| PART# | 71439-0464 |
| Ihs Manufacturer | MOLEX LLC |
| Package Description | ROHS COMPLIANT |
| Factory Lead Time | 11 Weeks |
| Samacsys Manufacturer | Molex |
| Additional Feature | TAPE & REEL, PICK & PLACE CAP |
| Board Mounting Option | PEG |
| Body Breadth | 0.24 inch |
| Body Depth | 0.209 inch |
| Body Length | 1.413 inch |
| Body/Shell Style | RECEPTACLE |
| Connector Type | BOARD STACKING CONNECTOR |
| Contact Finish Mating | NOT SPECIFIED |
| Contact Finish Termination | Tin (Sn) |
| Contact Gender | FEMALE |
| Contact Material | PHOSPHOR BRONZE |
| Contact Pattern | RECTANGULAR |
| Contact Resistance | 30 mΩ |
| Contact Style | BELLOWED TYPE |
| DIN Conformance | NO |
| Dielectric Withstanding Voltage | 250VAC V |
| Durability | 100 Cycles |
| Filter Feature | NO |
| IEC Conformance | NO |
| Insertion Force-Max | .5838 N |
| Insulation Resistance | 100000000 Ω |
| Insulator Color | WHITE |
| Insulator Material | GLASS FILLED LIQUID CRYSTAL POLYMER |
| MIL Conformance | NO |
| Mating Contact Pitch | 0.039 inch |
| Mating Information | MULTIPLE MATING PARTS AVAILABLE |
| Mixed Contacts | NO |
| Mounting Option 1 | LOCKING |
| Mounting Style | STRAIGHT |
| Mounting Type | BOARD |
| Number Of Connectors | ONE |
| Number Of PCB Rows | 2 |
| Number of Rows Loaded | 2 |
| Operating Temperature-Max | 85 °C |
| Operating Temperature-Min | -55 °C |
| Option | GENERAL PURPOSE |
| PCB Contact Pattern | RECTANGULAR |
| PCB Contact Row Spacing | 3.683 mm |
| Plating Thickness | 30u inch |
| Polarization Key | POLARIZED HOUSING |
| Rated Current (Signal) | 1 A |
| Reference Standard | UL, CSA |
| Terminal Pitch | 1 mm |
| Termination Type | SURFACE MOUNT |
| Total Number of Contacts | 64 |
| UL Flammability Code | 94V-0 |
| Withdrawl Force-Min | .2224 N |

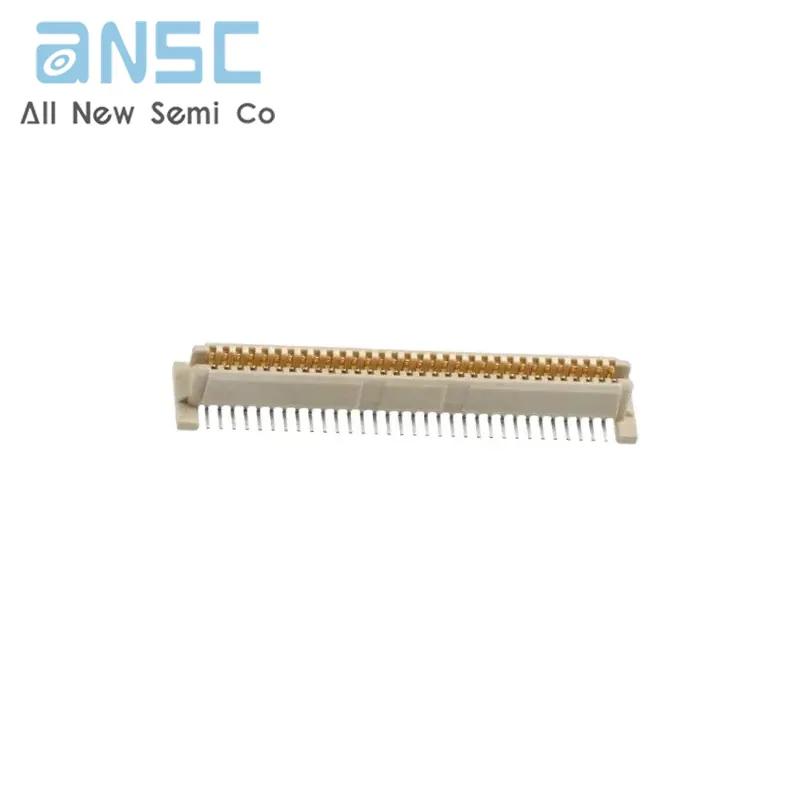

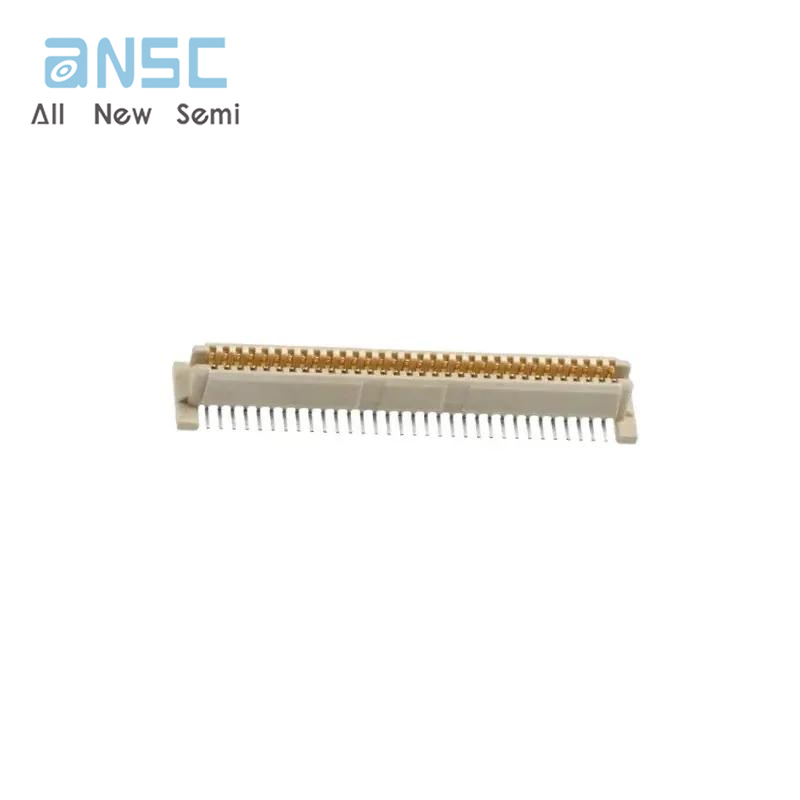

Product Photos
Product datasheet
For more information, please download
