Product Descriptions
The SN54/74LS240, 241 and 244 are Octal Buffers and Line Drivers designed to be employed as memory address drivers, clock drivers and bus-oriented transmitters/receivers which provide improved PC board density
Product Features
? Hysteresis at Inputs to Improve Noise Margins
? 3-State Outputs Drive Bus Lines or Buffer Memory Address Registers
? Input Clamp Diodes Limit High-Speed Termination Effects
Specifications

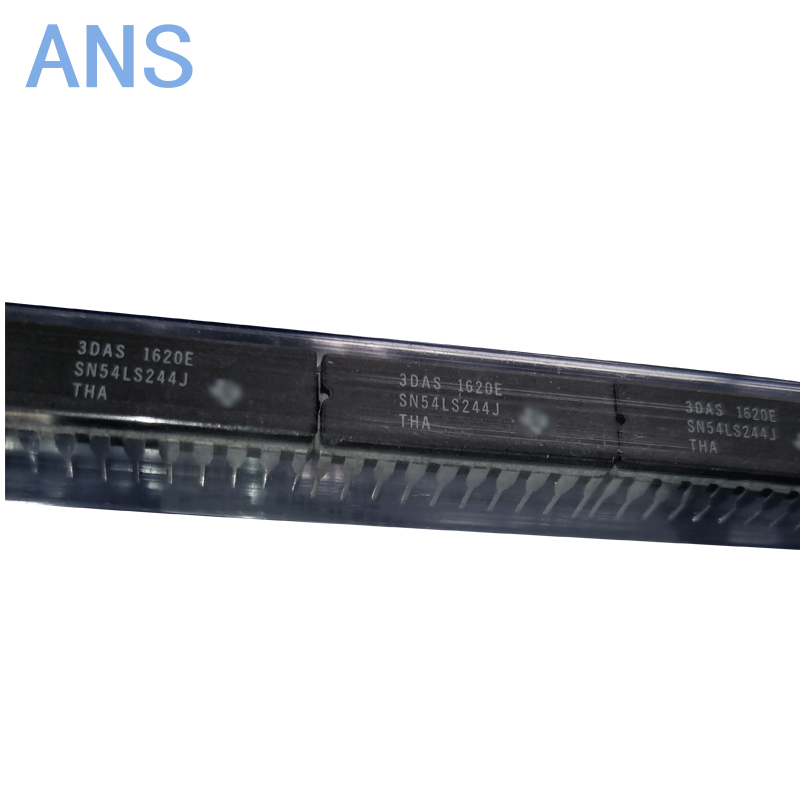

| ANSM-Part# | SN54LS244J |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Buffers, Drivers, Receivers, Transceivers | |
| Mfr | Original |
| Series | 54LS |
| Package | Tube |
| Product Status | Active |
| Logic Type | Buffer, Non-Inverting |
| Number of Elements | 2 |
| Number of Bits per Element | 4 |
| Input Type | Schmitt Trigger |
| Output Type | 3-State |
| Current - Output High, Low | 12mA, 12mA |
| Voltage - Supply | 4.5V ~ 5.5V |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Mounting Type | Through Hole |
| Package / Case | 20-CDIP (0.300", 7.62mm) |
| Supplier Device Package |
20-CDIP |
