Product Description
| Brand | / |
| model | MK-01-ATX |
| Article number | 101074030 |
| Applicable type | Desktop computer |
| Case type | Rack |
| Compatible motherboard | ATX, FLEX, ITX, MicroATX, E-ATX |
| material quality | 0.8mm steel plate baked with black paint |
| Standard power supply | No standard power supply |
| Front interface | nothing |
| size | 44 * 25 * 3.5 (cm) |
| Product weight | 1.2 (KG) |
| Packaging List | Main board * 1pcs, rear board * 1pcs, side reinforced fixing board * 2pcs+screw accessory kit * 1 set |
| Chassis structure | E-ATX/ATX/M-ATX/ITX |
| Chassis type | server |
| Power position | Upward |

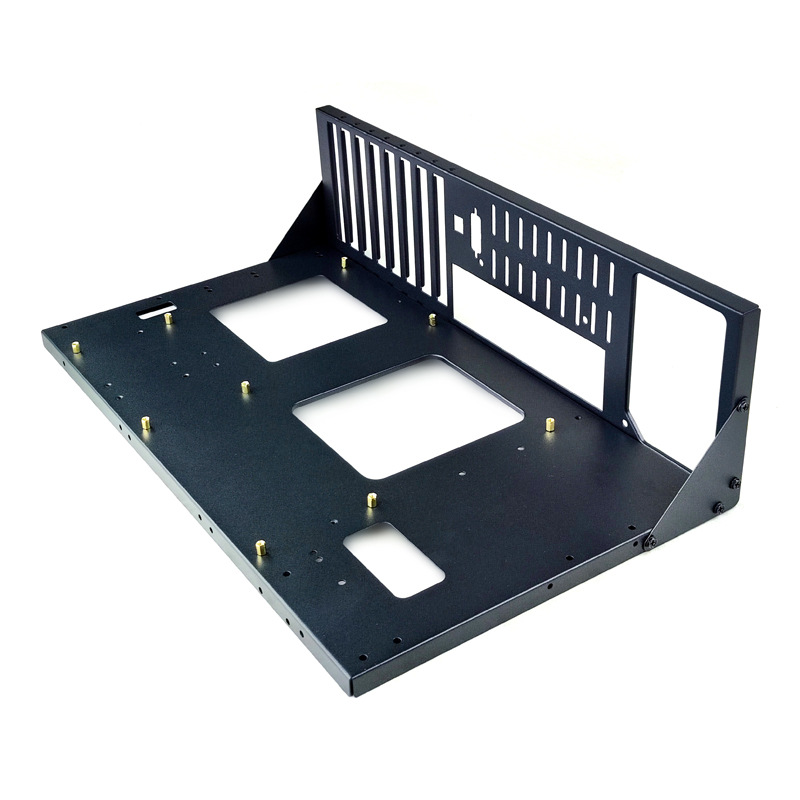

Model: MK-01 Standard Edition ATX Open Chassis
Material: High quality 0.8mm SPCC steel plate, surface painted with black sand grain paint;
Number of supported graphics cards: According to the motherboard situation, the length and width of the graphics card are not limited;
Support motherboard: support motherboards up to 305 * 245mm: ATX, Micro ATX, ITX;
Support power supply: standard ATX power supply, reference size 150mm * 86mm * (140-250) mm; Supports 1 SSD and 1 HDD;

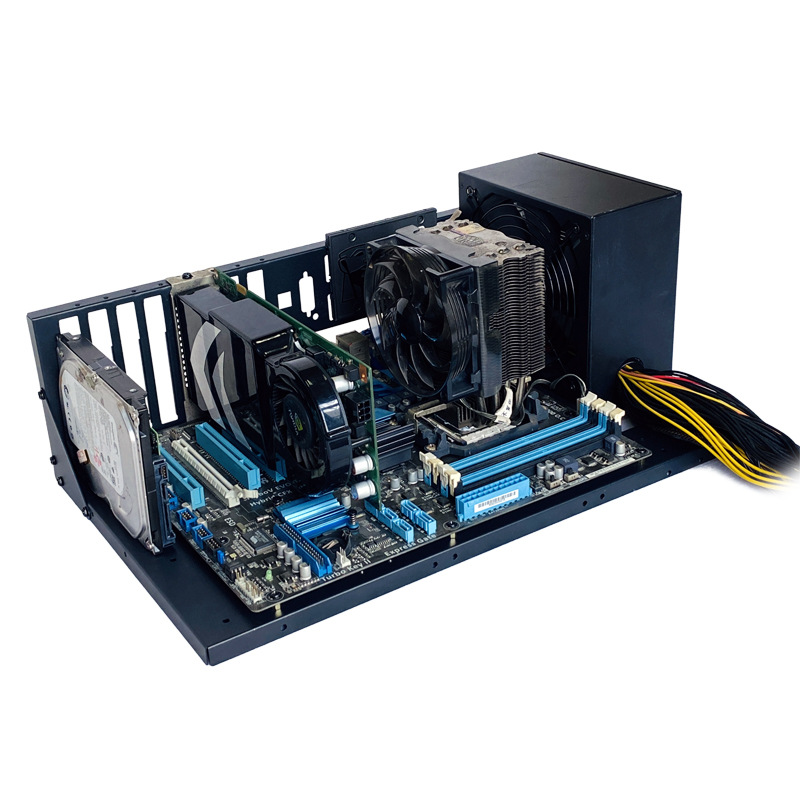

Product size after installation: 440 * 265 * 128mm;
Basic logistics information
After installing the power supply, the size of the product is 440 * 265 * 160mm;
Net weight of product: 1.0KG
.jpg)
FAQ
Q: What is the weight of the product?
Answer: 1.2Kg
Q: What accessories does the product include?
Answer: 1 power on cable, 1 fixed motherboard backplane, 1 fixed IO, rear board for graphics and expansion cards, and 2 triangular reinforced side fixing plates; One set of fixing screws for the main board copper pillar, main board, power supply, graphics card, and hard drive;
Q: What motherboards and power supplies are supported by the ATX version of the motherboard;
Answer: Supports all ATX, M-ATX, and ITX motherboards; Support standard or extended ATX power supply;
Q: What motherboards does the E-ATX version of the motherboard support?
Answer: The E-ATX version can support the vast majority of E-ATX motherboards on the market, and some E-ATX motherboards may have 1-2 incorrect screw holes, It can be supported by the attached plastic base;
Q: Which graphics card is supported and how many graphics cards are supported?
Answer: All graphics cards are supported, regardless of length or width; The number of graphics cards needs to be determined based on the PCIE card slot on the motherboard and the thickness of the graphics card, usually 3-7 cards;
Q: Can a fan be installed?
Answer: Three 12cm fans can be installed on the other side of the base plate (if the graphics card is too long, it will cause interference and cannot be installed); It can also be used to install 120，240，360 water-cooled exhaust;
Q: What is the maximum height that the CPU heat sink can support?
Answer: The height of the CPU heat sink is not limited;
