   Product Introduction

The PMS163 is an ADC-Type, fully static, OTP-based 8 bit CMOS Touch-Key MCU; it employs RISC architecture and most the instructions are executed in one cycle except that few instructions are two cycles that handle indirect memory access.

A maximum 13-ch touch keys controller is built inside PMS163. Besides, PMS163 also includes 2.5KW OTP program memory, 160 bytes data SRAM, one hardware 16-bit timer, two are 8-bit timers with PWM generation, and three hardware 11-bit timers with PWM generation are also included.

   Product Features

1.1. Special Features

? Not supposed to use in AC RC step-down powered or high EFT requirement applications.

PADAUK assumes no liability if such kind of applications can not pass the safety regulation tests.

? Operating temperature range: -40°C ~ 85°C

1.2. System Features

? 2.5KW OTP program memory

? 160 Bytes data RAM

? Maximum 13 IO pins can be selected as TOUCH PAD individually

? One hardware 16-bit timer

? Two hardware 8-bit timer with PWM generation

? Three hardware 11-bit PWM generators (PWMG0, PWMG1 & PWMG2)

? One hardware comparator

? Provide 1T 8x8 hardware multiplier

? 14 IO pins with optional pull-high/pull-low resistor

? Every IO pin can be configured to enable wake-up function

? PA6/PA7/PB7 support large sink current: 80mA

? Bandgap circuit to provide 1.2V Bandgap voltage

? Up to 12-channel 12-bit resolution ADC with one channel comes from internal Bandgap reference voltage or 0.25*VDD

? Provide ADC reference high voltage: external input, internal VDD, Bandgap(1.20V), 4V, 3V, 2V

? Clock sources: internal high RC oscillator(IHRC) and internal low RC oscillator(ILRC)

? For every wake-up enabled IO, two optional wake-up speed are supported: normal and fast

? Sixteen Levels of LVR reset: 4.5V, 4.0V, 3.75V, 3.5V, 3.3V, 3.15V, 3.0V, 2.7V, 2.5V, 2.4V, 2.3V, 2.2V, 2.1V, 2.0V, 1.9V, 1.8V

? Four selectable external interrupt pin

? Internal LDO for touch noise immunity

? One low-power clock (NILRC) wake-up stopsys regularly

1.3. CPU Features

? Operating modes: One processing unit mode

? 88 powerful instructions

? Most instructions are 1T execution cycle

? Programmable stack pointer to provide adjustable stack level (Using 2 bytes SRAM for one stack level)

? Direct and indirect addressing modes for data and instructions

? All data memories are available for use as an index pointer

? Separated IO and memory space

    Specifications

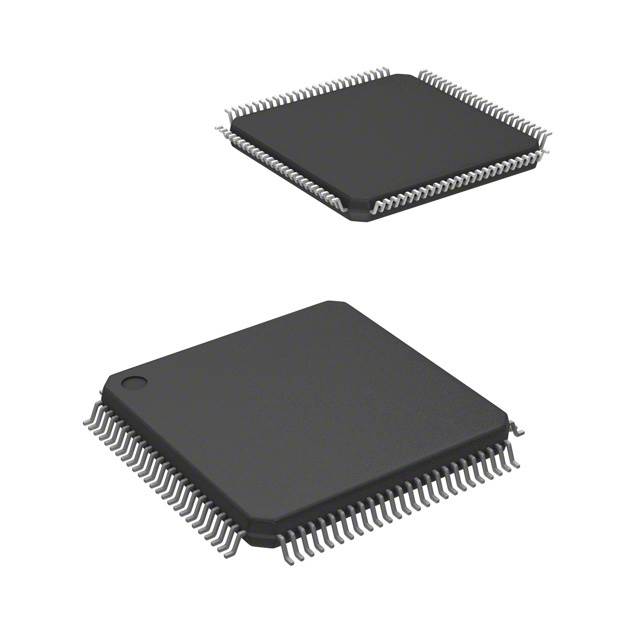

    Actual product photos
