Product Descriptions

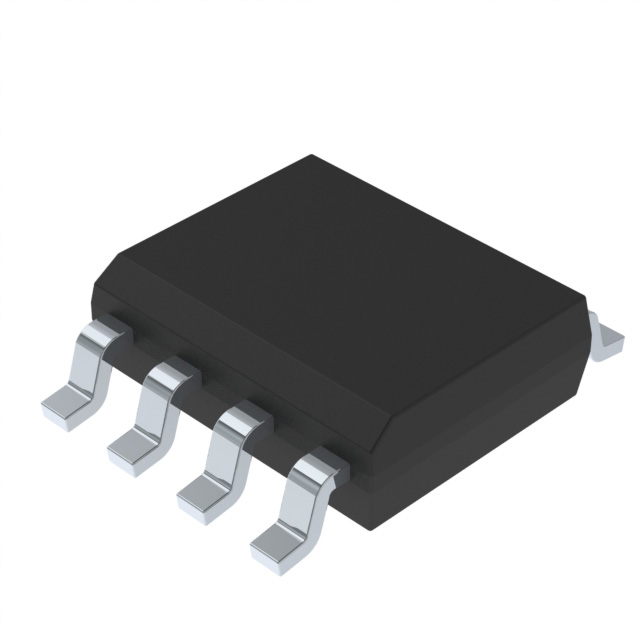

NY8A051F is an 8-bit microcontroller with EPROM as the memory, designed specifically for applications in multi IO products such as remote controls, fan/light control, or amusement equipment peripherals. Adopting CMOS process while providing customers with significant advantages such as low cost and high performance. The NY8A051F core is built on the RISC reduced instruction set architecture, making it easy to edit and control, with a total of 55 instructions. Except for a few instructions that require 2 timing sequences, most instructions can be completed in 1 timing sequence, allowing users to easily control different applications through programming. Therefore, it is very suitable for various complex applications with low to medium memory capacity.

In terms of I/O resources, NY8A051F has 6 flexible bidirectional I/O pins, each with a separate register to control as an input or output pin. And each I/O pin has additional program control functions such as pull-up or pull-down resistors or open drain outputs. In addition, for infrared remote control products, NY8A051F has a built-in infrared carrier emission port with selectable frequencies.

NY8A051F has two sets of timers, which can be used as general timing applications with system frequency or triggered by external signals to count. In addition, NY8A051F provides a set of 8-bit resolution PWM outputs or buzzer outputs, which can be used to drive motors LED、 Or buzzers, etc.

Products Features

Wide operating voltage:

2.0V~5.5V @ system frequency ≤ 8MHz.

2.2V~5.5V @ system frequency>8MHz.

Wide operating temperature: -40 ° C~85 ° C.

ESD up to ± 5KV.

Built in 11th order accurate low voltage detection circuit (LVD).

1Kx14 bits EPROM.

48 bytes SRAM.

Six I/O pins (GPIO) and PB [5:0] that can independently control the input and output directions.

PB [3:0] can choose to use built-in pull-up and pull-down resistors for input.

There are three optional configurations for input (TTL/CMOS/Without Schmitt).

PB [3] has a built-in pull-up resistor of 80K.

PB [5:0] can choose between pull-up resistor or open drain output.

All I/O pin outputs can choose between Small Sink Current or Normal Sink Current.

All I/O pin outputs can choose between Small Drive Current or Normal Drive Current, except for PB3

8 layers of program stack.

There are direct or indirect addressing modes for accessing data.

A set of 8-bit countdown timers (Timer0) includes programmable frequency pre division lines.

A set of 8-bit countdown timers (Timer1) that can be used for repeated loading or continuous countdown.

An 8-bit pulse width modulation output (PWM1).

One buzzer output (BZ1).

38/57KHz infrared carrier frequency is available for selection, and the polarity of the carrier can also be chosen based on the data.

Built in power on reset circuit (POR).

Built in low voltage reset function (LVR).

Built in watchdog timer (WDT), which can be controlled on/off by the program firmware.
