Product Description
| Type | Description |
| ANSC PART# | ANSC - PTH04070WAZ |
| Category | Power Supplies - Board Mount |
| DC DC Converters | |
| Mfr | Original |
| Series | PTH04070W |
| Packaging | Tray |
| Part Status | Active |
| Type | Non-Isolated PoL Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 3V |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output 1 | 0.9 ~ 3.6V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Current - Output (Max) | 3A |
| Applications | ITE (Commercial) |
| Features | OCP, UVLO |
| Operating Temperature |
-40°C ~ 85°C |
| Efficiency | 92% |
| Mounting Type | Surface Mount |
| Package / Case | 5-SMD Module |
| Size / Dimension | 0.50" L x 0.40" W x 0.32" H (12.7mm x 10.2mm x 8.1mm) |
| Base Product Number | PTH04070 |

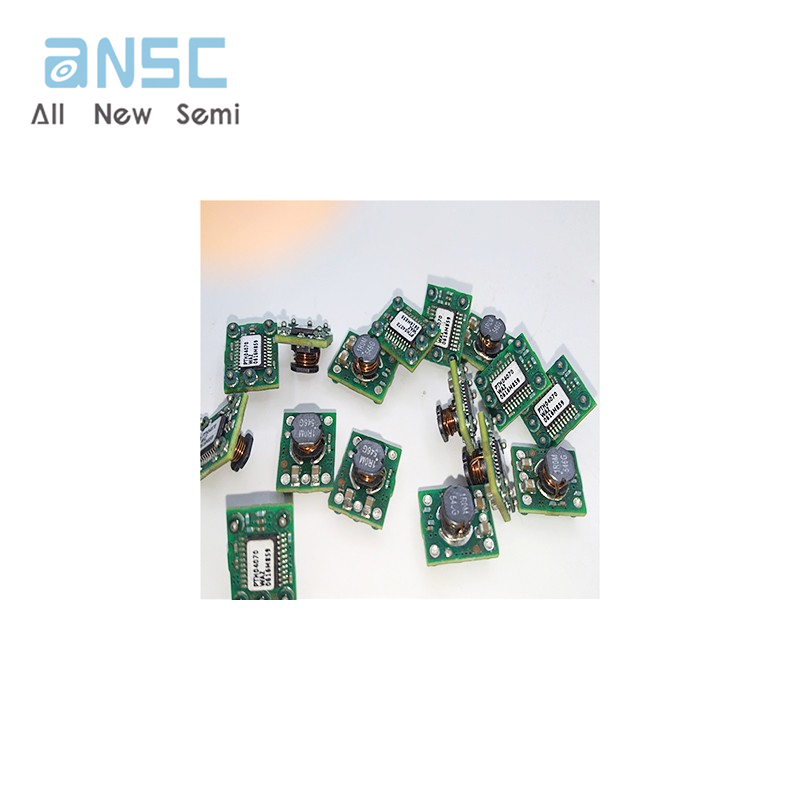

Actual image of the product

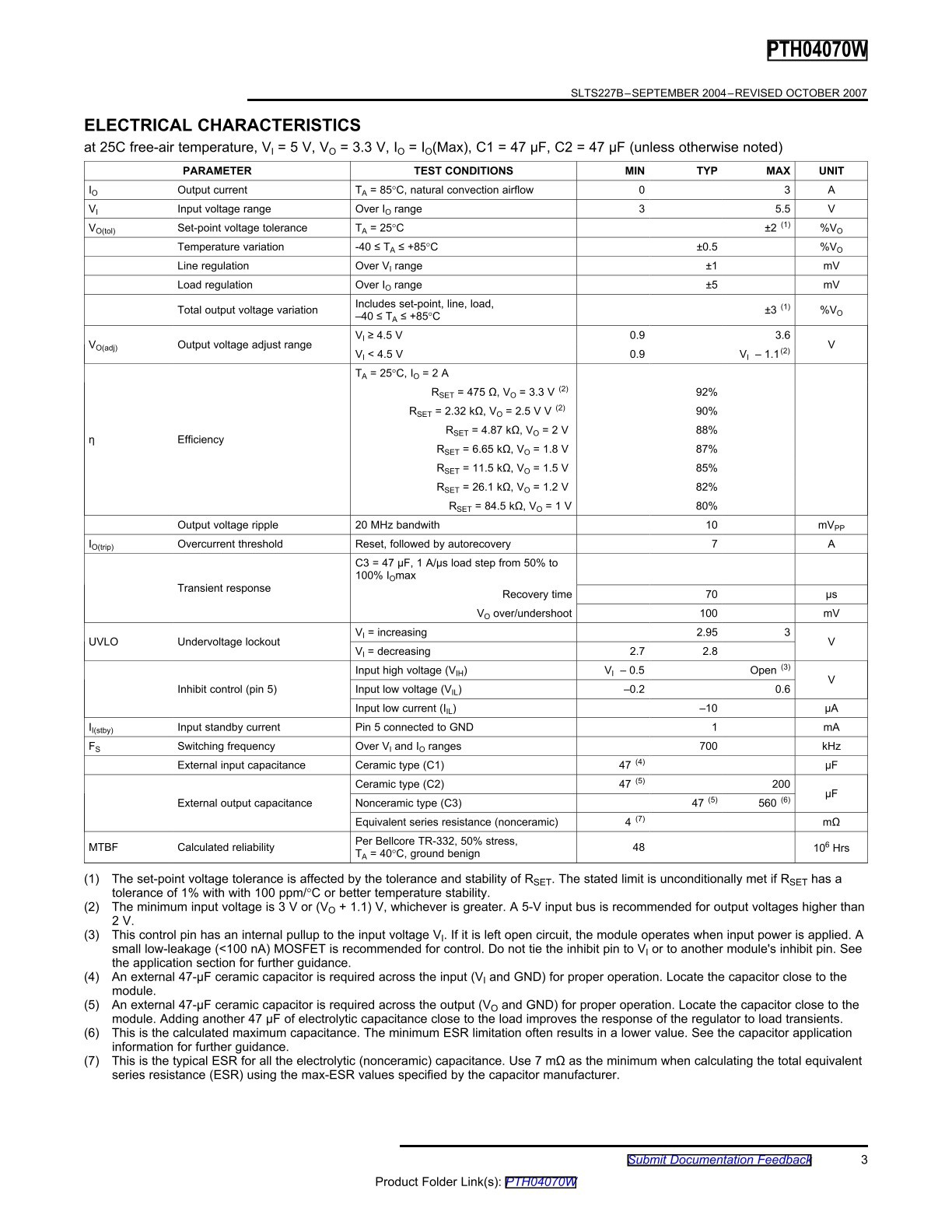

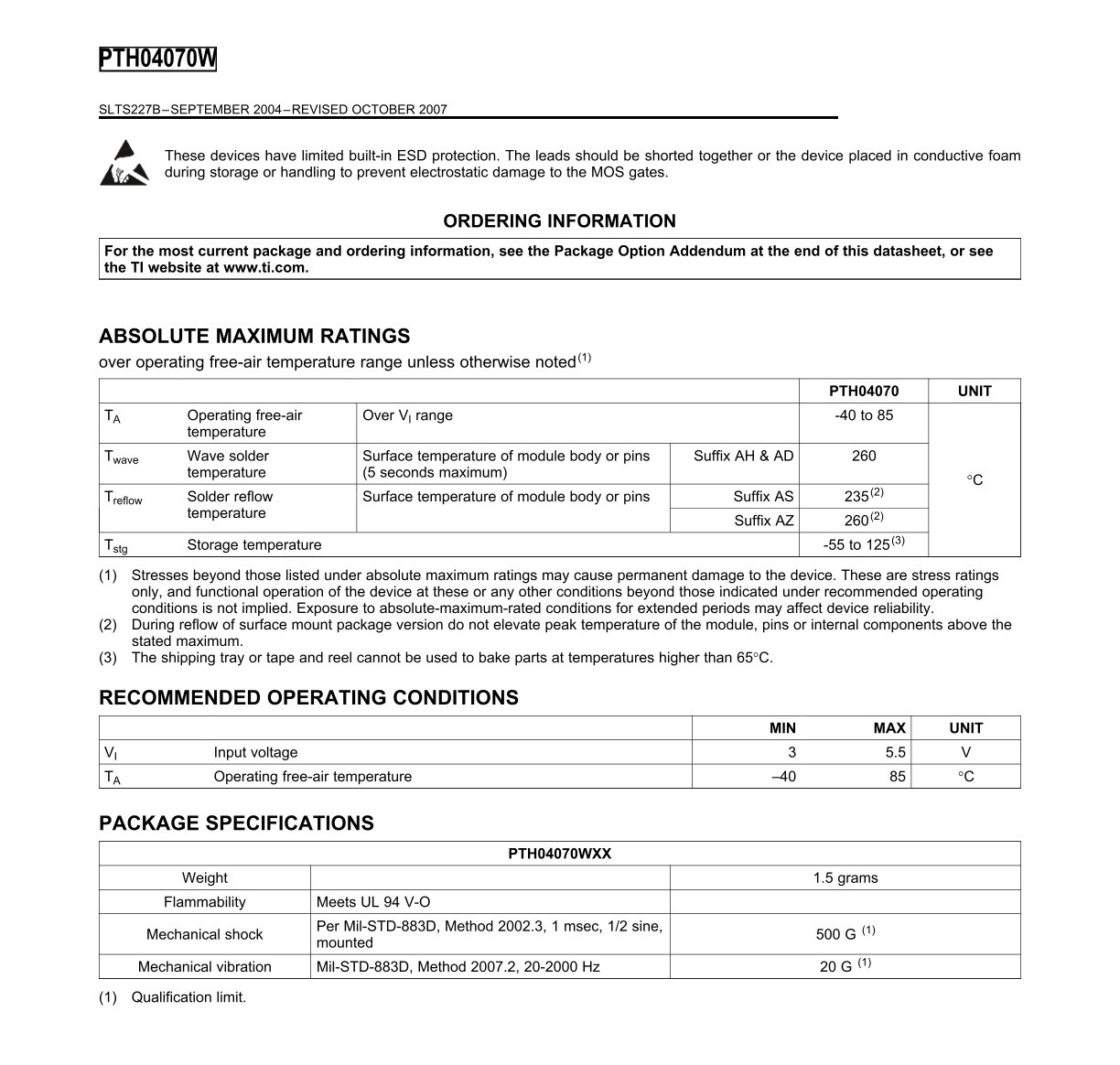

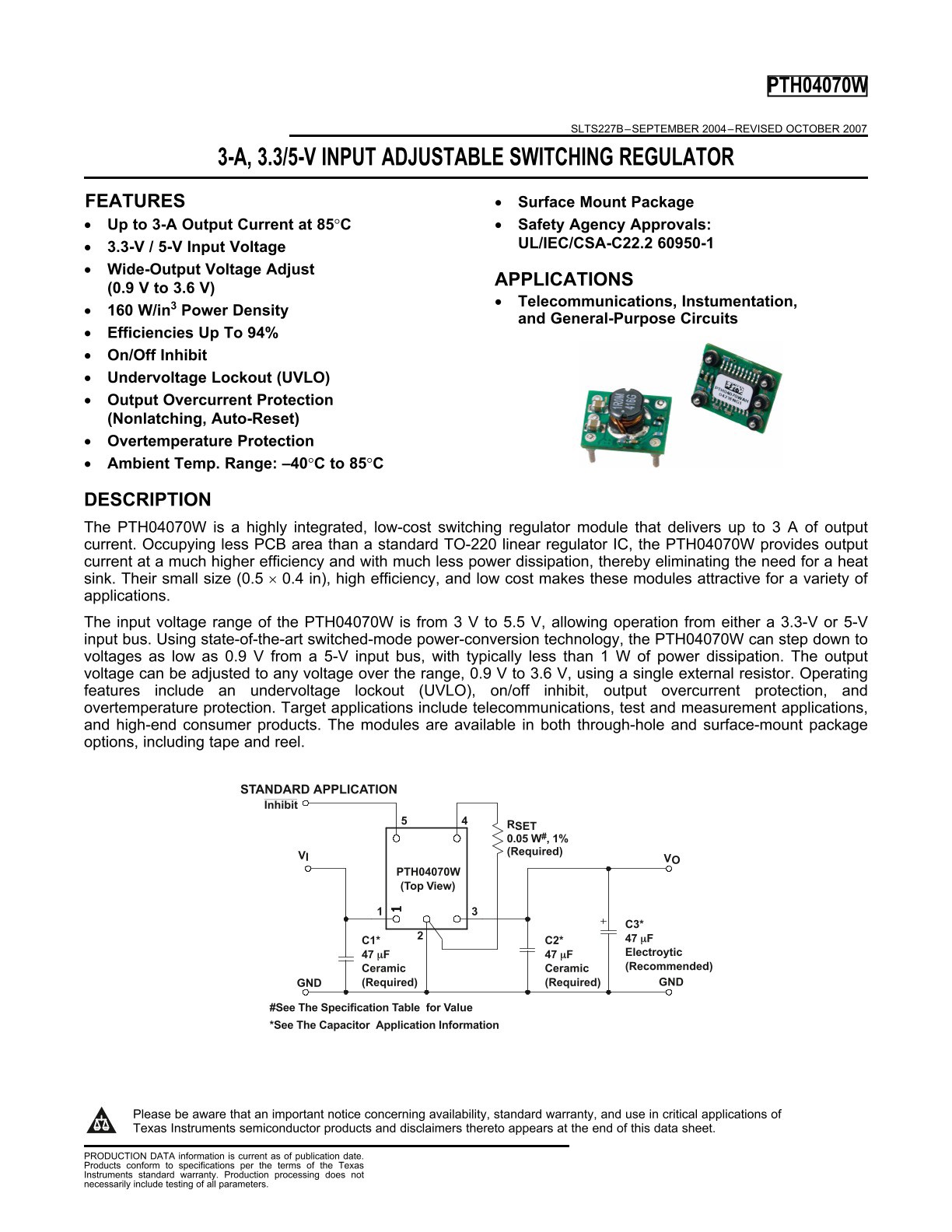

Product datasheet
For more information, please download
