Product Details

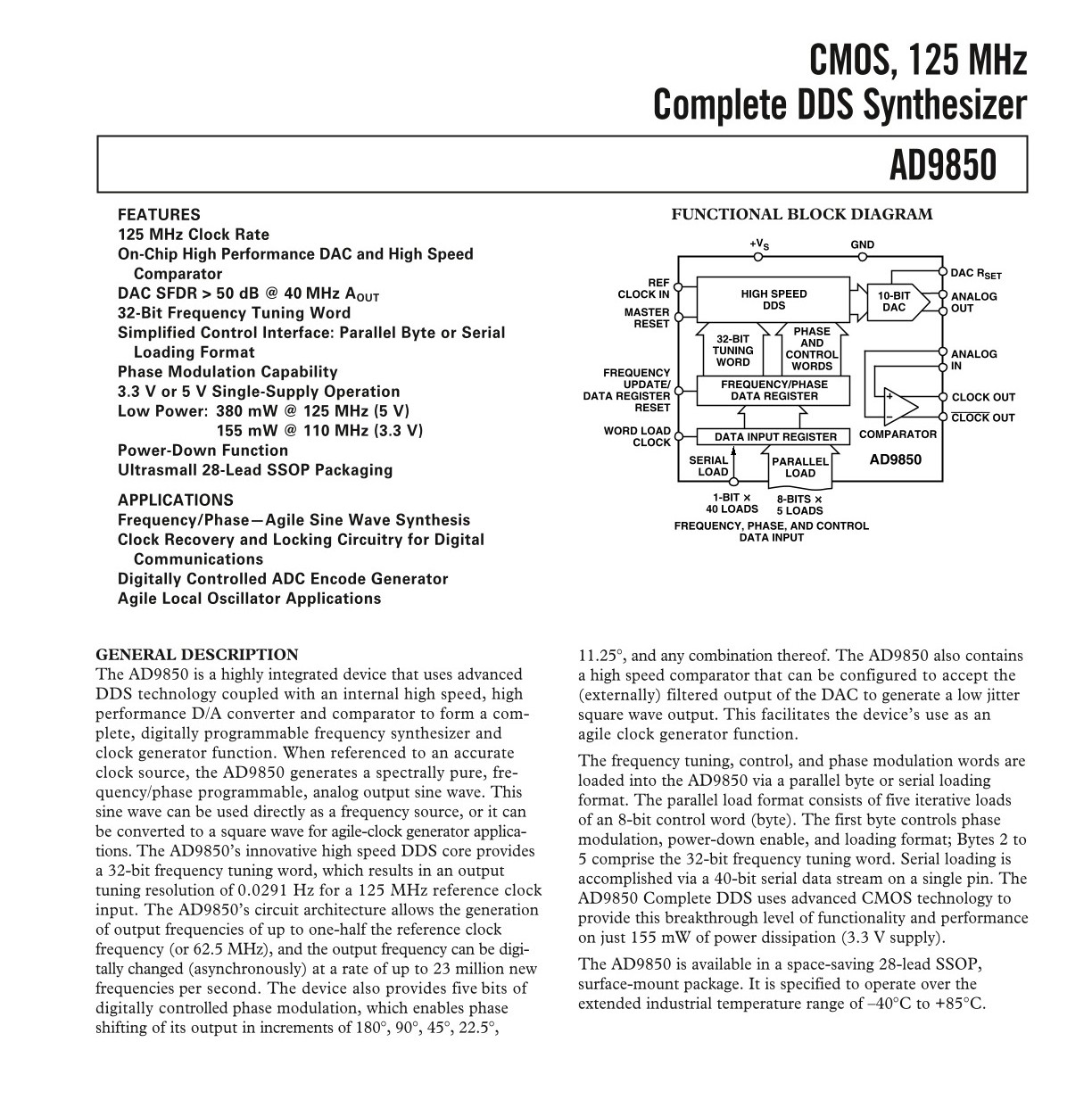

| GENERAL DESCRIPTION The AD9850 is a highly integrated device that uses advanced DDS technology coupled with an internal high speed, high performance D/A converter and comparator to form a complete, digitally programmable frequency synthesizer and clock generator function. When referenced to an accurate clock source, the AD9850 generates a spectrally pure, frequency/phase programmable, analog output sine wave. This sine wave can be used directly as a frequency source, or it can be converted to a square wave for agile-clock generator applications. The AD9850’s innovative high speed DDS core provides a 32-bit frequency tuning word, which results in an output tuning resolution of 0.0291 Hz for a 125 MHz reference clock input. FEATURES 125 MHz Clock Rate On-Chip High Performance DAC and High Speed Comparator DAC SFDR > 50 dB @ 40 MHz AOUT 32-Bit Frequency Tuning Word Simplified Control Interface: Parallel Byte or Serial Loading Format Phase Modulation Capability 3.3 V or 5 V Single-Supply Operation Low Power: 380 mW @ 125 MHz (5 V) Low Power: 155 mW @ 110 MHz (3.3 V) Power-Down Function Ultrasmall 28-Lead SSOP Packaging APPLICATIONS Frequency/Phase—Agile Sine Wave Synthesis Clock Recovery and Locking Circuitry for Digital Communications Digitally Controlled ADC Encode Generator Agile Local Oscillator Applications |
Product Description
| Type | Description |
| ANSC PART# | ANSC - AD9850BRSZ |
| Category | Integrated Circuits (ICs) |
| Interface | |
| Direct Digital Synthesis (DDS) | |
| Manufacturer | Original |
| Series | - |
| Packaging | Tube |
| Part Status | Active |
| Resolution (Bits) | 10 b |
| Master fclk | 125 MHz |
| Tuning Word Width (Bits) | 32 b |
| Voltage - Supply | 3.3V, 5V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 28-SSOP (0.209", 5.30mm Width) |
| Supplier Device Package | 28-SSOP |
| Base Product Number | AD9850 |

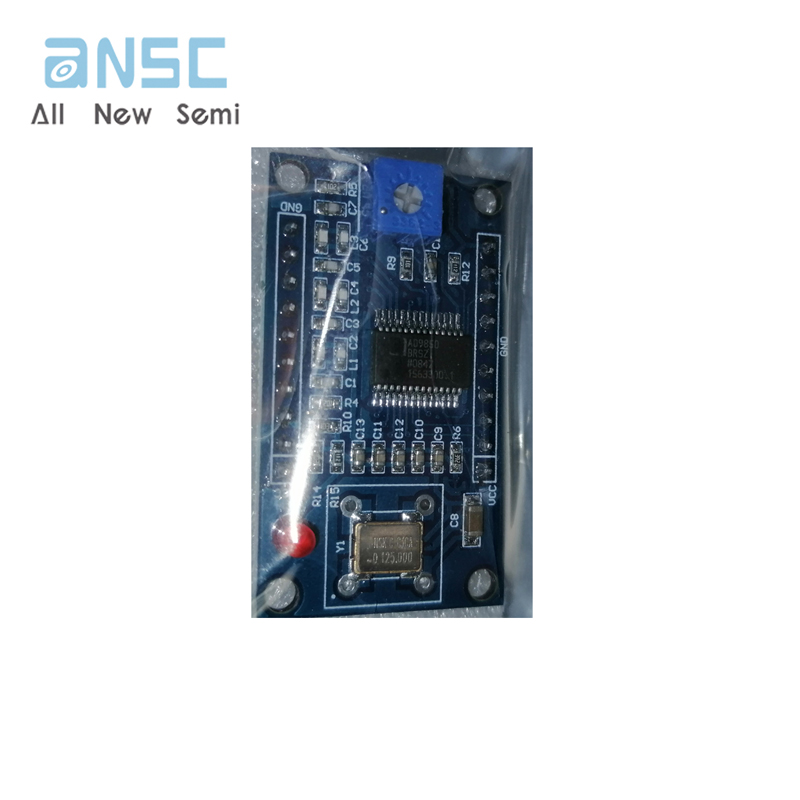

Product Photos

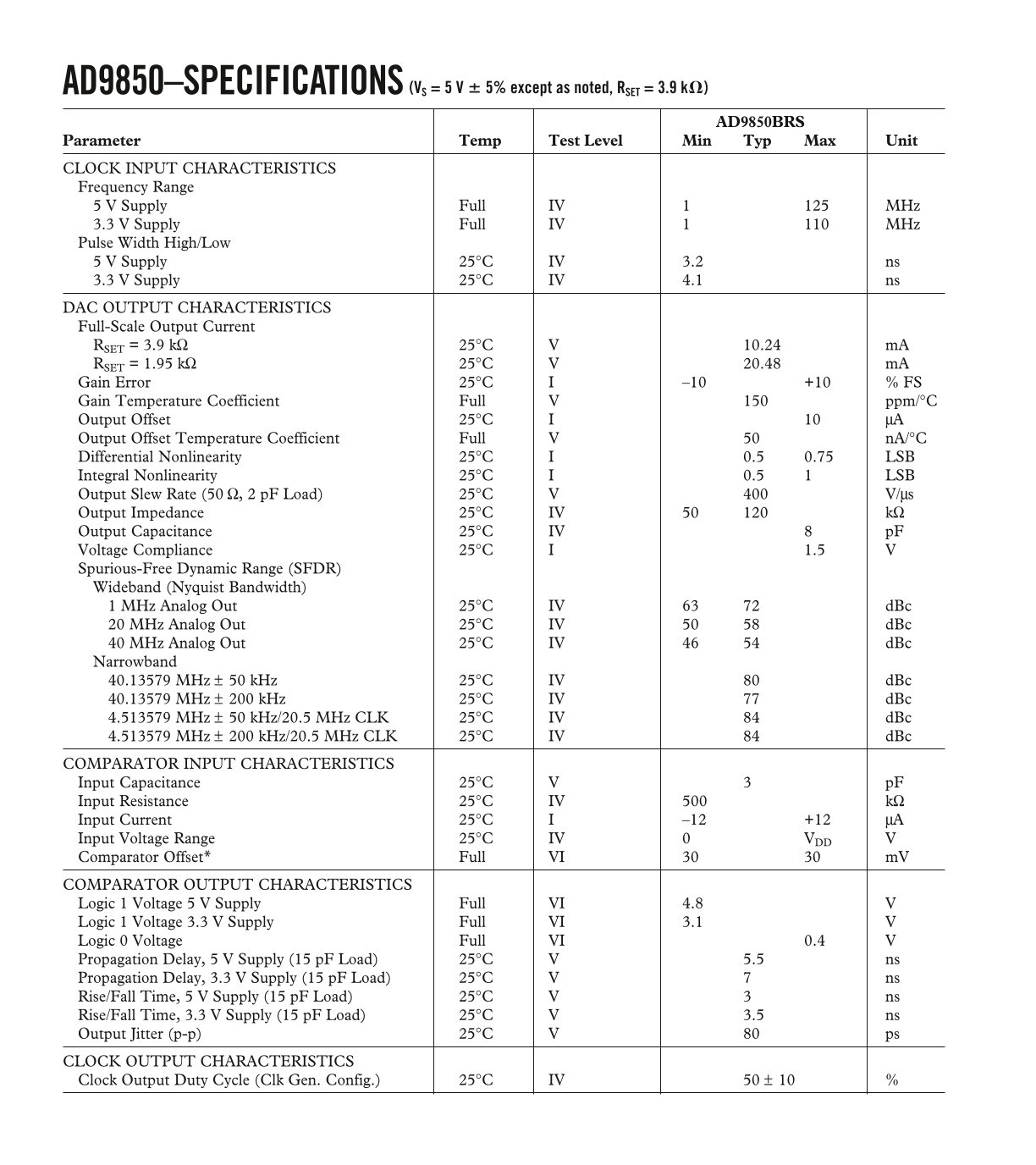

Product datasheet
For more information, please download
