Product Details
LP5912-1.8DRVT Overview
The package is delivered in a Tape & Reel (TR) case. In order to package the IC voltage regulator, a 6-WDFN Exposed Pad case is used. On the Voltage regulator IC, there are 6 terminations that can be connected. This IC Regulator has a type of output called Fixed. There are 1 regulators implemented in this electroic component. Surface Mount can be adjusted in the Linear IC in order to vary the temperature range over which Linear Regulator operates. The IC voltage regulator must be maintained at -40°C~125°C TJ degrees for it to function. As you can see, this regulator's output function is configured to be Positive. At present, it can produce an output of up to 500mA. The regulator has a total of 1 outputs to make sure that it delivers prompt, sufficient outputs. A dropout voltage of 10 volts is what makes it a dropout voltage. Depending on the chip, 6 pins may be available. For your information, part number LP5912 is the basic part number for this voltage regulator IC. It operates in the 30μA Quiescent Current state.
LP5912-1.8DRVT Features
170mV dropout voltage
LP5912-1.8DRVT Applications
There are a lot of Texas Instruments
LP5912-1.8DRVT Linear Voltage Regulators applications.
CPU power supply
Switching regulator
Multiple-power supply system
Digital audio player
Digital TV
Smartcard
Industrial equipment
DVD and CD-ROM drive
Quick charge protocols
Measurement and control euipment
Product Description
ANSC PART# | ANSC- LP5912-1.8DRVT |
Part# | LP5912-1.8DRVT |
Type： | Integrated Circuits |
Manufactor | Texas Instruments |
DC | new |
Actual image of the product
TYPE | DESCRIPTION |
|---|---|
Category | Integrated Circuits (ICs) Power Management (PMIC) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators |
Mfr | Texas Instruments |
Series | - |
Packaging | Tape & Reel (TR) Cut Tape (CT) |
Part Status | Last Time Buy |
Output Configuration | Positive |
Output Type | Fixed |
Number of Regulators | 1 |
Voltage - Input (Max) | 6.5V |
Voltage - Output (Min/Fixed) | 1.8V |
Voltage - Output (Max) | - |
Voltage Dropout (Max) | 0.25V @ 500mA |
Current - Output | 500mA |
Current - Quiescent (Iq) | 55 μA |
Current - Supply (Max) | 600 μA |
PSRR | 80dB ~ 40dB (100Hz ~ 100kHz) |
Control Features | Enable, Power Good, Soft Start |
Protection Features | Over Temperature, Reverse Polarity, Short Circuit |
Operating Temperature | -40°C ~ 125°C (TJ) |
Mounting Type | Surface Mount |
Package / Case | 6-WDFN Exposed Pad |
Supplier Device Package | 6-WSON (2x2) |
Base Product Number | LP5912 |

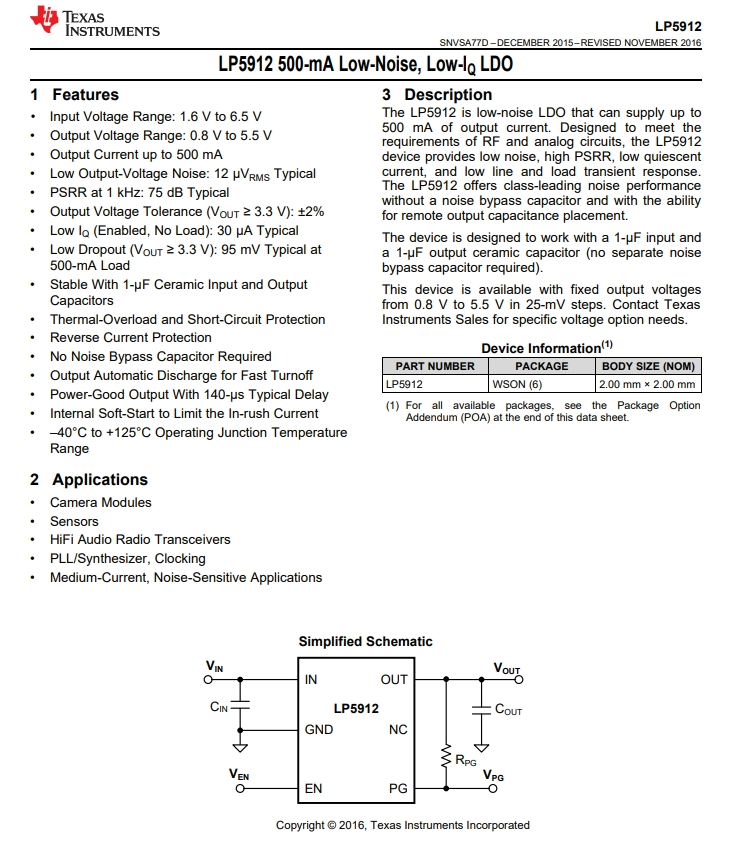

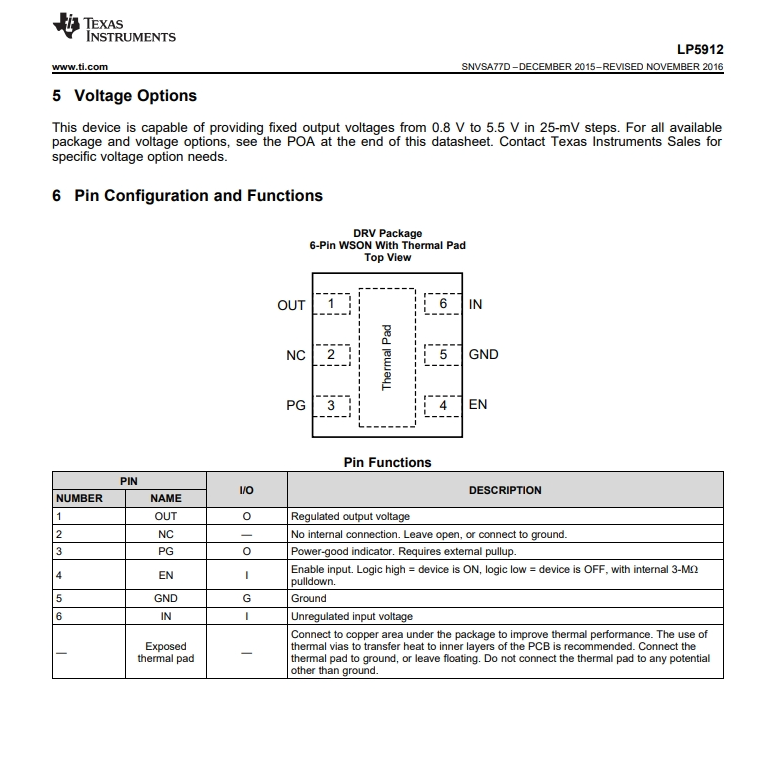

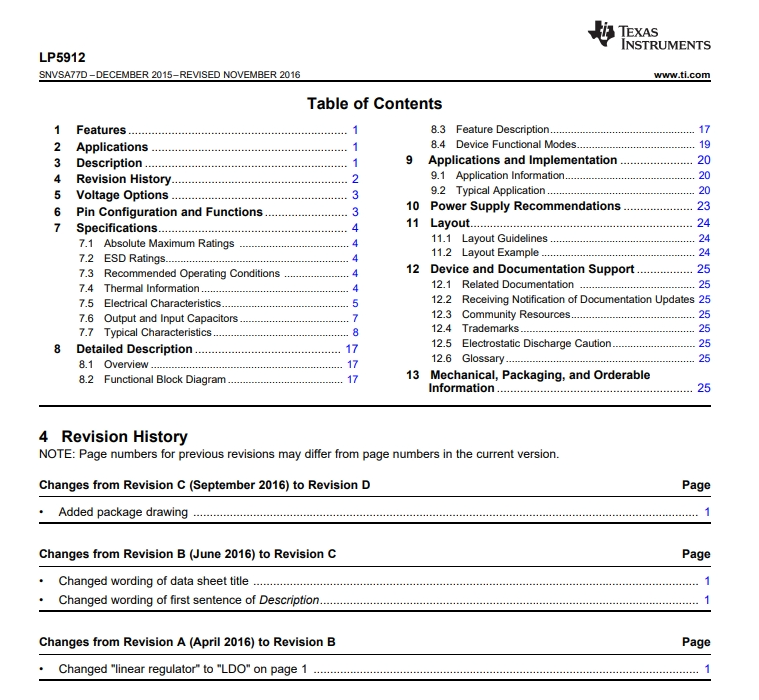

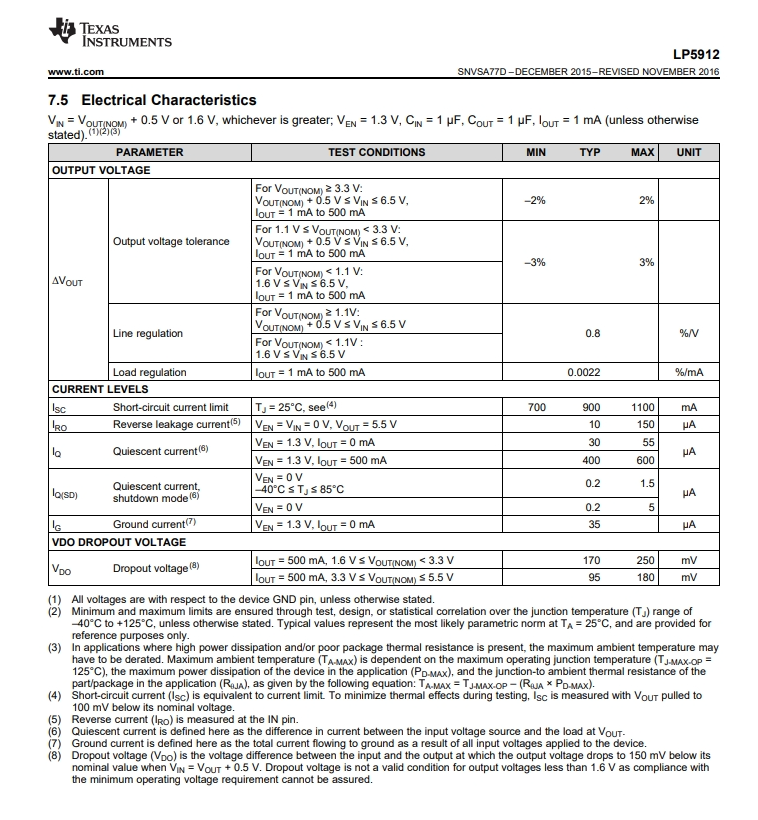

Product datasheet
For more information, please download
