Product Details
|
DESCRIPTION The 74ALVT16373 is a high-performance BiCMOS product designed for VCC operation at 2.5V or 3.3V with I/O compatibility up to 5V. FEATURES ? 16-bit transparent latch ? 5V I/O compatibile ? 3-State buffers ? Output capability: +64mA/-32mA ? TTL input and output switching levels ? Input and output interface capability to systems at 5V supply ? Bus-hold data inputs eliminate the need for external pull-up resistors to hold unused inputs ? Live insertion/extraction permitted ? Power-up reset ? Power-up 3-State ? No bus current loading when output is tied to 5V bus ? Latch-up protection exceeds 500mA per JEDEC Std 17 ? ESD protection exceeds 2000V per MIL STD 883 Method 3015 and 200V per Machine Model |
Product Description
| Type# | Description |
| ANSC PART# | ANSC - 74ALVT16373DGG |
| Ihs Manufacturer | Original |
| Part Package Code | TSSOP |
| Package Description | TSSOP, TSSOP48,.3,20 |
| Pin Count | 48 |
| Additional Feature | VCC OPERATION AT 2.5V OR 3.3V |
| Family | ALVT |
| Length | 12.5 mm |
| Load Capacitance (CL) | 50 pF |
| Logic IC Type | BUS DRIVER |
| Max I(ol) | 0.064 A |
| Moisture Sensitivity Level | 1 |
| Number of Bits | 8 |
| Number of Functions | 2 |
| Number of Ports | 2 |
| Number of Terminals | 48 |
| Operating Temperature-Max | 85 °C |
| Operating Temperature-Min |
-40 °C |
| Output Characteristics | 3-STATE |
| Output Polarity | TRUE |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | TSSOP |
| Package Equivalence Code | TSSOP48,.3,20 |
| Package Shape | RECTANGULAR |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH |
| Peak Reflow Temperature (Cel) | 260 |
| Power Supply Current-Max (ICC) | 4.5 mA |
| Prop. Delay@Nom-Sup | 4.2 ns |
| Propagation Delay (tpd) | 4.5 ns |
| Qualification Status | Not Qualified |
| Seated Height-Max | 1.2 mm |
| Supply Voltage-Max (Vsup) | 2.7 V |
| Supply Voltage-Min (Vsup) | 2.3 V |
| Supply Voltage-Nom (Vsup) | 2.5 V |
| Surface Mount | YES |
| Technology | BICMOS |
| Temperature Grade | INDUSTRIAL |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) |
| Terminal Form | GULL WING |
| Terminal Pitch | 0.5 mm |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | 30 |
| Width | 6.1 mm |
Product Photos

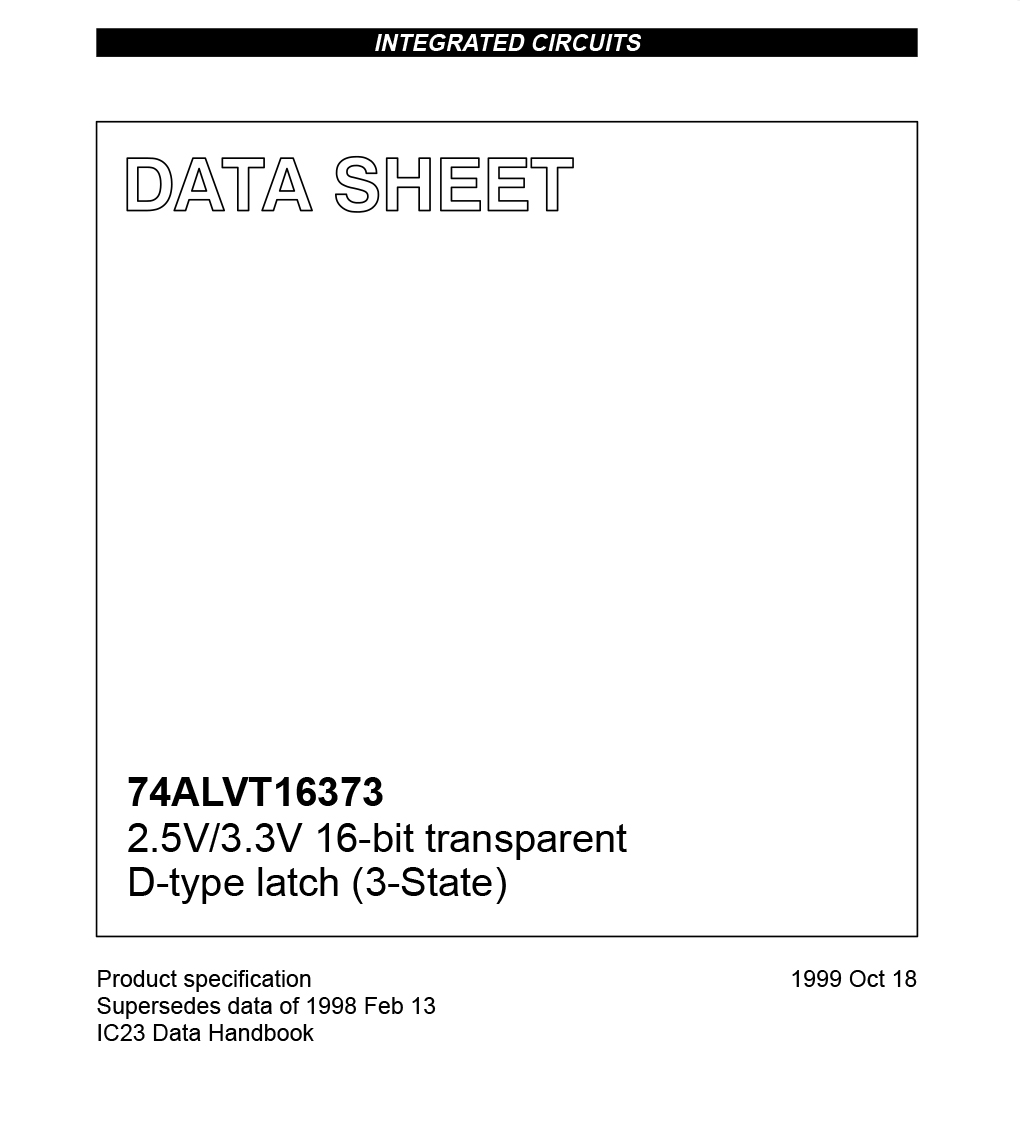

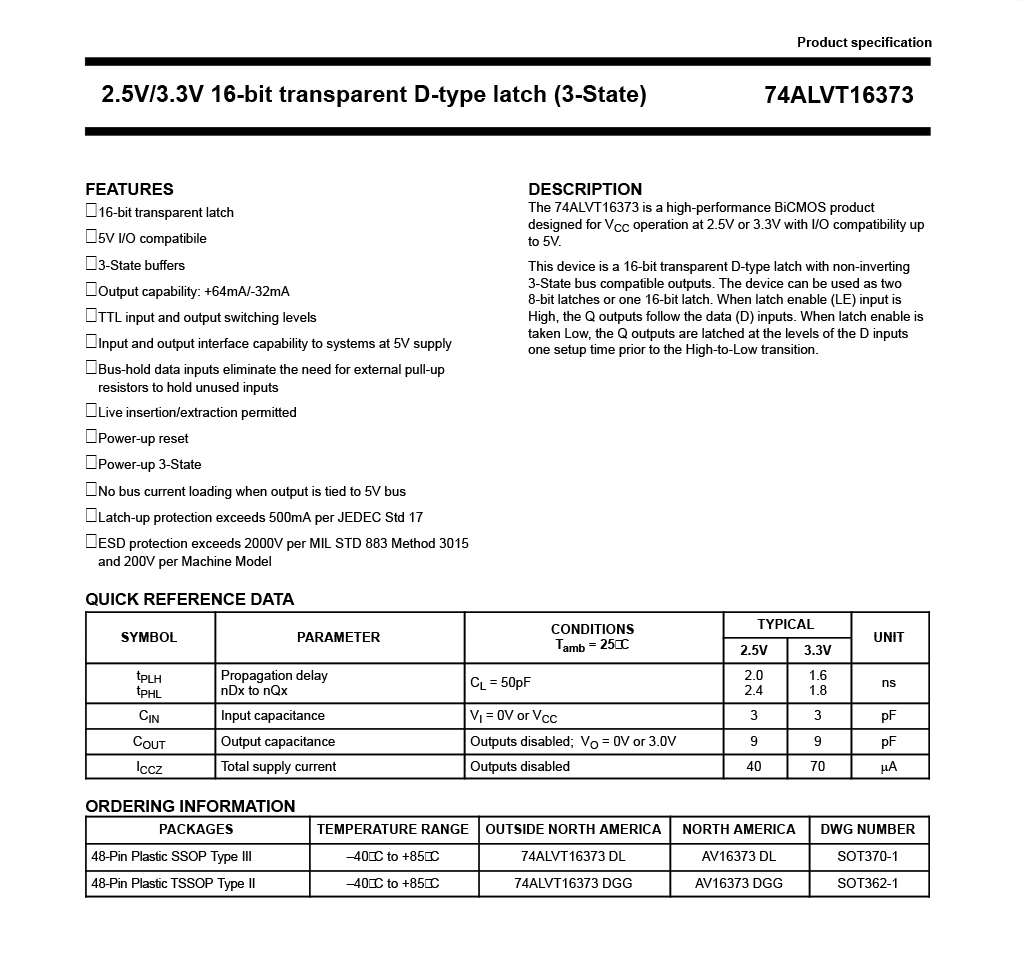

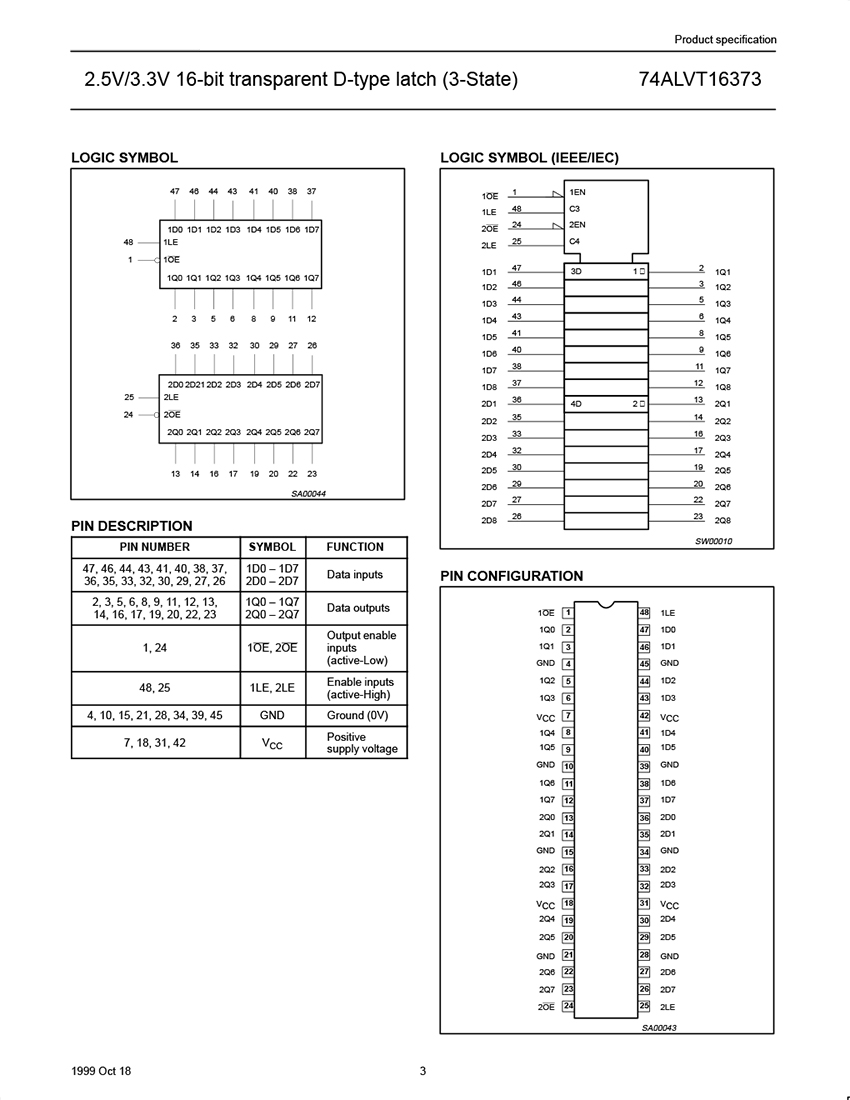

Product datasheet
For more information, please download
