Product Details
| DESCRIPTION The 74AHC1G/AHCT1G00 is a high-speed Si-gate CMOS device. The 74AHC1G/AHCT1G00 provides the 2-input NAND function. FEATURES ? Symmetrical output impedance ? High noise immunity ? ESD protection: – HBM EIA/JESD22-A114-A exceeds 2000 V – MM EIA/JESD22-A115-A exceeds 200 V – CDM EIA/JESD22-C101 exceeds 1000 V. ? Low power dissipation ? Balanced propagation delays ? Very small 5-pin package ? Output capability: standard ? Specified from ?40 to +125 °C. |
Product Description
| Type# | Description |
| ANSC PART# | ANSC - 74AHC1G00GV |
| Manufacturer | NXP |
| Part Package | SOIC |
| Package Description | TSSOP, TSOP5/6,.11,37 |
| Pin Count | 5 |
| Family | AHC |
| Length | 2.9 mm |
| Logic IC Type | NAND GATE |
| Max I(ol) | 0.008 A |
| Moisture Sensitivity Level | 1 |
| Number of Functions | 1 |
| Number of Inputs | 2 |
| Number of Terminals | 5 |
| Operating Temperature-Max | 125 °C |
| Operating Temperature-Min | -40 °C |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | TSSOP |
| Package Equivalence Code | TSOP5/6,.11,37 |
| Package Shape | RECTANGULAR |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH |
| Peak Reflow Temperature (Cel) | 260 |
| Prop. Delay@Nom-Sup | 9.5 ns |
| Propagation Delay (tpd) | 14.5 ns |
| Qualification Status | Not Qualified |
| Schmitt Trigger | NO |
| Seated Height-Max | 1.1 mm |
| Supply Voltage-Max (Vsup) | 5.5 V |
| Supply Voltage-Min (Vsup) | 2 V |
| Supply Voltage-Nom (Vsup) | 5 V |
| Surface Mount | YES |
| Technology | CMOS |
| Temperature Grade | AUTOMOTIVE |
| Terminal Finish | Tin (Sn) |
| Terminal Form | GULL WING |
| Terminal Pitch | 0.95 mm |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | 30 |
| Width | 1.5 mm |
Product Photos

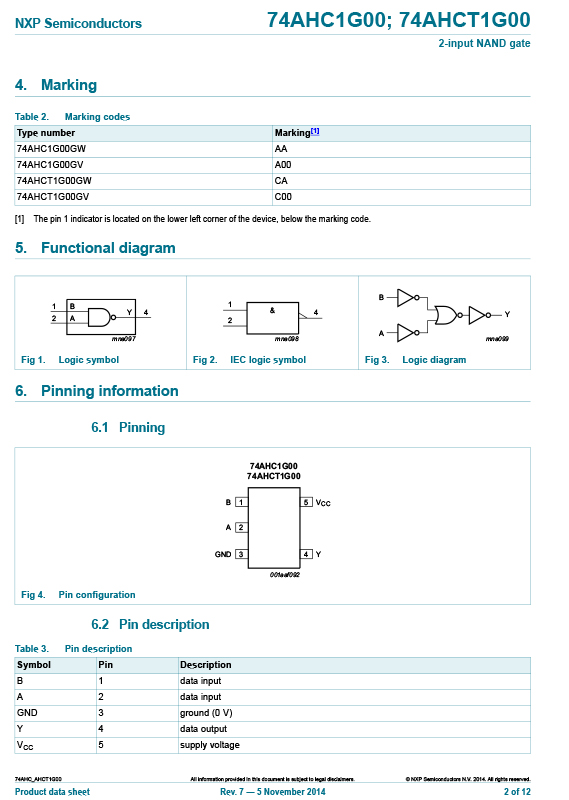

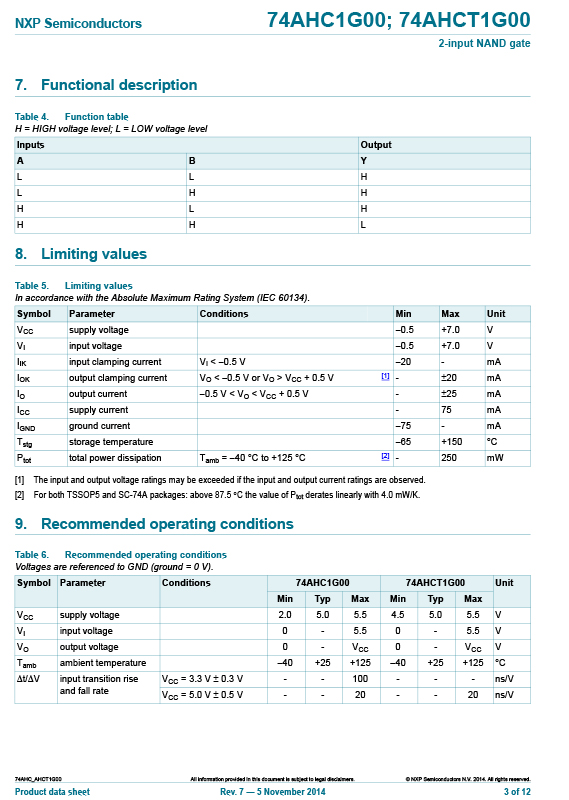

Product datasheet
