Product Details
DESCRIPTION
The UTC OPA2336 is a CMOS operational amplifier. It is operated on a 2.1V (Min.) single supply. A100k? load is driven by the rail-to-rail output and the accuracy of the output voltage is ensured at ± 3mV.
The UTC OPA2336 is characterized by its low quiescent current (20μA/amplifier), low offset voltage (125μV max), low input bias current (1pA), and high open-loop gain (115dB).
The UTC OPA2336 features completely independent circuitry for lowest crosstalk and freedom from interaction.
The UTC OPA2336 is particularly designed for battery-powered applications and the common-mode range extending to the negative supply makes it ideal for single-supply applications.
In addition to the applications mentioned above, the UTC OPA2336 is suitable for portable devices, high-Impedance applications, photodiode, pre-amps, precision integrators, medical instruments, and test equipment.
FEATURES
* Operating on a Single-Supply
* Rail-to-Rail Output (Accuracy: ± 3mv)
* Low Power Dissipation: IQ=20μA/Amplifier
* Low Offset Voltage up to 125μV (MAX.)
* Power Supply Specified from 2.3V to 5.5V
* Halogen Free
Product Description
ANSC PART# | ANSC- OPA4348AIPWR |
Part# | OPA4348AIPWR |
Type： | Integrated Circuits |
Manufactor | Texas Instruments |
DC | new |
Actual image of the product
TYPE | DESCRIPTION |
|---|---|
Category | Integrated Circuits (ICs) Linear Amplifiers Instrumentation, OP Amps, Buffer Amps |
Mfr | Texas Instruments |
Series | - |
Packaging | Tape & Reel (TR) Cut Tape (CT) |
Part Status | Active |
Amplifier Type | CMOS |
Number of Circuits | 4 |
Output Type | Rail-to-Rail |
Slew Rate | 0.5V/μs |
Gain Bandwidth Product | 1 MHz |
Current - Input Bias | 0.5 pA |
Voltage - Input Offset | 1 mV |
Current - Supply | 45μA (x4 Channels) |
Current - Output / Channel | 10 mA |
Voltage - Supply Span (Min) | 2.1 V |
Voltage - Supply Span (Max) | 5.5 V |
Operating Temperature | -40°C ~ 125°C |
Mounting Type | Surface Mount |
Package / Case | 14-TSSOP (0.173", 4.40mm Width) |
Supplier Device Package | 14-TSSOP |
Base Product Number | OPA4348 |

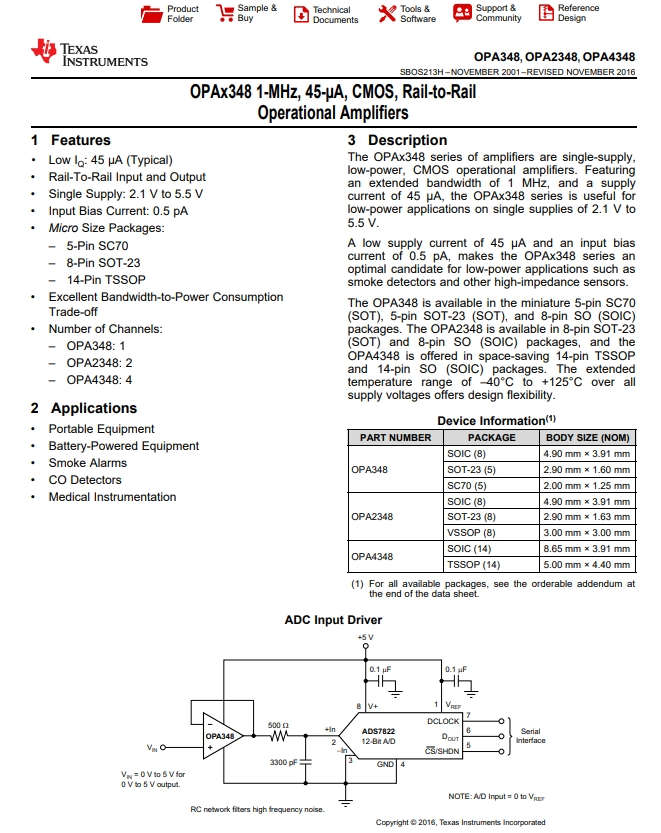

Product datasheet
For more information, please download
