| DESCRIPTION The 74LVC32A is a high-performance, low-power, low-voltage, Si-gate CMOS device, superior to most advanced CMOS compatible TTL families. Inputs can be driven from either 3.3 or 5 V devices. This feature allows the use of these devices as translators in a mixed 3.3 and 5 V environment. The 74LVC32A provides the 2-input OR function. FEATURES ? 5 V tolerant inputs for interfacing with 5 V logic ? Wide supply voltage range from 1.2 to 3.6 V ? CMOS low power consumption ? Direct interface with TTL levels ? Inputs accept voltages up to 5.5 V ? Complies with JEDEC standard no. 8-1A ? ESD protection: HBM EIA/JESD22-A114-A exceeds 2000 V MM EIA/JESD22-A115-A exceeds 200 V. ? Specified from ?40 to +85 °C and ?40 to +125 °C. |
Product Description
| Type# | Description |
| ANSC PART# | ANSC - 74LVC32APW |
| Ihs Manufacturer | Original |
| Part Package Code | TSSOP |
| Package Description | TSSOP, TSSOP14,.25 |
| Pin Count | 14 |
| Family | LVC/LCX/Z |
| Length | 5 mm |
| Load Capacitance (CL) | 50 pF |
| Logic IC Type | OR GATE |
| Max I(ol) | 0.024 A |
| Moisture Sensitivity Level | 1 |
| Number of Functions | 4 |
| Number of Inputs | 2 |
| Number of Terminals | 14 |
| Operating Temperature-Max | 125 °C |
| Operating Temperature-Min | -40 °C |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | TSSOP |
| Package Equivalence Code | TSSOP14,.25 |
| Package Shape | RECTANGULAR |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH |
| Peak Reflow Temperature (Cel) | 260 |
| Prop. Delay@Nom-Sup | 5 ns |
| Propagation Delay (tpd) | 5.5 ns |
| Qualification Status | Not Qualified |
| Schmitt Trigger | NO |
| Seated Height-Max | 1.1 mm |
| Supply Voltage-Max (Vsup) | 3.6 V |
| Supply Voltage-Min (Vsup) | 1.2 V |
| Supply Voltage-Nom (Vsup) | 3.3 V |
| Surface Mount | YES |
| Technology | CMOS |
| Temperature Grade | AUTOMOTIVE |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) |
| Terminal Form | GULL WING |
| Terminal Pitch | 0.65 mm |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | 30 |
| Width | 4.4 mm |

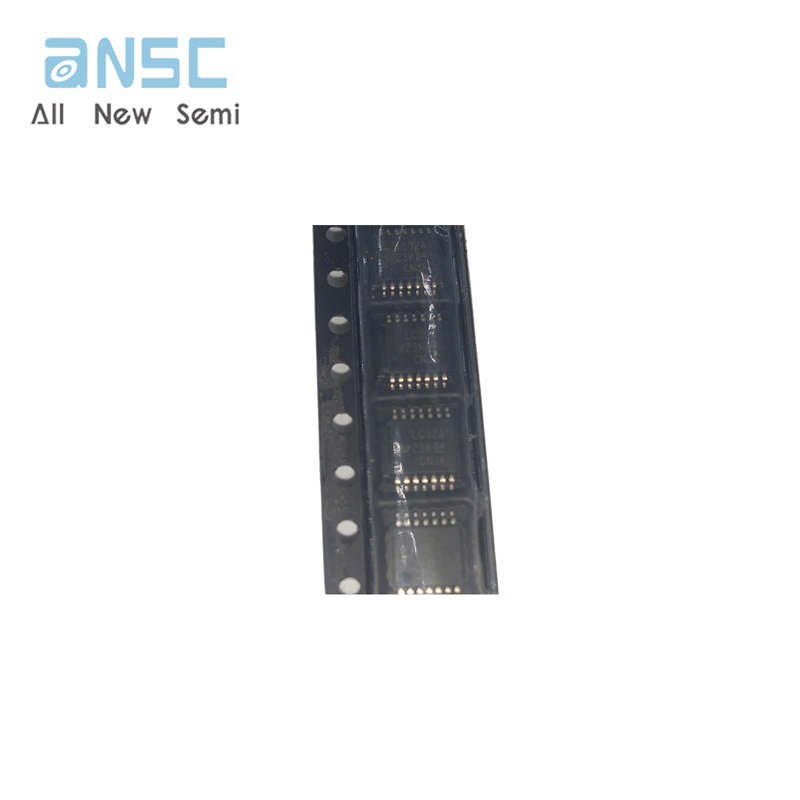

Product Photos

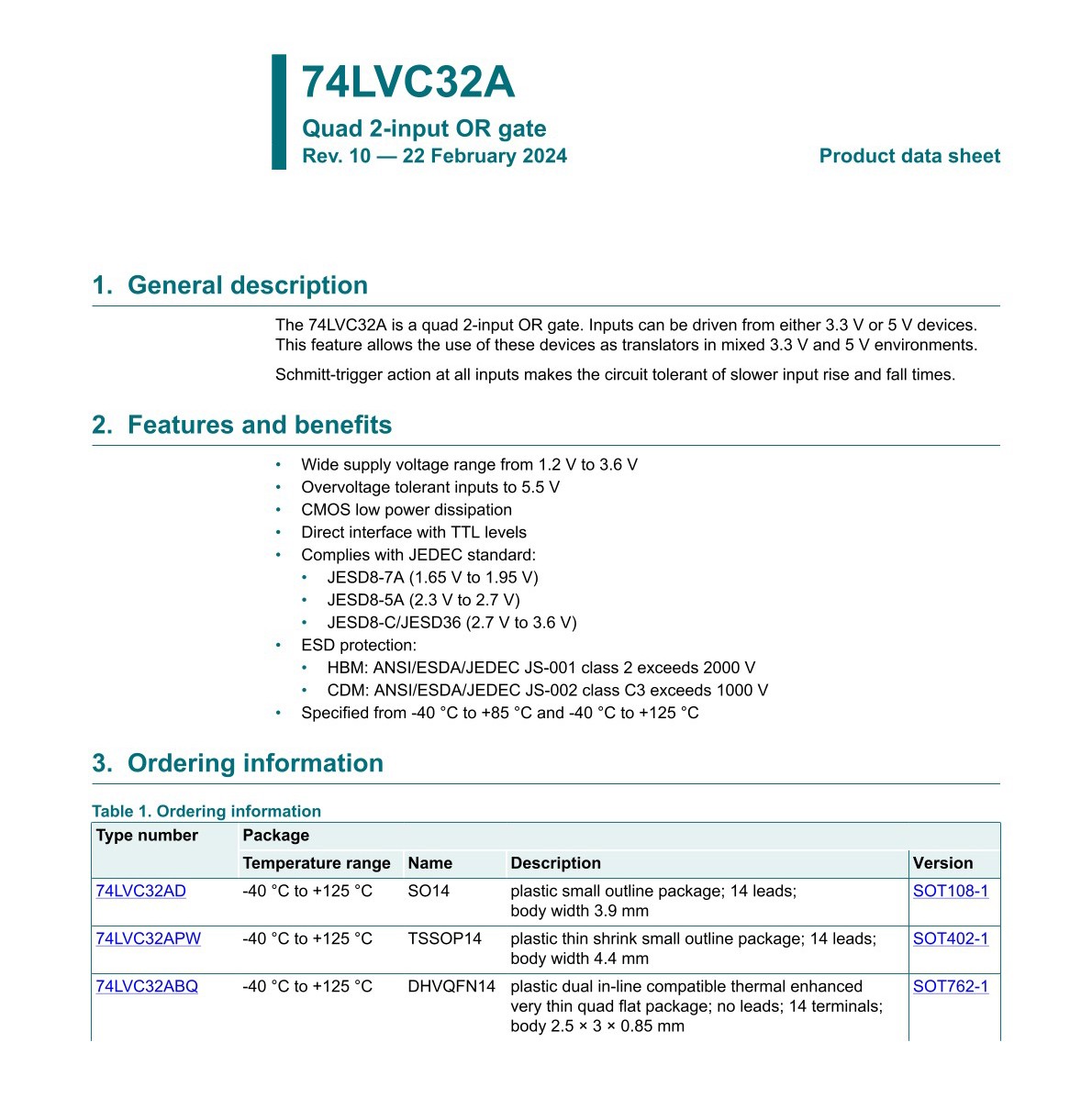

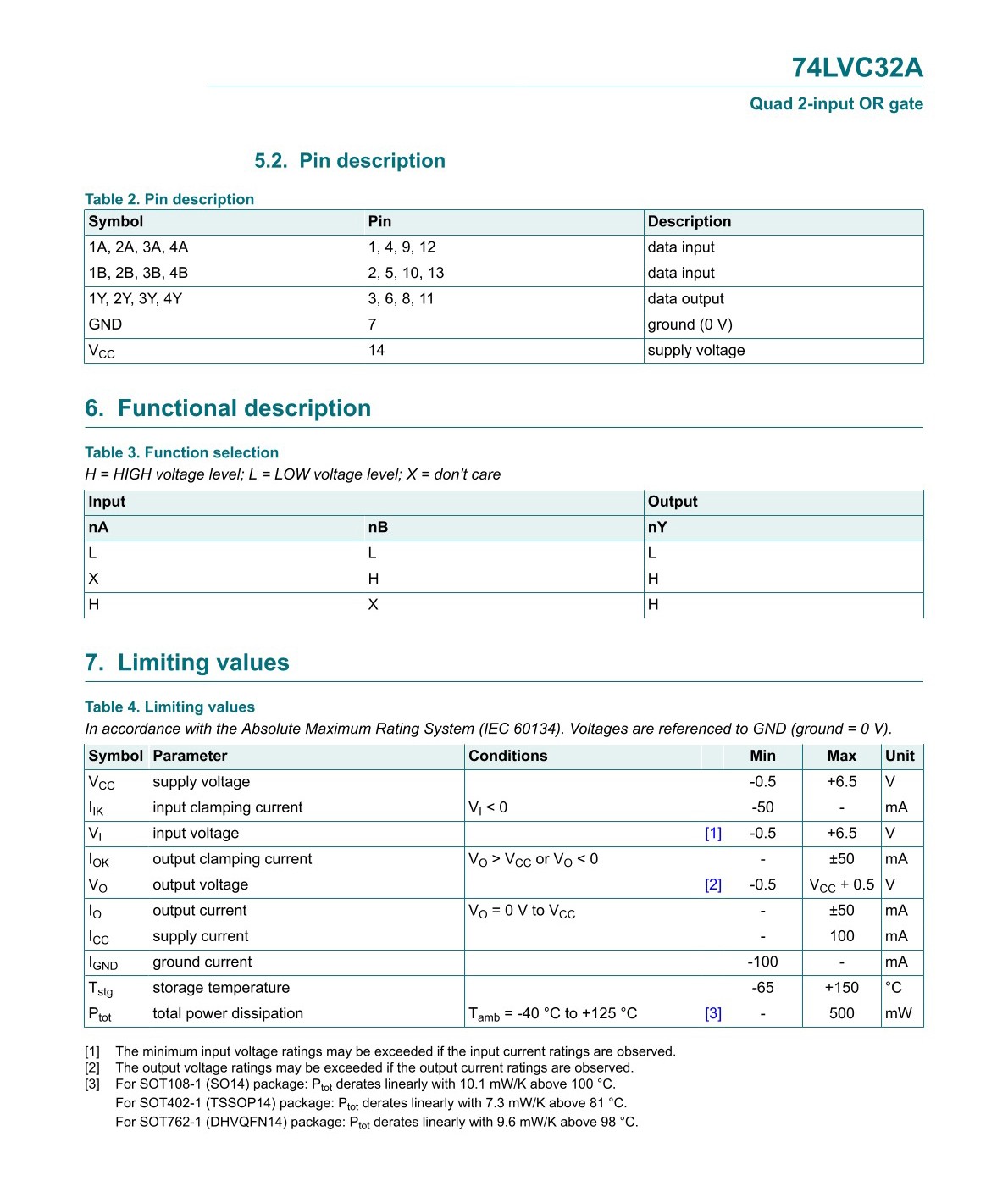

Product datasheet
