Product Details
Description
The LD2979 is a very low drop regulator available in SOT23-5L.
The very low drop-voltage and the very low quiescent current make them particularly suitable for low noise, low power applications and in battery powered systems.
Shutdown logic control function is available on five pin version (TTL compatible). This means that when the device is used as local regulator, it is possible to put a part of the board in standby, decreasing the total power consumption.
Features
? Very low dropout voltage (0.2 V typ. at 50 mA load)
? Very low quiescent current (typ. 500 μA at 50 mA load)
? Output current up to 50 mA
? Logic-controlled electronic shutdown
? Output voltages of 3.0 and 3.3 V
? Internal current and thermal limit
? Supply voltage rejection: 63 dB (typ)
? Only 1 μF for stability
? Temperature range: -25 °C to 125 °C
? Package available: SOT23-5L
Product Description
ANSC PART# | ANSC- LD29150DT33R |
Part# | LD29150DT33R |
Type： | Integrated Circuits |
Manufactor | STMicroelectronics |
DC | new |
Actual image of the product
Product Attributes
TYPE | DESCRIPTION |
|---|---|
Category | Integrated Circuits (ICs) Power Management (PMIC) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators |
Mfr | STMicroelectronics |
Series | - |
Packaging | Tape & Reel (TR) Cut Tape (CT) |
Part Status | Active |
Output Configuration | Positive |
Output Type | Fixed |
Number of Regulators | 1 |
Voltage - Input (Max) | 14V |
Voltage - Output (Min/Fixed) | 3.3V |
Voltage - Output (Max) | - |
Voltage Dropout (Max) | 0.7V @ 1.5A |
Current - Output | 1.5A |
Current - Quiescent (Iq) | 180 μA |
Current - Supply (Max) | 80 mA |
PSRR | 67dB (120Hz) |
Control Features | - |
Protection Features | Over Current, Over Temperature |
Operating Temperature | -40°C ~ 125°C |
Mounting Type | Surface Mount |
Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
Supplier Device Package | DPAK |
Base Product Number | LD29150 |

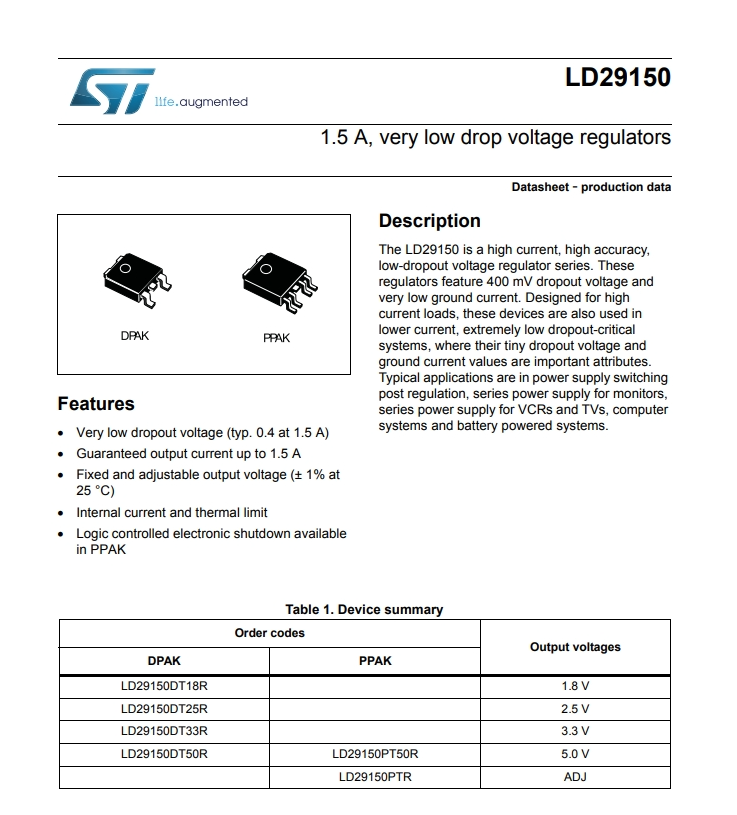

Product datasheet
For more information, please download
