Product Details
For Inverter Lighting Equipment
Features
? Best suited for push-pull inverter circuit.
? High breakdown voltage (VCBO=1200V).
? High reliability (Adoption of HVP process).
? Adoption of MBIT process.
Product Description
| Type# | Description |
| ANSC PART# | ANSC- TS79M05CP |
| Ihs Manufacturer | Original |
| Package Description | TO-252, SMSIP3H,.38,90TB |
| Adjustability | FIXED |
| Dropout Voltage1-Nom | 2 V |
| Input Voltage Absolute-Max | 35 V |
| Input Voltage-Max | 25 V |
| Input Voltage-Min | 7.5 V |
| JESD-30 Code | R-PSSO-G2 |
| Length | 6.525 mm |
| Line Regulation-Max | 0.05% |
| Load Regulation-Max | 0.10% |
| Moisture Sensitivity Level | 1 |
| Number of Functions | 1 |
| Number of Outputs | 1 |
| Number of Terminals | 2 |
| Operating Temperature TJ-Max | 125 °C |
| Operating Temperature TJ-Min | |
| Output Current1-Max | 0.5 A |
| Output Voltage1-Max | 5.25 V |
| Output Voltage1-Min | 4.75 V |
| Output Voltage1-Nom | 5 V |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | TO-252 |
| Package Equivalence Code | SMSIP3H,.38,90TB |
| Package Shape | RECTANGULAR |
| Package Style | SMALL OUTLINE |
| Peak Reflow Temperature (Cel) | 260 |
| Qualification Status | Not Qualified |
| Regulator Type | FIXED NEGATIVE SINGLE OUTPUT STANDARD REGULATOR |
| Seated Height-Max | 2.6 mm |
| Surface Mount | YES |
| Technology | BIPOLAR |
| Terminal Form | GULL WING |
| Terminal Pitch | 2.3 mm |
| Terminal Position | SINGLE |
| Voltage Tolerance-Max | 5% |
| Width | 5.5 mm |
Product Photos

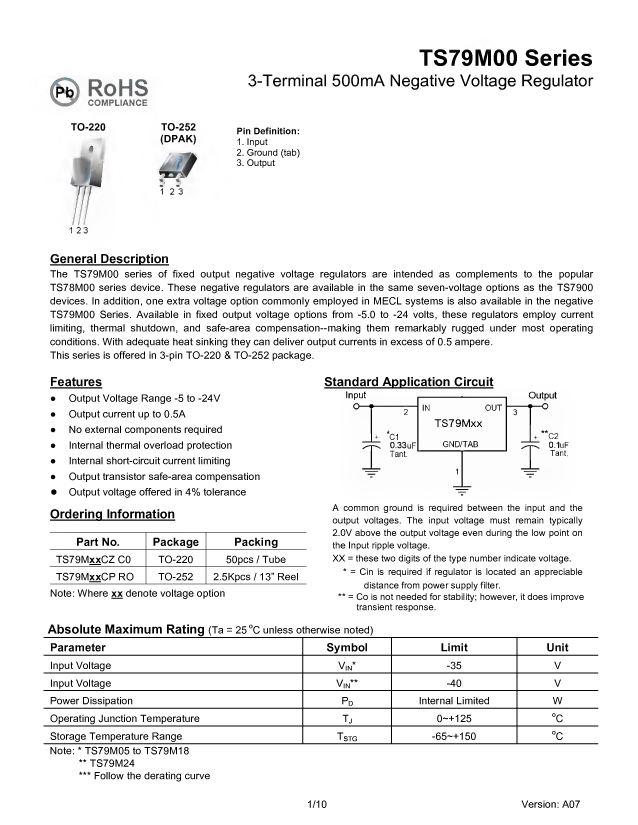

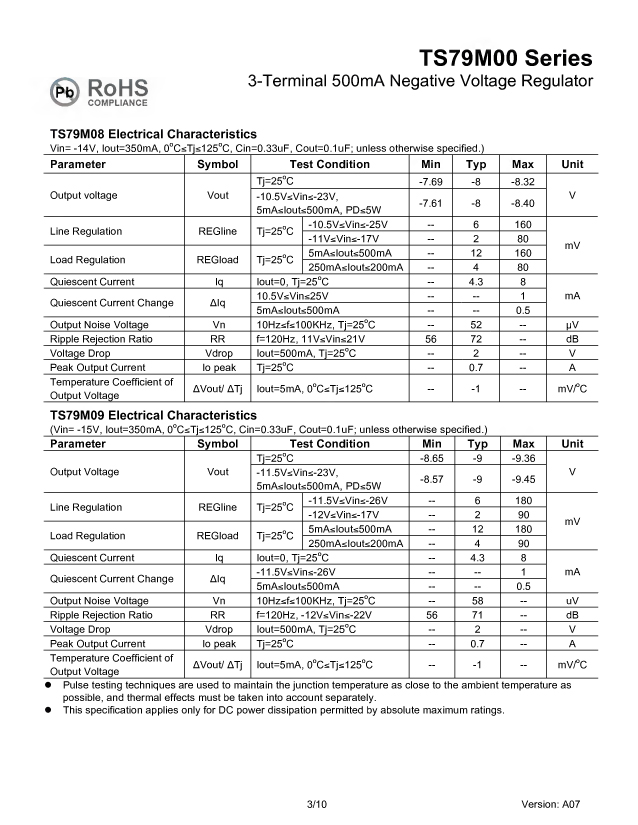

Product datasheet
For more information, please download
