Product Details

   General Description

The MAX3221E/MAX3223E/MAX3243E are 3V-powered EIA/TIA-232 and V.28/V.24 communications interfaces with automatic shutdown/wakeup features, high data rate capabilities, and enhanced electrostatic discharge (ESD) protection. All transmitter outputs and receiver inputs are protected to ±15kV using IEC 1000-4-2 Air Gap Discharge, to ±8kV using IEC 1000-4-2 Contact Discharge, and to ±15kV using the Human Body Model.

    Features

? For Space-Constrained Applications:
MAX3228E/MAX3229E: ±15kV ESD-Protected, +2.5V to +5.5V RS-232 Transceivers in
UCSP? MAX3222E/MAX3232E/MAX3237E/MAX3241E/MAX3246E:
±15kV ESD-Protected
Down to 10nA, +3.0V to +5.5V, Up to 1Mbps, True RS-232 Transceivers
(MAX3246E Available in a UCSP Package)
? For Data Cable Applications:
MAX3380E/MAX3381E: +2.35V to +5.5V, 1μA, 2Tx/2Rx RS-232 Transceivers with ±15kV
ESD Protected I/O and Logic Pins

     Applications

Notebook, Subnotebook, and Palmtop Computers
Cellular Phones
Battery-Powered Equipment
Handheld Equipment
Peripherals
Printers

Product Description

Actual image of the product

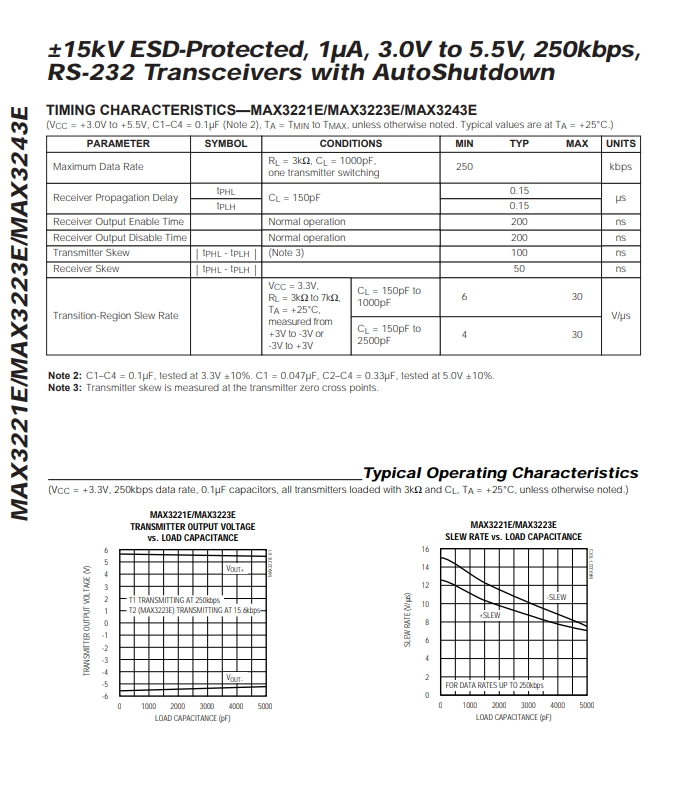

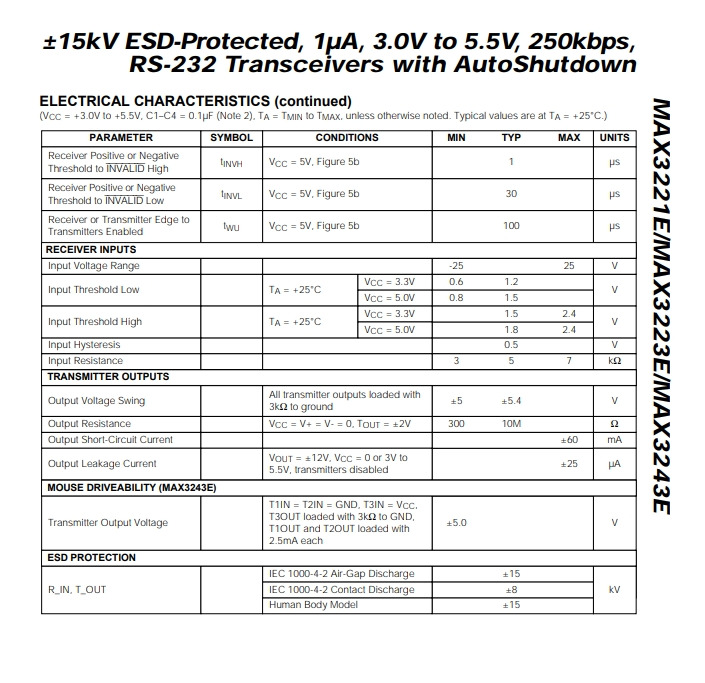

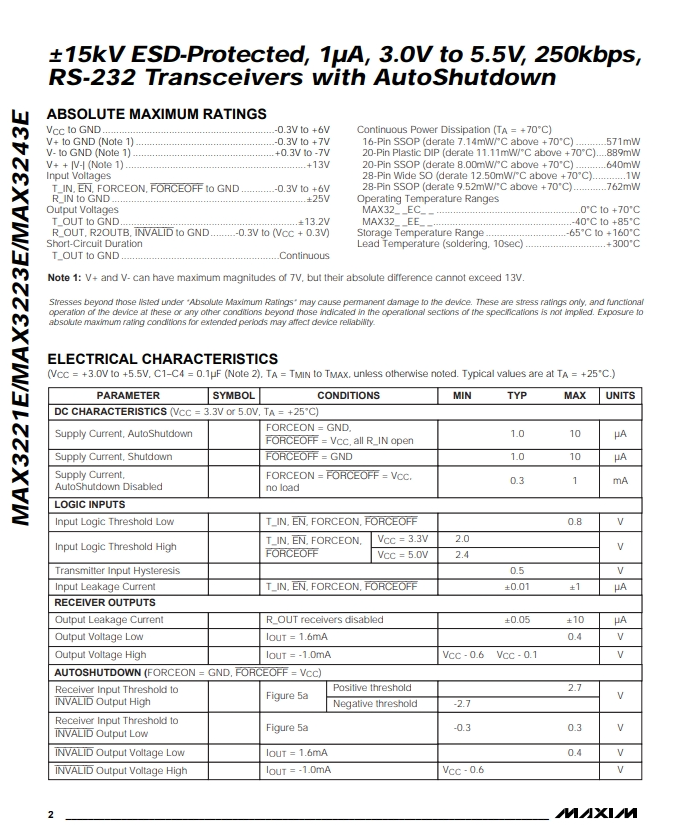

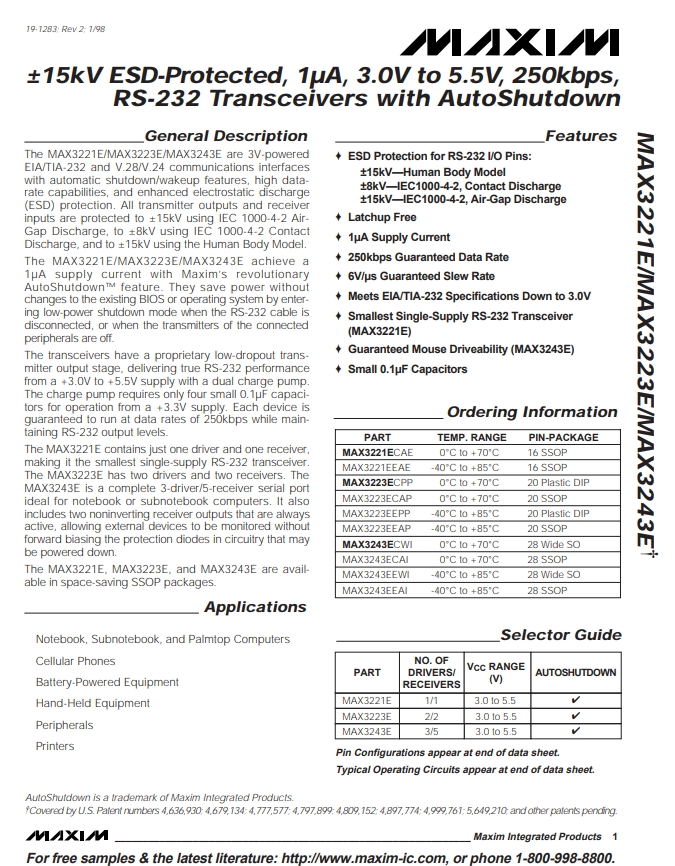

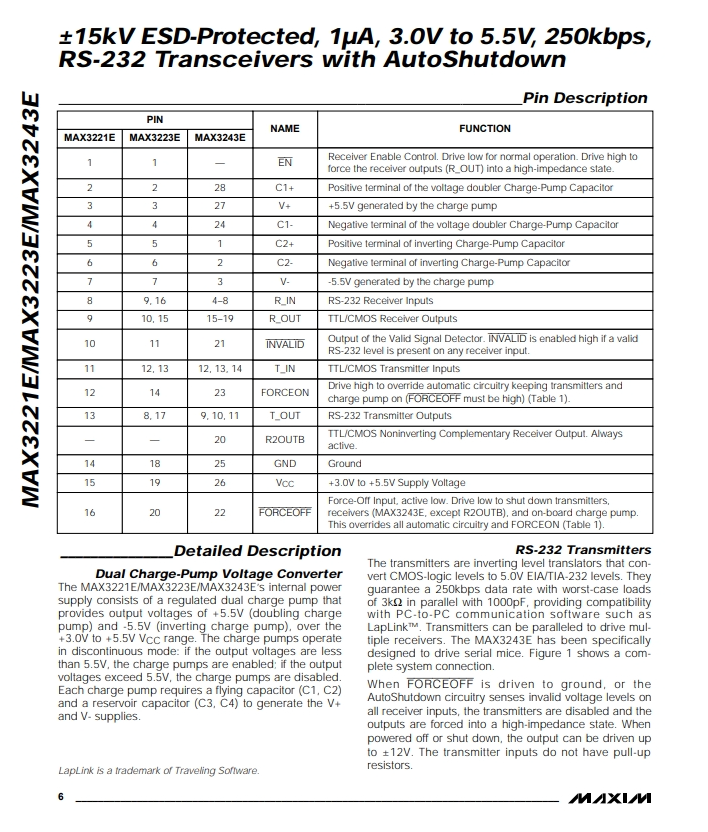

       Product datasheet

For more information, please download

Payment&Transportation

Official Certificate&Certificate

Standard packaging

Multiple product supply

Welcome to visit our company

Warehouse Real Shot
