OPA320AIDBVR CMOS Op-Amp Introduction
OPA320AIDBVR is ideal for single-supply, low-power applications.
They are also well-suited for driving sampling analog-to-digital converters due to their low noise (7 nV/Hz) and high-speed operation (ADCs).
Signal conditioning and sensor amplification are two other applications.
The OPA320 has a linear input stage with zero crossover distortion that provides an excellent common-mode rejection ratio (CMRR) of typically 114 dB across the entire input range.
The input common-mode range exceeds the negative and positive supply rails by 100 mV.
Typically, the output voltage swings within 10 mV of the rails.
Product Features
Slew Rate: 10 V/μs
Quiescent Current: 1.45 mA/Ch
Low Noise: 7 nV/√Hz at 10 kHz
Low Offset Voltage: 150 μV (Maximum)
Low Input Bias Current: 0.9 pA (Maximum)
High CMRR: 114 dB
SOT-23, VSSOP, SON, and SOIC Small Packages
Wide Bandwidth: 20 MHz
Unity-Gain Stable
Rail-to-Rail I/O
Single-Supply Voltage Range: 1.8 V to 5.5 V
Product Applications
Test and Measurement Equipment
Communications
Transimpedance Amplifiers
High-Z Sensor Signal Conditioning
Active Filters
Input/Output ADC/DAC Buffers
Motor Control Loops
Programmable Logic Controllers (PLCs)
Product Description
Type | Description |
|---|---|
ANSC PART# | ANSC - OPA320AIDBVR |
Category | Integrated Circuits (ICs) Linear Amplifiers Instrumentation, Op Amps, Buffer Amps |
Mfr | Texas Instruments |
Series | - |
Packaging | Tape & Reel (TR) Cut Tape (CT) |
Part Status | Active |
Amplifier Type | General Purpose |
Number of Circuits | 1 |
Output Type | Rail-to-Rail |
Slew Rate | 10V/μs |
Gain Bandwidth Product | 20 MHz |
Current - Input Bias | 0.2 pA |
Voltage - Input Offset | 40 μV |
Current - Supply | 1.5mA |
Current - Output / Channel | 65 mA |
Voltage - Supply Span (Min) | 1.8 V |
Voltage - Supply Span (Max) | 5.5 V |
Operating Temperature | -40°C ~ 125°C |
Mounting Type | Surface Mount |
Package / Case | SC-74A, SOT-753 |
Supplier Device Package | SOT-23-5 |
Base Product Number | OPA320 |
Actual image of the product

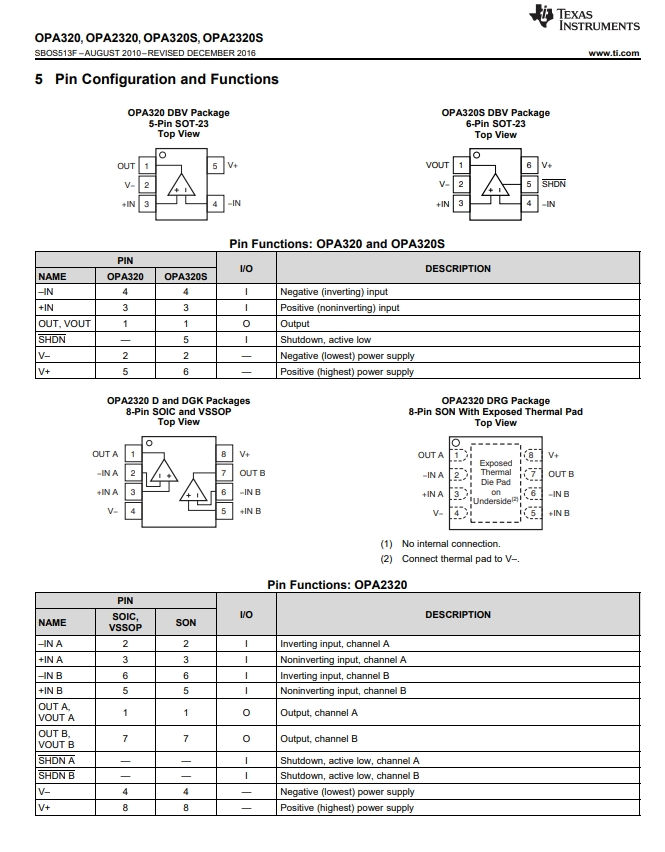

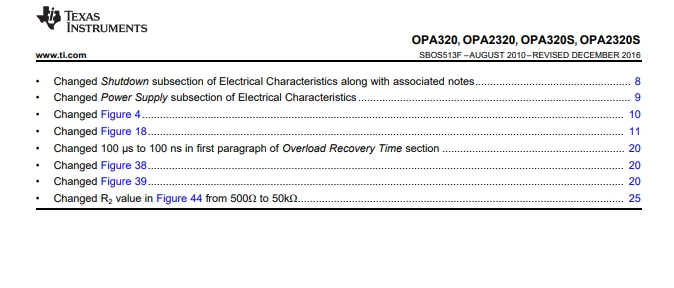

Product datasheet
For more information, please download
