LM2675M-5.0 Description
Utmel Electronics' distribution of the LM2675M-5.0. It falls under the category of switching voltage regulators.
It is used in a variety of industries, such as communications equipment. access to fixed broadband lines Business systems business projectors electronic devices electronics on the go.
And these are the primary criteria for this part: Logic Function Number:2675; Operating Temperature Maximum:125°C; Frequency:260kHz; IC Generic Number:2675; Input Voltage Max:40V; Input Voltage Min:8V; It is also environmentally friendly and RoHS compliant (lead free).
LM2675M-5.0 Features
Efficiency up to 96%
TTL Shutdown Capability
Uses Readily Available Inductors
±1.5% Max Output Voltage Variation
Guaranteed 1A Output Load Current
Requires only 5 External Components
Wide Input Voltage Range: 8V to 40V
260kHz Fixed Frequency Internal Oscillator
Thermal Shutdown and Current Limit Protection
LM2675M-5.0 Applications
Enterprise systems
Personal electronics
Communications equipment
Product Description
ANSC PART# | ANSC- LM2675M-5.0 |
Part# | LM2675M-5.0 |
Type： | Integrated Circuits |
Manufactor | Texas Instruments |
DC | new |
Actual image of the product
TYPE | DESCRIPTION |
|---|---|
Category | Integrated Circuits (ICs) Power Management (PMIC) Voltage Regulators - DC DC Switching Regulators |
Mfr | Texas Instruments |
Series | SIMPLE SWITCHER? |
Packaging | Tube |
Part Status | Last Time Buy |
Function | Step-Down |
Output Configuration | Positive |
Topology | Buck |
Output Type | Fixed |
Number of Outputs | 1 |
Voltage - Input (Min) | 6.5V |
Voltage - Input (Max) | 40V |
Voltage - Output (Min/Fixed) | 5V |
Voltage - Output (Max) | - |
Current - Output | 1A |
Frequency - Switching | 260kHz |
Synchronous Rectifier | No |
Operating Temperature | -40°C ~ 125°C (TJ) |
Mounting Type | Surface Mount |
Package / Case | 8-SOIC (0.154", 3.90mm Width) |
Supplier Device Package | 8-SOIC |
Base Product Number | LM2675 |

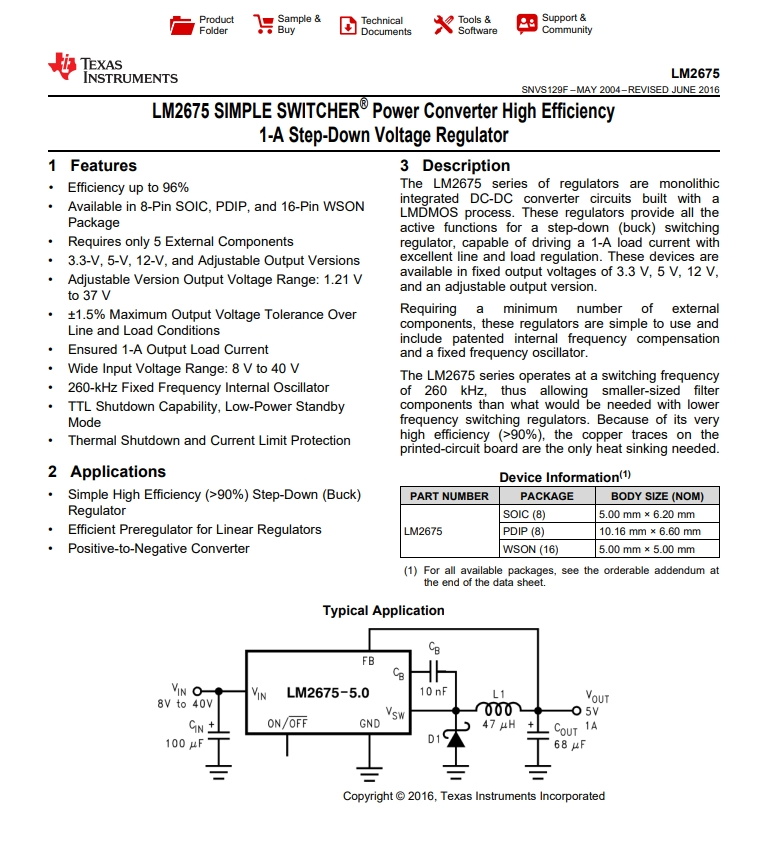

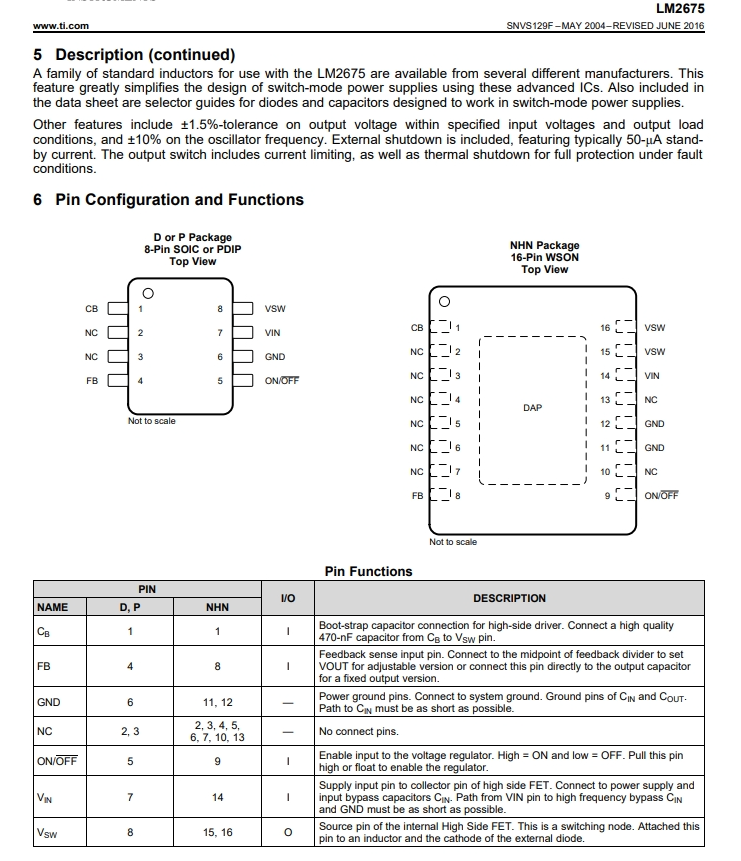

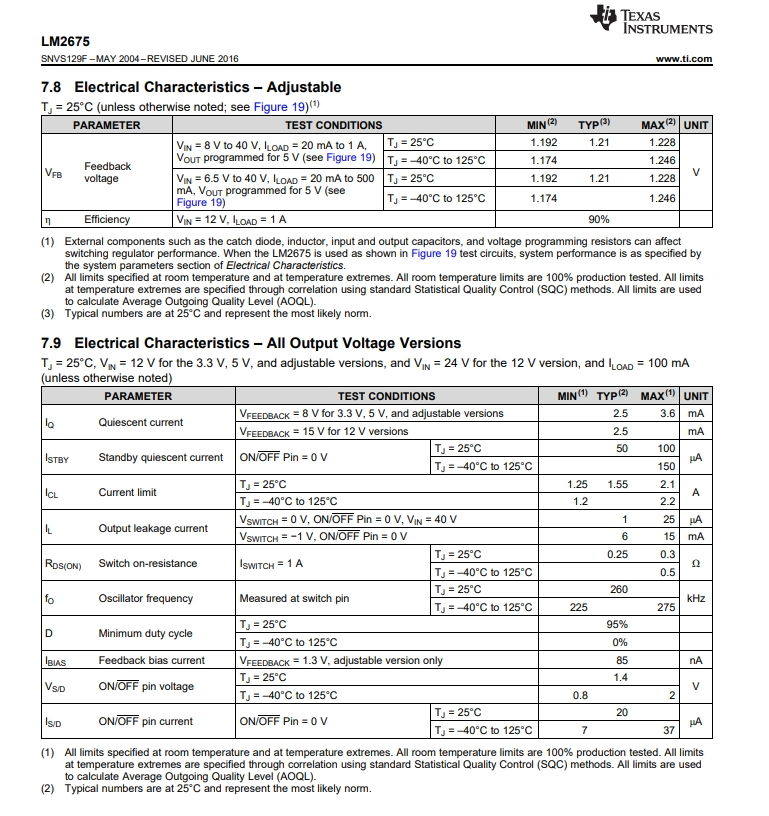

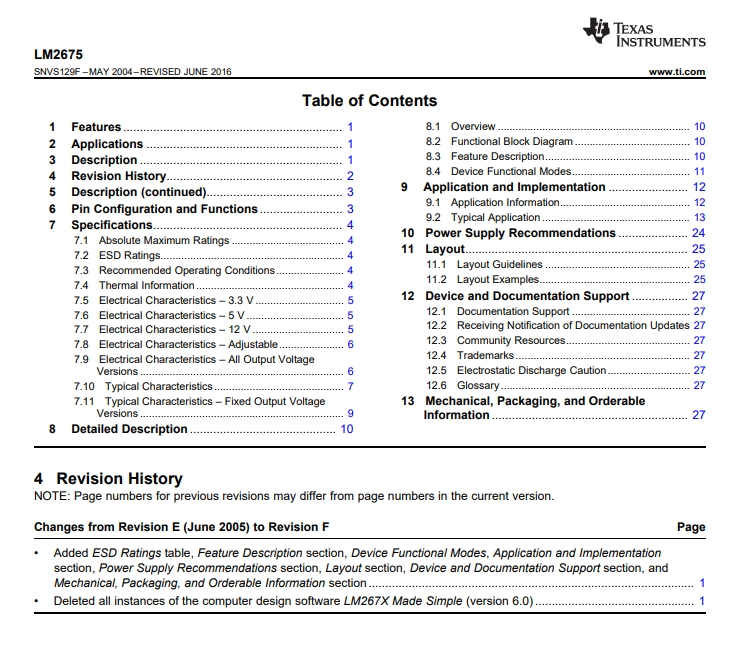

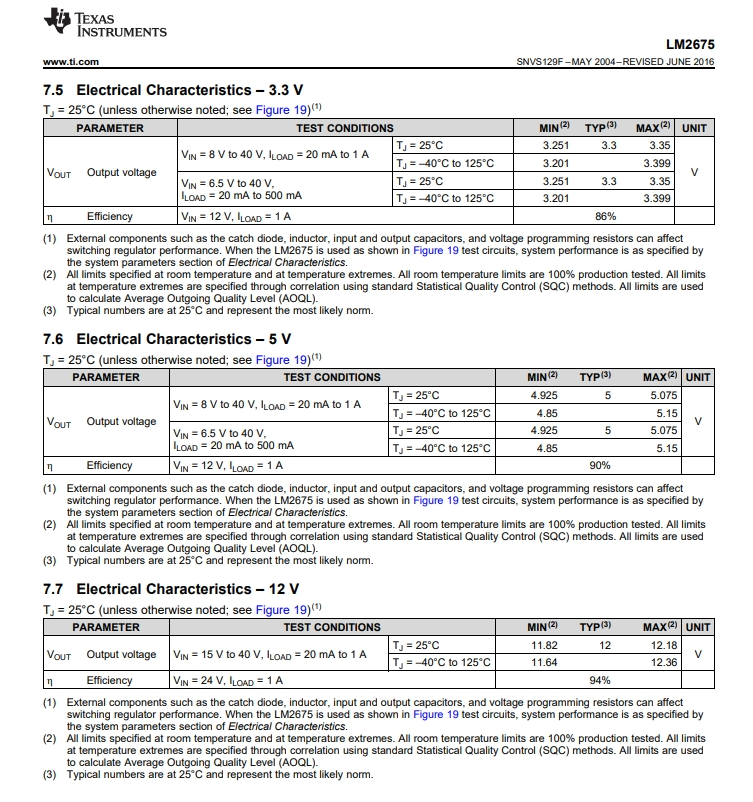

Product datasheet
For more information, please download
