Product Details
INTRODUCTION
SN65004 Series is 4 seconds one-channel single chip voice synthesizer IC which contains a PWM Direct Drive Circuit. There is one 2-bit I/O port and built in a tiny controller. By programming through the tiny controller, user’s applications including section combination, trigger modes, output status, and other logic functions can be easily implemented.
FEATURES
? Single power supply 2.4V – 5.1V
? 4 seconds voice capacity is provided
? Built in a tiny controller
? One 2-bit I/O port is provided
? 32*4 bits RAM are provided
? Maximum 16k program ROM is provided
? Readable ROM code data
? Built in a high quality speech synthesizer
? Adaptive playing speed from 2.5k-20kHz is provided
? Built in a PWM Direct Drive circuit output BUO1 and BUO2 directly connected to Speaker for sound output
? System clock: 1MHZ
Product Description
ANSC PART# | ANSC- SN65HVD50D |
Part# | SN65HVD50D |
Type： | Integrated Circuits |
Manufactor | Texas Instruments |
DC | new |
Actual image of the product
TYPE | DESCRIPTION |
|---|---|
Category | Integrated Circuits (ICs) Interface Drivers, Receivers, Transceivers |
Manufacturer | Texas Instruments |
Series | - |
Packaging | Tube |
Part Status | Obsolete |
Type | Transceiver |
Protocol | RS422, RS485 |
Number of Drivers/Receivers | 1/1 |
Duplex | Full |
Receiver Hysteresis | 50 mV |
Data Rate | 25Mbps |
Voltage - Supply | 4.5V ~ 5.5V |
Operating Temperature | -40°C ~ 85°C |
Mounting Type | Surface Mount |
Package / Case | 8-SOIC (0.154", 3.90mm Width) |
Supplier Device Package | 8-SOIC |
Base Product Number | 65HVD50 |

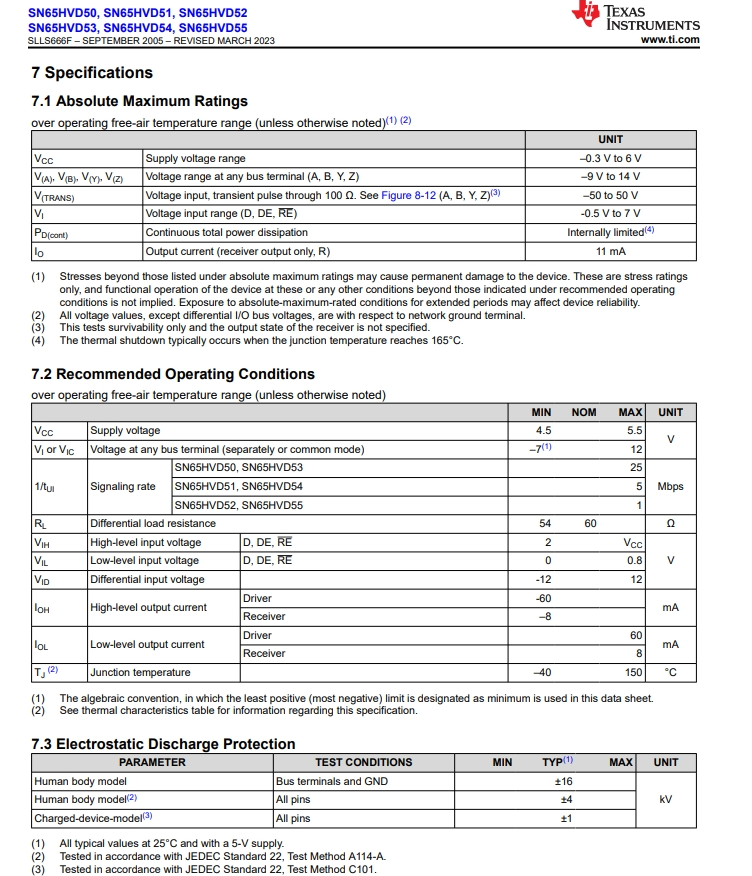

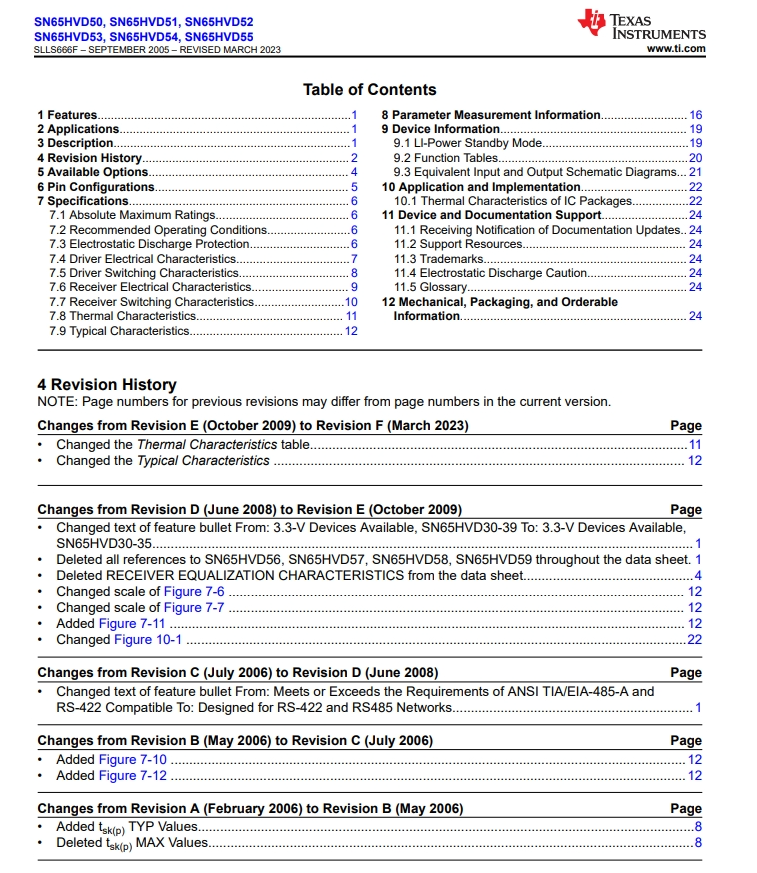

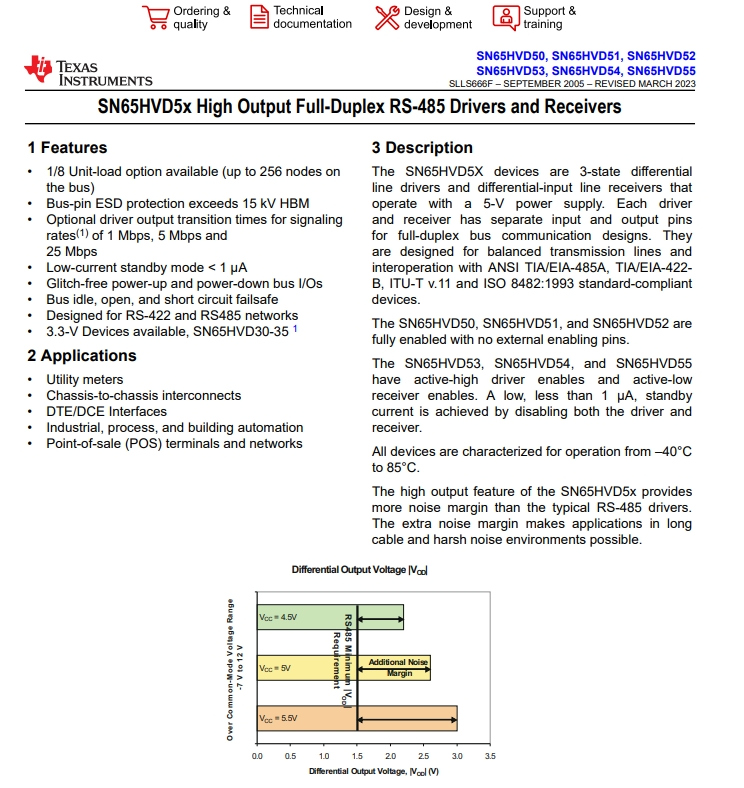

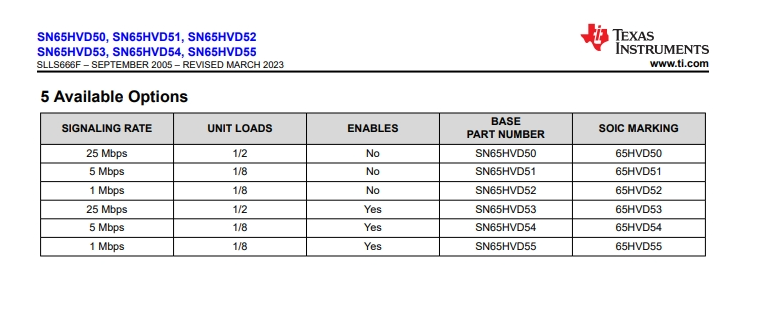

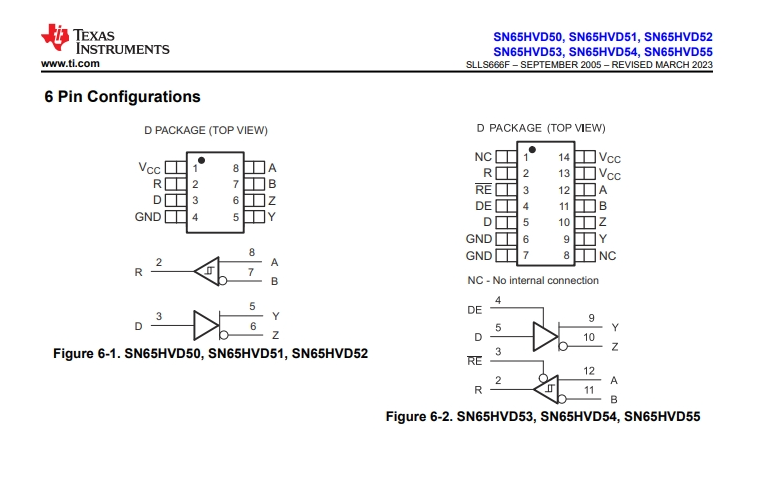

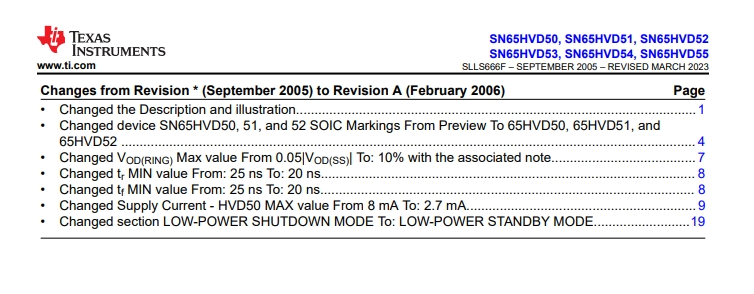

Product datasheet
For more information, please download
