LM22676MRX-ADJ/NOPB Overview
A Tape & Reel (TR) package is used in this voltage regulator to optimize performance. In this voltage regulator, 8 terminations are present. A SWITCHING REGULATOR analog IC is used in this voltage regulator 12v, which is the type of analog IC that this voltage regulator 12v is equipped with. In order to save space, this voltage regulator is packaged in the 8-PowerSOIC (0.154, 3.90mm Width) package. 1 outputs of voltage regulator are configured. Adjustable outputs are generated on the output pins of this adjusting voltage regulator. A voltage regulator 12v such as this one fits the Surface Mount mounting bracket. Keeping dc to dc voltage regulator's operating temperature at -40°C~125°C TJ is essential when operating. A DC-DC switching regulator such as this one switches at 500kHz. Due to its 260 high peak reflow temperature, this voltage regulator 12v is virtually indestructible. An input voltage of 12V is required to meet the requirements of the switching regulator operation. As a member of the LM22676 family of DC/DC regulators, this is a DC/DC regulator. The voltage DC DC switching regulator can provide is up to 1.285V volts. During switching regulator operation, 8 pins are used. Ideally this switch regulator should have an output voltage of about 1.285V at the very least. A maximum output current of 3A A is provided to meet the switching regulator operation requirements. The maximal output voltage of 37V allows adjusting voltage regulator for simple operation. DC DC switching regulator offers a maximum output voltage of 37V as its maximum output voltage. Known as a switching DC-DC regulator, this electronic voltage regulator 12v is part of the SIMPLE SWITCHER? family. DC-DC switching regulator with supply voltage 42V. There are no external factors that affect DC DC switching regulator's consumption of 3.4mA A of quiescent current. In order to ensure reliable performance, a dc to dc voltage regulator's minimum supply voltage of 4.5V V is required. There is a maximum input voltage of 42V that DC DC switching regulator can operate from.
LM22676MRX-ADJ/NOPB Features
1 outputs
Peak reflow temperature (Cel) of 260
8 pins
Operating supply voltage of 42V
LM22676MRX-ADJ/NOPB Applications
There are a lot of Texas Instruments
LM22676MRX-ADJ/NOPB Voltage Regulators applications.
Various precision measuring instruments
Various precision measuring detectors
Flaw detection equipment
Balance equipment
Industrial robots
Industrial controllers
Die casting equipment
Injection molding machinery
Various CNC machine tools
Machining centers
Product Description
Texas Instruments LM22676MRX-ADJ/NOPB
DC DC Voltage Regulator Tape & Reel (TR) 8-Pin 8 Terminals LM22676 500kHz Switching Regulator IC Chip
8 Terminals 8-Pin LM22676 DC DC Voltage Regulator SWITCHING REGULATOR 1 Outputs 500kHz Tape & Reel (TR) 8-PowerSOIC (0.154, 3.90mm Width)
ANSC PART# | ANSC- LM22676MRX-ADJ/NOPB |
Part# | LM22676MRX-ADJ/NOPB |
Type： | Integrated Circuits(ICs) |
Manufactor | Texas Instruments |
DC | new |
Package / Case | 8-SO PowerPad |
Supplier Device Package | Tape & Reel (TR)Cut Tape (CT) |
Product Attributes
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - DC DC Switching Regulators | |
| Mfr | Texas Instruments |
| Series | SIMPLE SWITCHER廬 |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel廬 | |
| Product Status | Active |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 4.5V |
| Voltage - Input (Max) | 42V |
| Voltage - Output (Min/Fixed) | 1.285V |
| Voltage - Output (Max) | 37V |
| Current - Output | 3A |
| Frequency - Switching | 500kHz |
| Synchronous Rectifier | No |
| Operating Temperature | -40擄C ~ 125擄C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-PowerSOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SO PowerPad |
| Base Product Number | LM22676 |
Actual image of the product

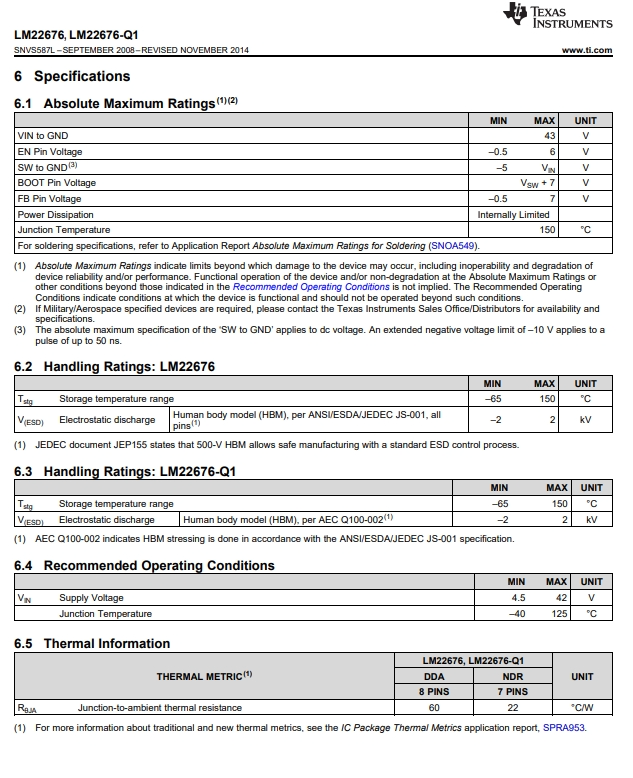

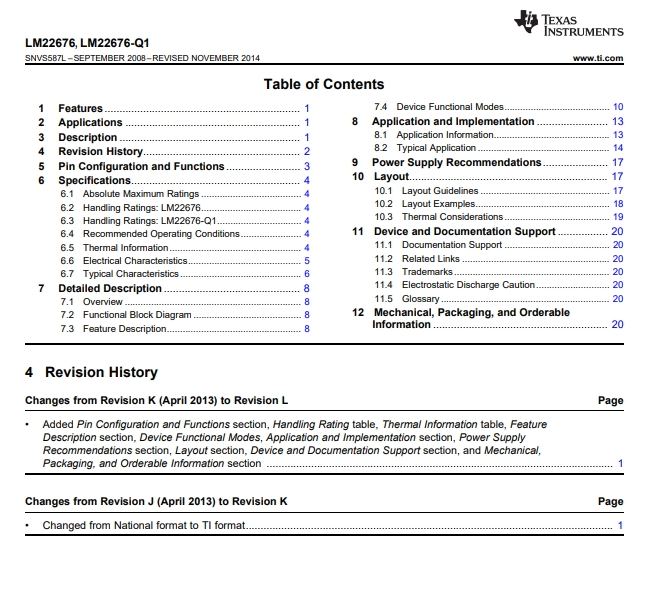

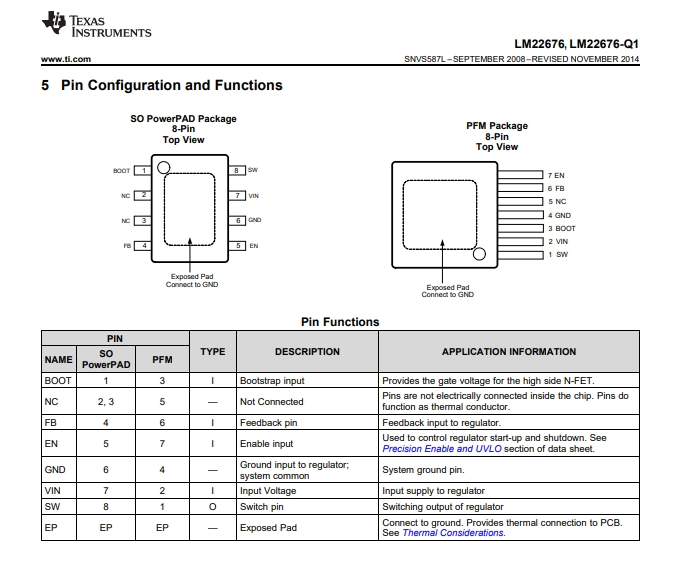

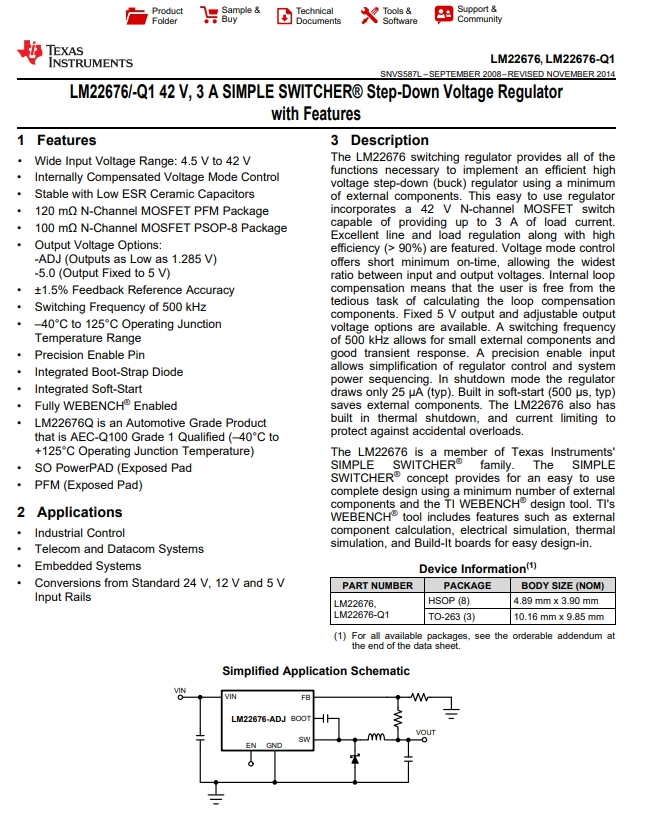

Product datasheet
