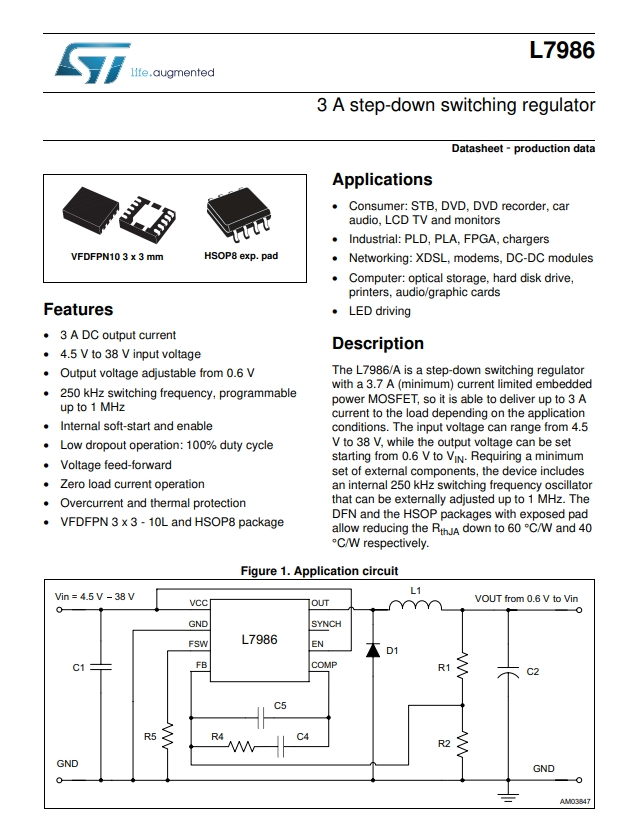

Description
The L7986/A is a step-down switching regulator with a 3.7 A (minimum) current limited embedded power MOSFET, so it is able to deliver up to 3 A current to the load depending on the application conditions. The input voltage can range from 4.5 V to 38 V, while the output voltage can be set starting from 0.6 V to VIN. Requiring a minimum set of external components, the device includes an internal 250 kHz switching frequency oscillator that can be externally adjusted up to 1 MHz. The DFN and the HSOP packages with exposed pad allow reducing the RthJAdown to 60 °C/W and 40 °C/W respectively.
All features
3 A DC output current
4.5 V to 38 V input voltage
Output voltage adjustable from 0.6 V
250 kHz switching frequency, programmable up to 1 MHz
Internal soft-start and enable
Low dropout operation: 100% duty cycle
Voltage feed-forward
Zero load current operation
Overcurrent and thermal protection
VFDFPN 3 x 3 - 10L and HSOP8 package
Product Description
ANSC PART# | ANSC- L7986A |
Part# | L7986A |
Type： | Integrated Circuits |
Manufactor | STMicroelectronics |
DC | new |
Actual image of the product
TYPE | DESCRIPTION |
|---|---|
Category | Integrated Circuits (ICs) Power Management (PMIC) Voltage Regulators - DC DC Switching Regulators |
Mfr | STMicroelectronics |
Series | - |
Packaging | Tube |
Part Status | Active |
Function | Step-Down |
Output Configuration | Positive |
Topology | Buck |
Output Type | Adjustable |
Number of Outputs | 1 |
Voltage - Input (Min) | 4.5V |
Voltage - Input (Max) | 38V |
Voltage - Output (Min/Fixed) | 0.6V |
Voltage - Output (Max) | 38V |
Current - Output | 3A |
Frequency - Switching | 250kHz ~ 1MHz |
Synchronous Rectifier | No |
Operating Temperature | -40°C ~ 150°C (TJ) |
Mounting Type | Surface Mount |
Package / Case | 8-SOIC (0.154", 3.90mm Width) Exposed Pad |
Supplier Device Package | 8-HSOP |
Base Product Number | L7986 |

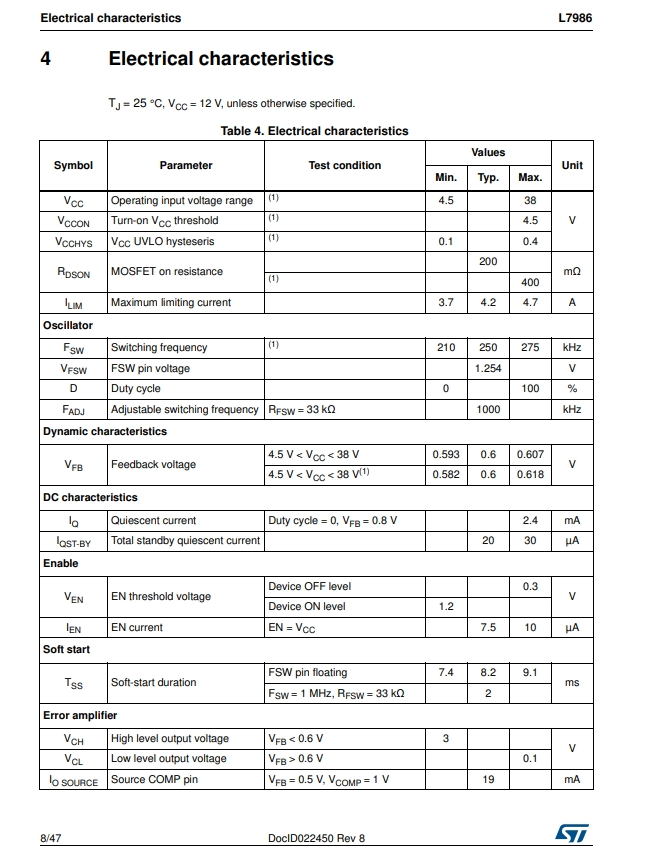

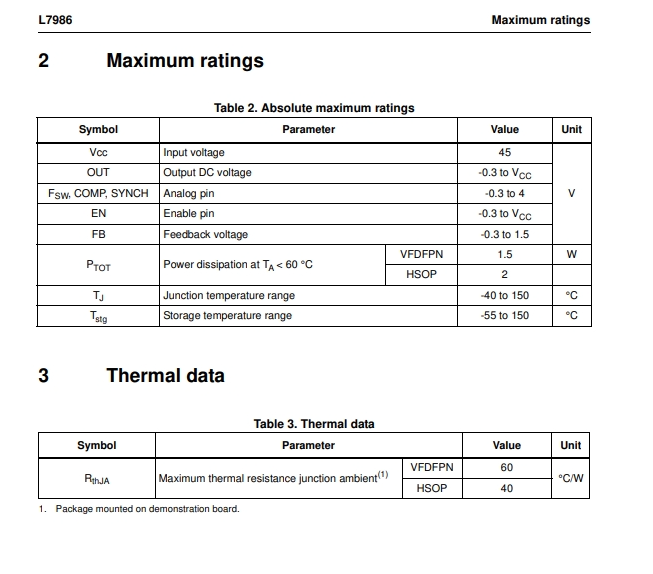

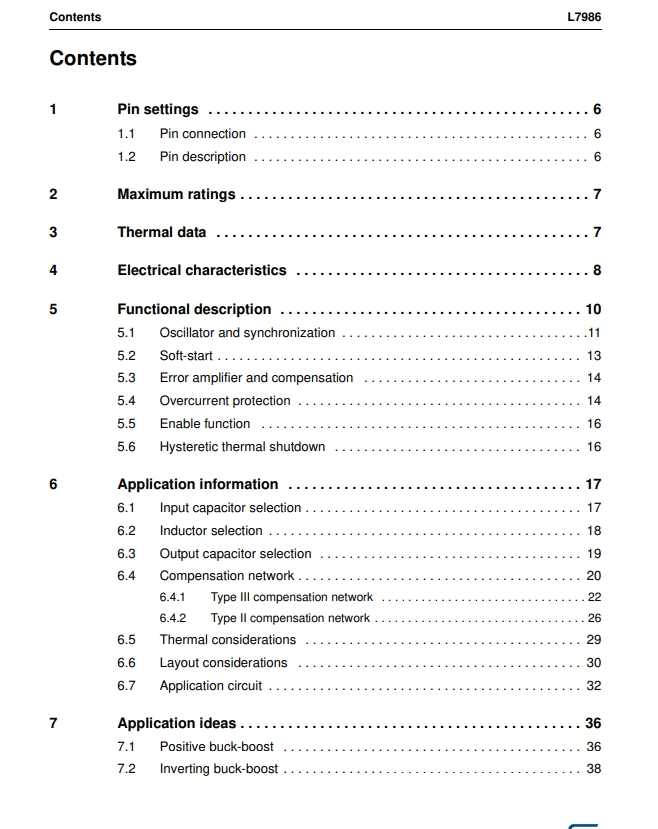

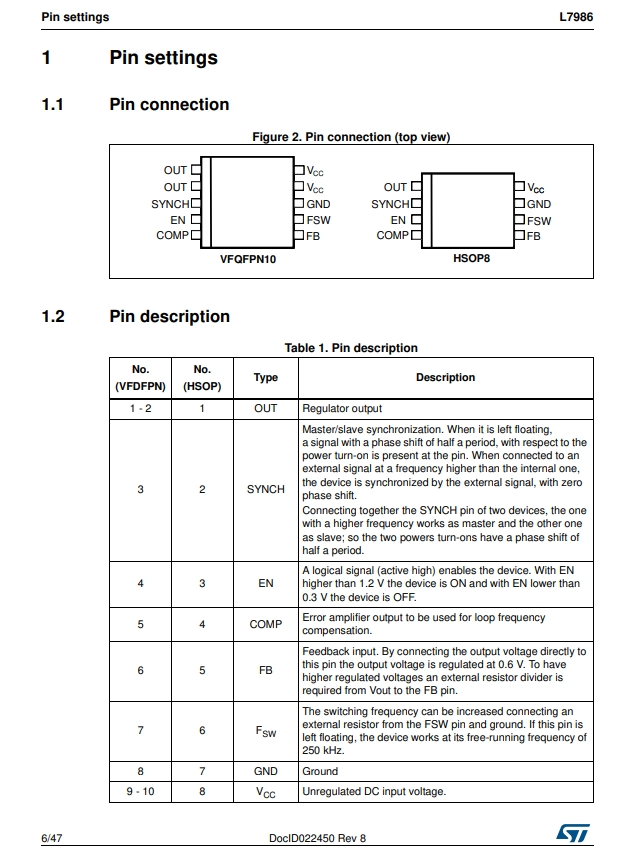

Product datasheet
For more information, please download
