Product Details
|

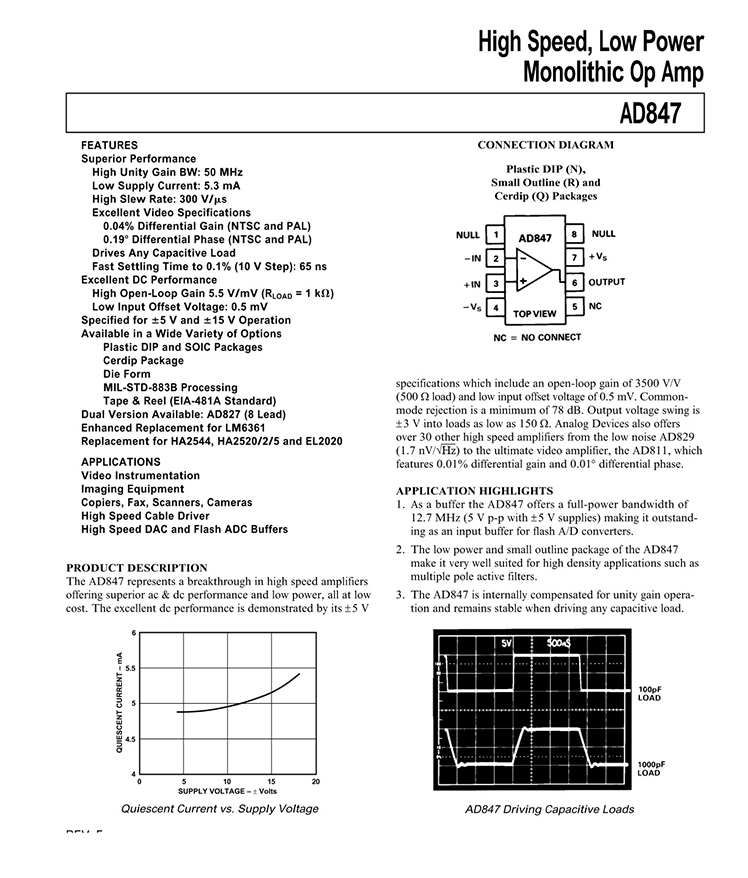

PRODUCT DESCRIPTION The AD847 represents a breakthrough in high speed amplifiers offering superior ac & dc performance and low power, all at low cost. The excellent dc performance is demonstrated by its ±5 V specifications which include an open-loop gain of 3500 V/V (500 ? load) and low input offset voltage of 0.5 mV. Common mode rejection is a minimum of 78 dB. Output voltage swing is ±3 V into loads as low as 150 ?. Analog Devices also offers over 30 other high speed amplifiers from the low noise AD829 (1.7 nV/√Hz) to the ultimate video amplifier, the AD811, which features 0.01% differential gain and 0.01° differential phase. FEATURES Superior Performance High Unity Gain BW: 50 MHz Low Supply Current: 5.3 mA High Slew Rate: 300 V/ms Excellent Video Specifications 0.04% Differential Gain (NTSC and PAL) 0.198 Differential Phase (NTSC and PAL) Drives Any Capacitive Load Fast Settling Time to 0.1% (10 V Step): 65 ns Excellent DC Performance High Open-Loop Gain 5.5 V/mV (RLOAD = 1 kV) Low Input Offset Voltage: 0.5 mV Specified for 65 V and 615 V Operation Available in a Wide Variety of Options Plastic DIP and SOIC Packages Cerdip Package Die Form MIL-STD-883B Processing Tape & Reel (EIA-481A Standard) Dual Version Available: AD827 (8 Lead) Enhanced Replacement for LM6361 Replacement for HA2544, HA2520/2/5 and EL2020 APPLICATIONS Video Instrumentation Imaging Equipment Copiers, Fax, Scanners, Cameras High Speed Cable Driver High Speed DAC and Flash ADC Buffers |
Product Description
| Type | Description |
| ANSC PART# | ANSC - AD847AR |
| Category | Integrated Circuits (ICs) |
| Linear | |
| Amplifiers | |
| Instrumentation, Op Amps, Buffer Amps | |
| Mfr | Original |
| Series | - |
| Packaging | Tube |
| Part Status | Obsolete |
| Amplifier Type | Standard (General Purpose) |
| Number of Circuits | 1 |
| Output Type | - |
| Slew Rate | 300V/μs |
| Gain Bandwidth Product | 50 MHz |
| Current - Input Bias | 3.3 μA |
| Voltage - Input Offset | 500 μV |
| Current - Supply | 5.3mA |
| Current - Output / Channel | 32 mA |
| Voltage - Supply Span (Min) | 9 V |
| Voltage - Supply Span (Max) | 36 V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Base Product Number | AD847 |

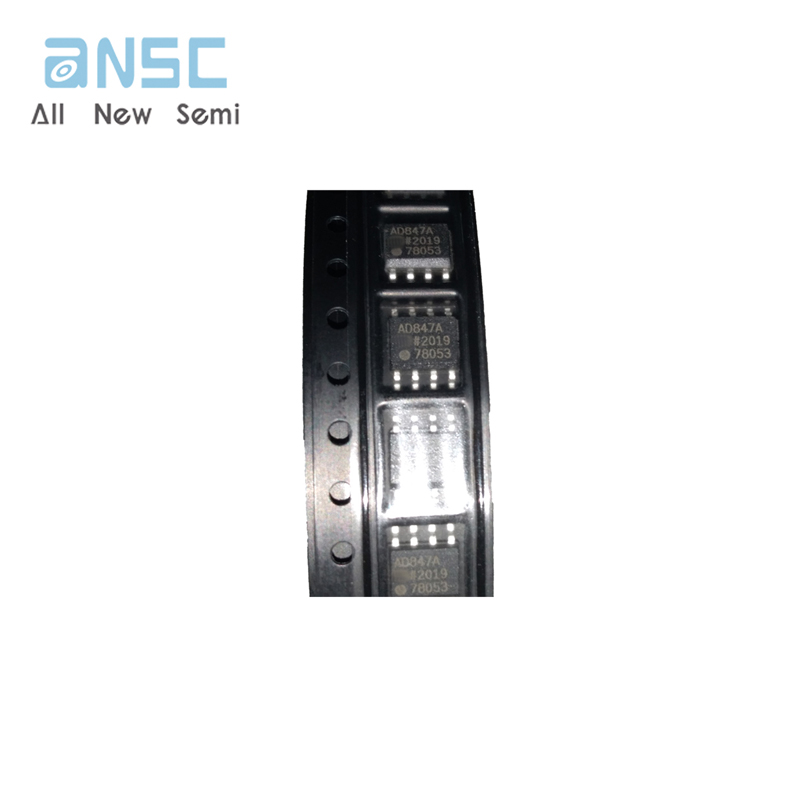

Product Photos

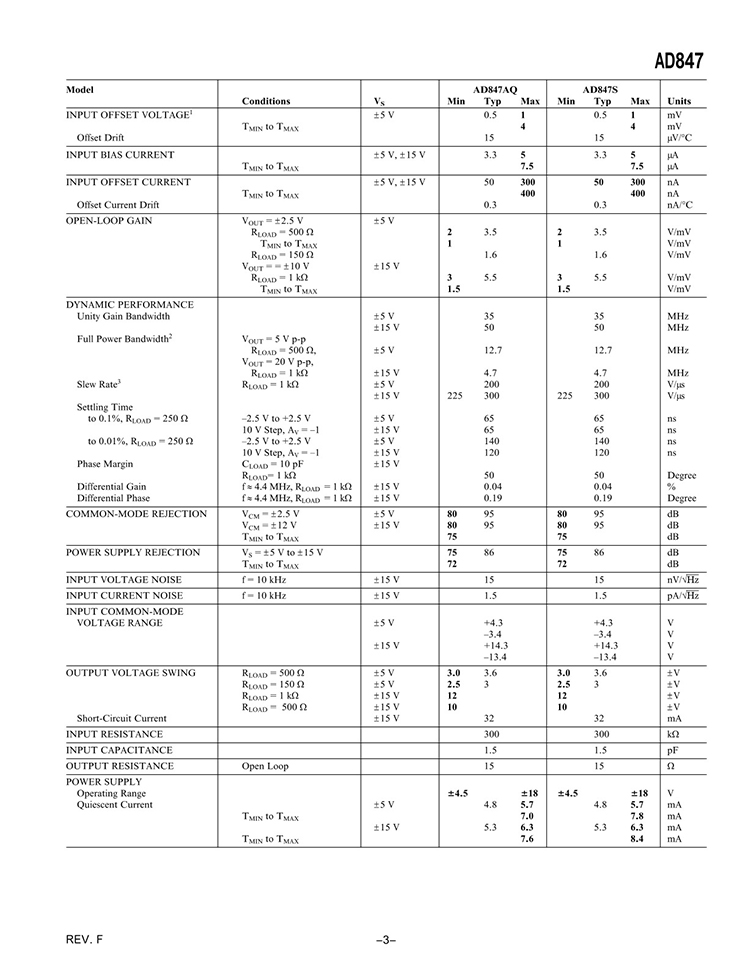

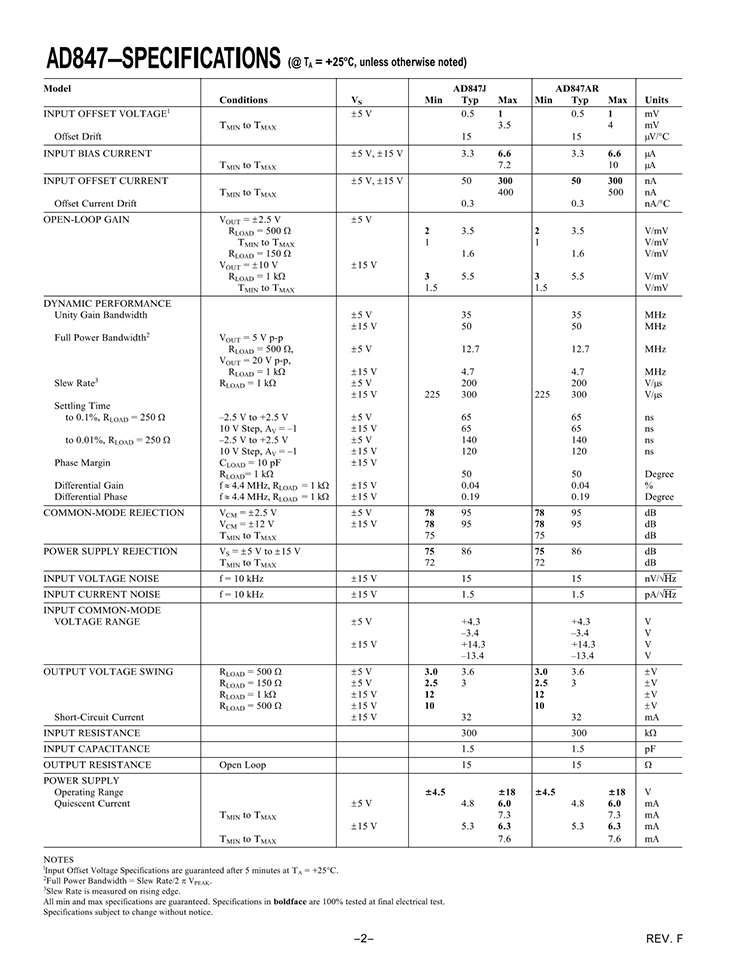

Product datasheet
