Product Features
? 5 V tolerant inputs/outputs for interfacing with 5 V logic
? Wide supply voltage range from 1.2 to 3.6 V
? CMOS low power consumption
? Direct interface with TTL levels
? Inputs accept voltages up to 5.5 V
? High-impedance when VCC = 0 V
? bus-hold on all data inputs (74LVCH245A only)
? Complies with JEDEC standard no. 8-1A
? ESD protection:
HBM EIA/JESD22-A114-A exceeds 2000 V
MM EIA/JESD22-A115-A exceeds 200 V
? Specified from ?40 to +85 °C and ?40 to +125 °C.
Specifications
| ANSM-Part# | 74LVC245AD |
| category | Integrated Circuit (IC) |
| Logic - Buffers, Drivers, Receivers, Transceivers | |
| manufacturer | Nexperia USA Inc. |
| series | 74LVC |
| Package | Tape and Reel (TR) |
| Shear Band (CT) | |
| product status | in stock |
| logical type | Transceiver, non-inverting |
| number of components | 1 |
| bits per element | 8 |
| input type | - |
| output type | Tri-state |
| Current - Output High, Low | 24mA,24mA |
| Voltage - Powered | 1.2V ~ 3.6V |
| Operating temperature | -40 ° C ~ 125 ° C |
| installation type | Surface Mount Type |
| Package/Enclosure | 20-SOIC (0.295", 7.50mm wide) |
| Supplier Device Packaging | 20-SO |
| Basic product number | 74LVC245 |
Actual product photos

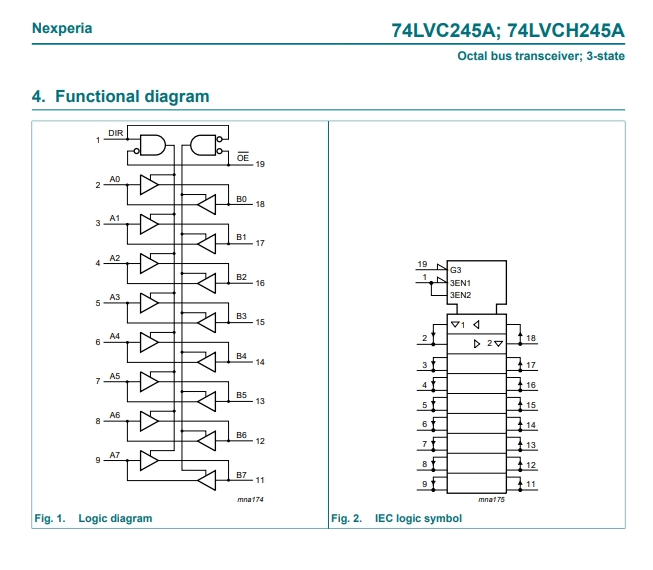

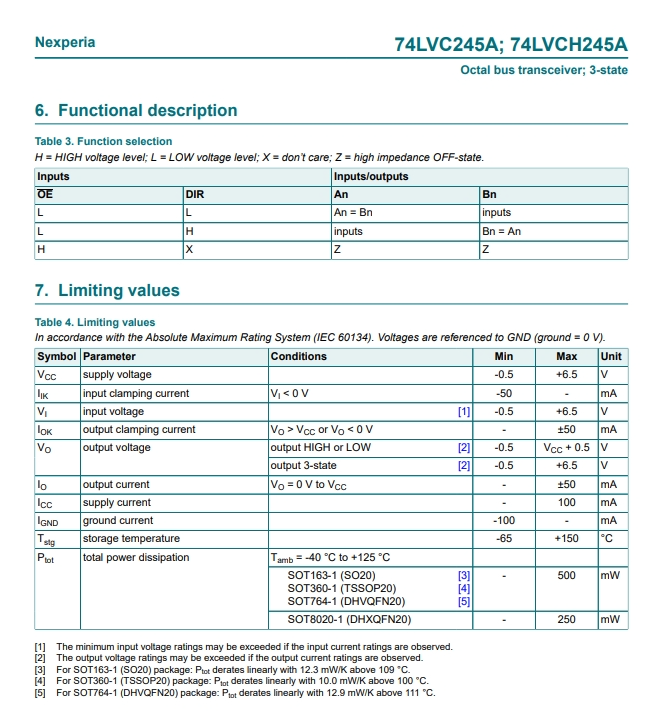

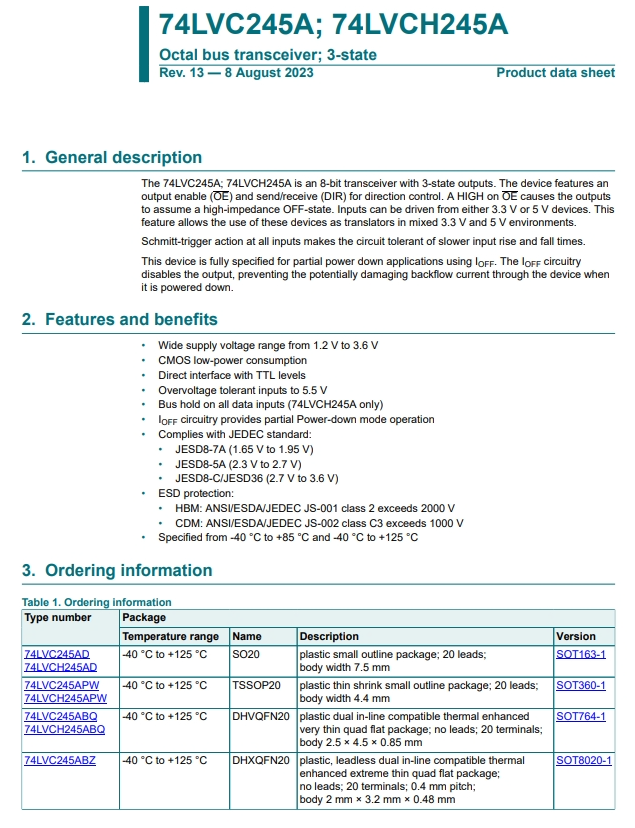

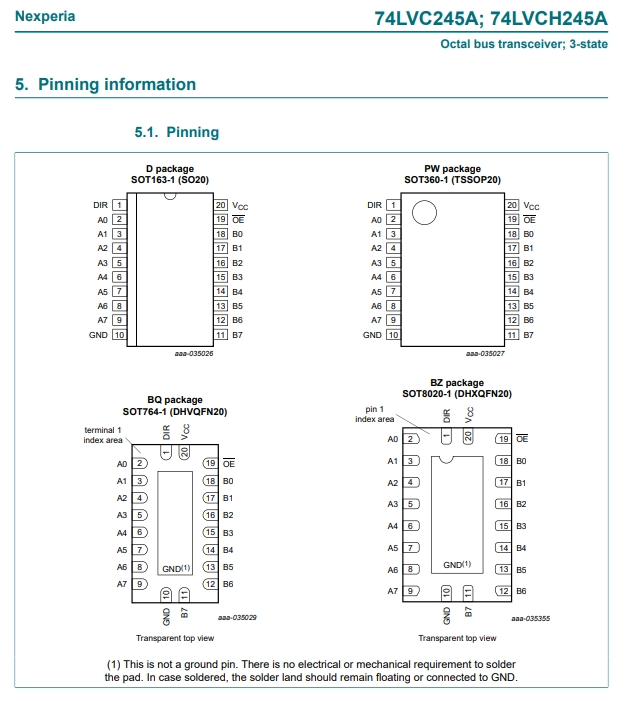

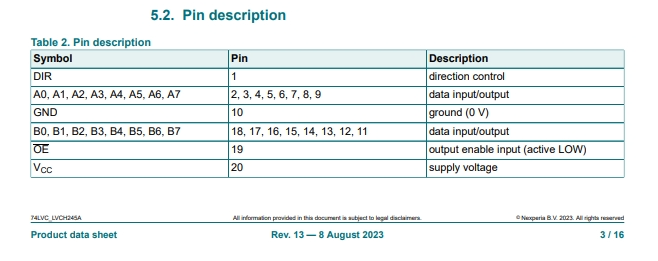

Product datasheet
