LCDA12C-8 Overview
The most energy losses ( 500 W heat) come from electronic and electrical devices.A diode's breakdown voltage indicates the maximum reverse voltage that can be applied without causing an exponential increase in leakage current in the diode, and its breakdown voltage is 13.3 V.
LCDA12C-8 Features
the least amount of 500 W heat (energy loss)
the breakdown voltage of a diode is 13.3 V
LCDA12C-8 Applications
There are a lot of Semtech
LCDA12C-8 applications of single-phase diode rectifier.
DC motor control and drives
Battery chargers
Welders
Power converters
Reverse Polarity Protection
Ultra High-Speed Switching
Freewheeling
Polarity Protection Diode
Recirculating Diode
Switching Diode
Product Description
ANSC PART# | ANSC- LCDA12C-8 |
Part# | LCDA12C-8 |
Type： | Electronic components |
Manufactor | Semtech |
DC | new |
Actual image of the product
TYPE | DESCRIPTION |
|---|---|
Category | Circuit Protection Transient Voltage Suppressors (TVS) TVS Diodes |
Mfr | Semtech Corporation |
Series | - |
Packaging | Tape & Reel (TR) Cut Tape (CT) |
Part Status | Active |
Type | Zener |
Bidirectional Channels | 8 |
Voltage - Reverse Standoff (Typ) | 12V (Max) |
Voltage - Breakdown (Min) | 13.3V |
Voltage - Clamping (Max) @ Ipp | 26.6V |
Current - Peak Pulse (10/1000μs) | 20A (8/20μs) |
Power - Peak Pulse | 500W |
Power Line Protection | No |
Applications | General Purpose |
Capacitance @ Frequency | 8pF @ 1MHz |
Operating Temperature | -55°C ~ 125°C (TJ) |
Mounting Type | Surface Mount |
Package / Case | 16-SOIC (0.154", 3.90mm Width) |
Supplier Device Package | 16-SO |
Base Product Number | LCDA12 |

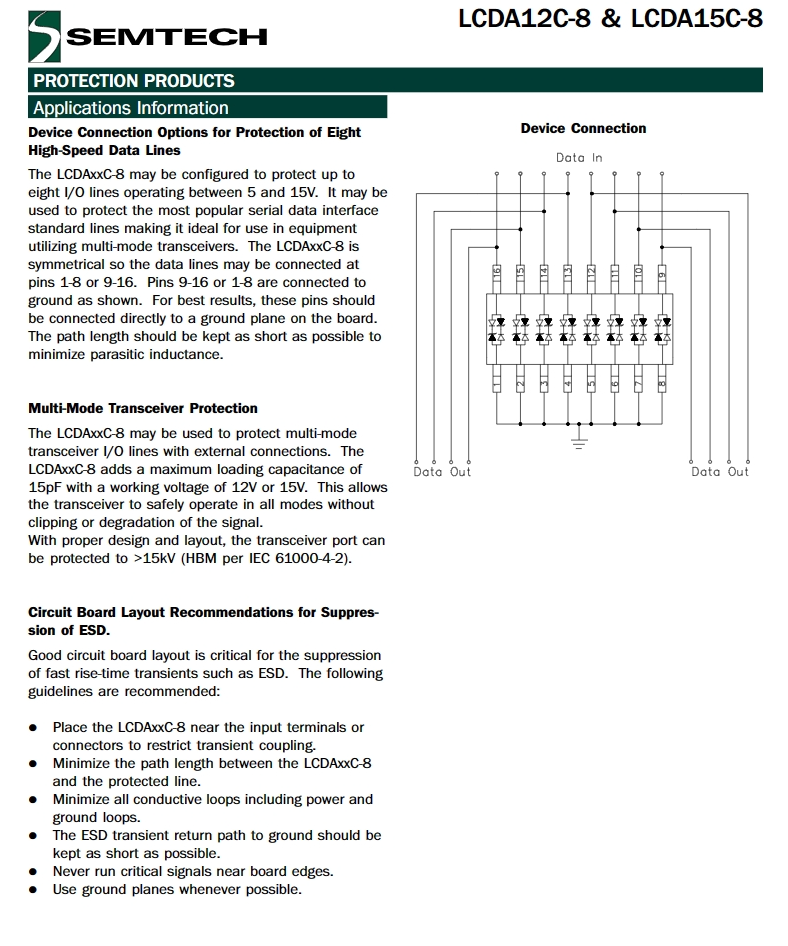

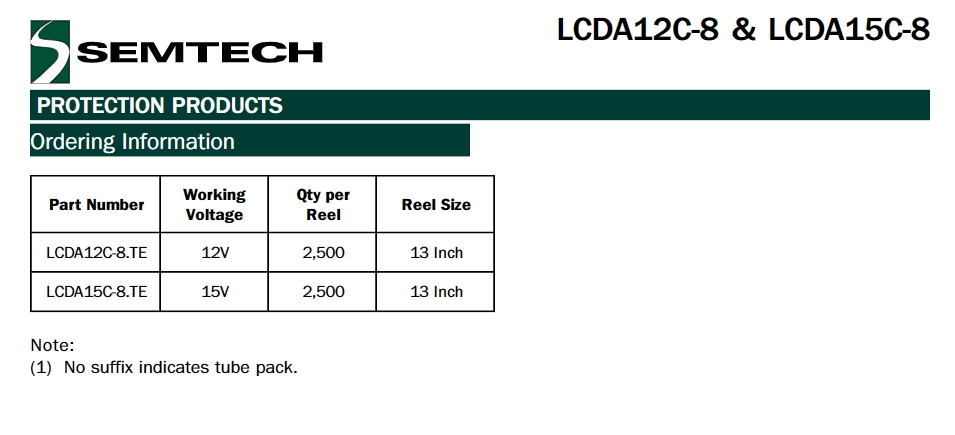

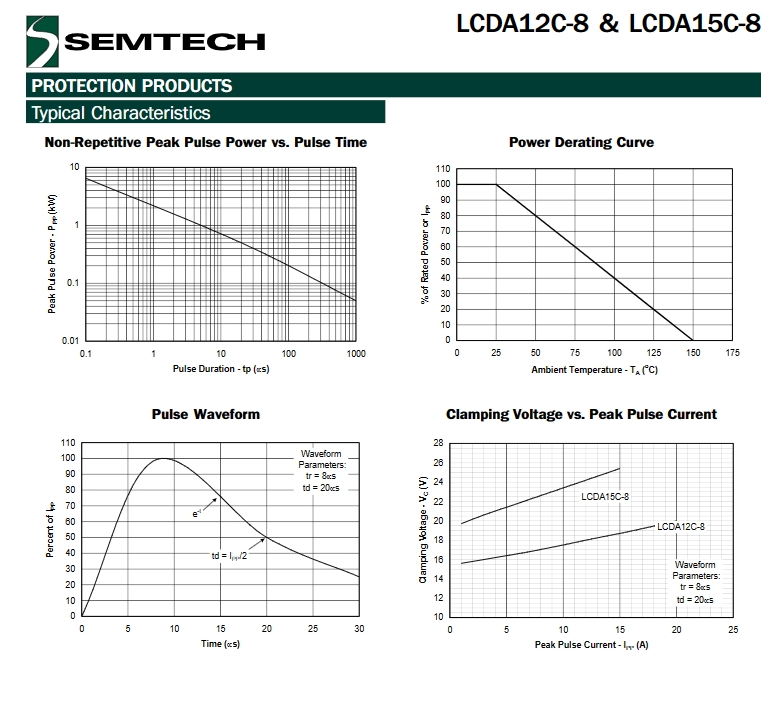

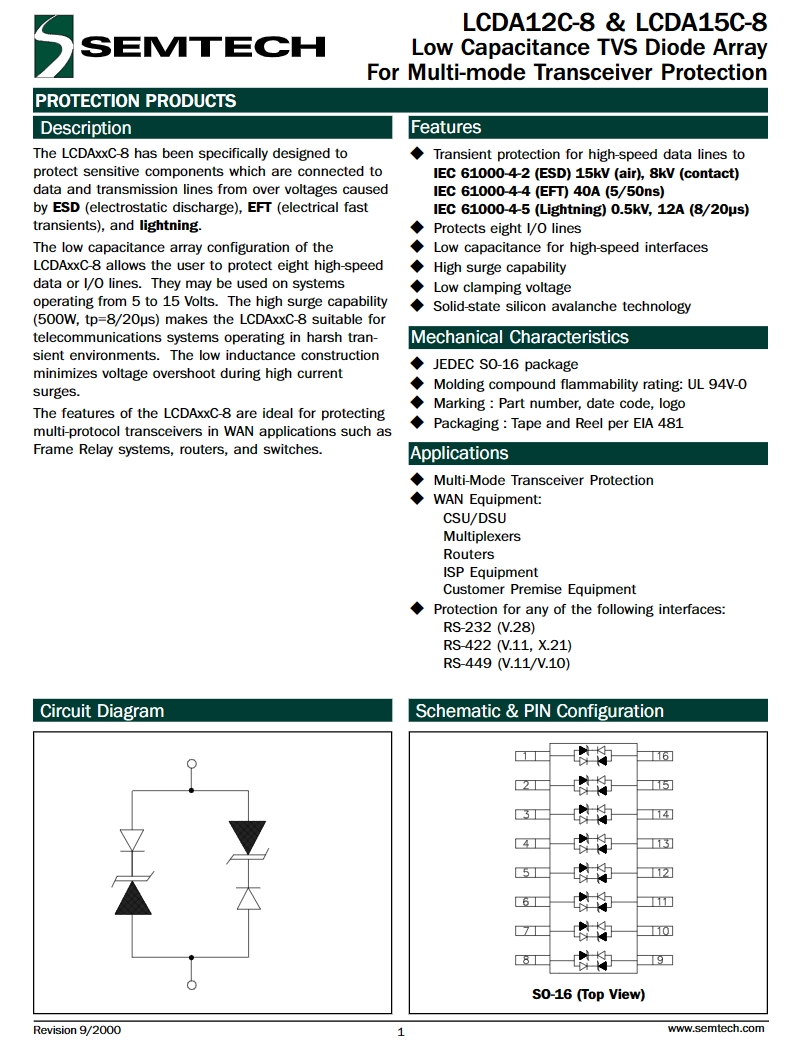

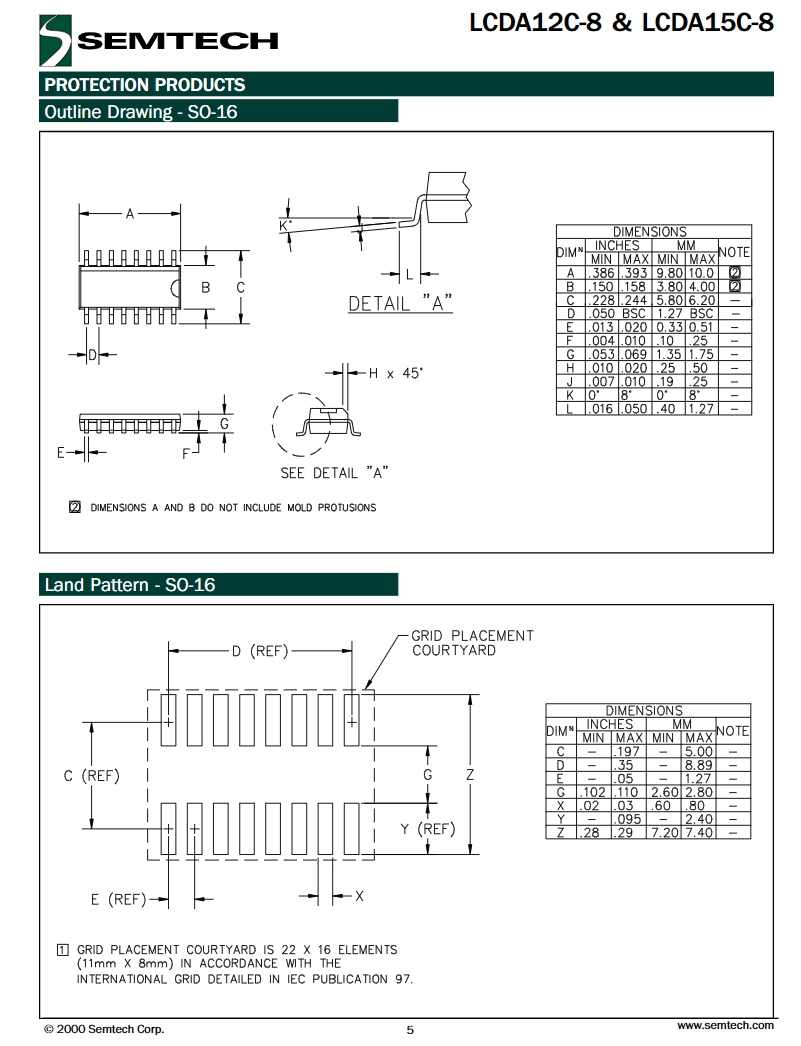

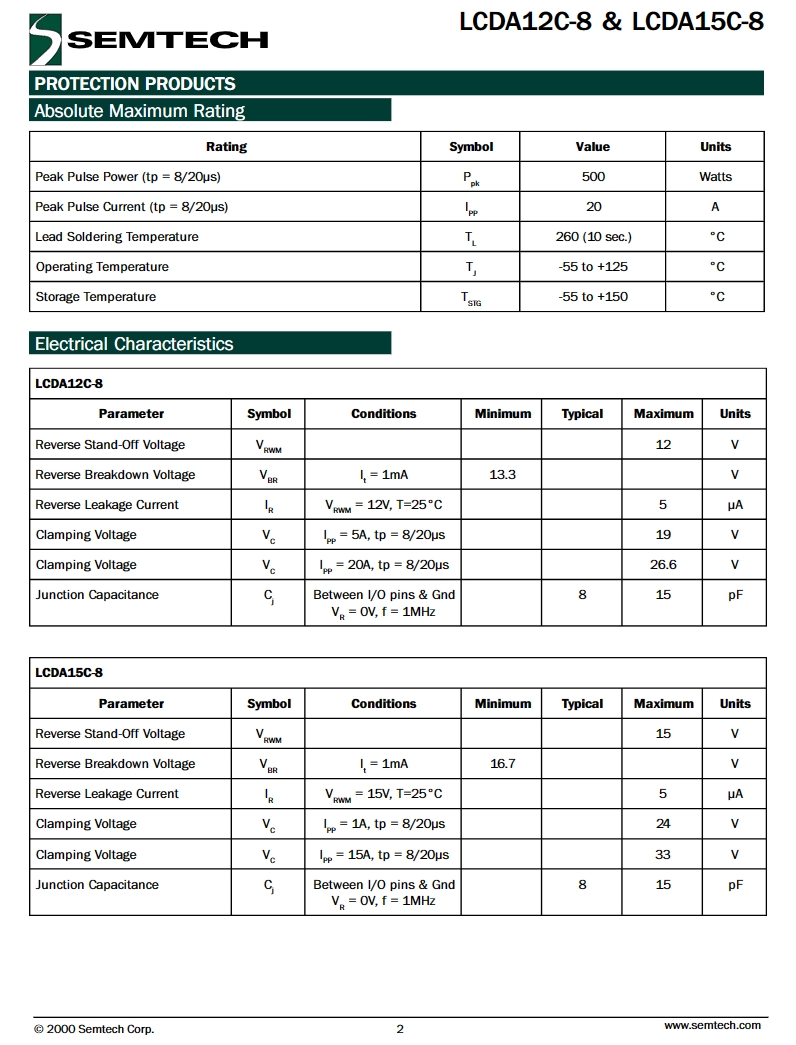

Product datasheet
For more information, please download
