Product Details
NEW LM339B and LM2901B
Improved specifications of B-version
Maximum rating: up to 38 V
ESD rating (HBM): 2k V
Low input offset: 0.37 mV
Low input bias current: 3.5 nA
Low supply-current: 200 μA per comparator
Faster response time of 1 μsec
Extended temperature range for LM339B
B-version is drop-in replacement for LM239, LM339 and LM2901, A and V versions
Common-mode input voltage range includes ground
Differential input voltage range equal to maximum-rated supply voltage: ±38 V
Low output saturation voltage
Output compatible with TTL, MOS, and CMOS
Product Description
ANSC PART# | ANSC- LM139AD |
Part# | LM139AD |
Type： | Integrated Circuits |
Manufactor | Texas Instruments |
DC | new |
Actual image of the product
TYPE | DESCRIPTION |
|---|---|
Category | Integrated Circuits (ICs) Linear Comparators |
Manufacturer | Texas Instruments |
Series | - |
Packaging | Tube |
Part Status | Last Time Buy |
Type | General Purpose |
Number of Elements | 4 |
Output Type | Open-Collector, Open-Drain |
Voltage - Supply, Single/Dual (±) | 2V ~ 30V, ±1V ~ 15V |
Voltage - Input Offset (Max) | 2mV @ 30V |
Current - Input Bias (Max) | 0.1μA @ 5V |
Current - Output (Typ) | 20mA |
Current - Quiescent (Max) | 2mA |
CMRR, PSRR (Typ) | - |
Propagation Delay (Max) | - |
Hysteresis | - |
Operating Temperature | -55°C ~ 125°C |
Package / Case | 14-SOIC (0.154", 3.90mm Width) |
Mounting Type | Surface Mount |
Supplier Device Package | 14-SOIC |
Base Product Number | LM139 |

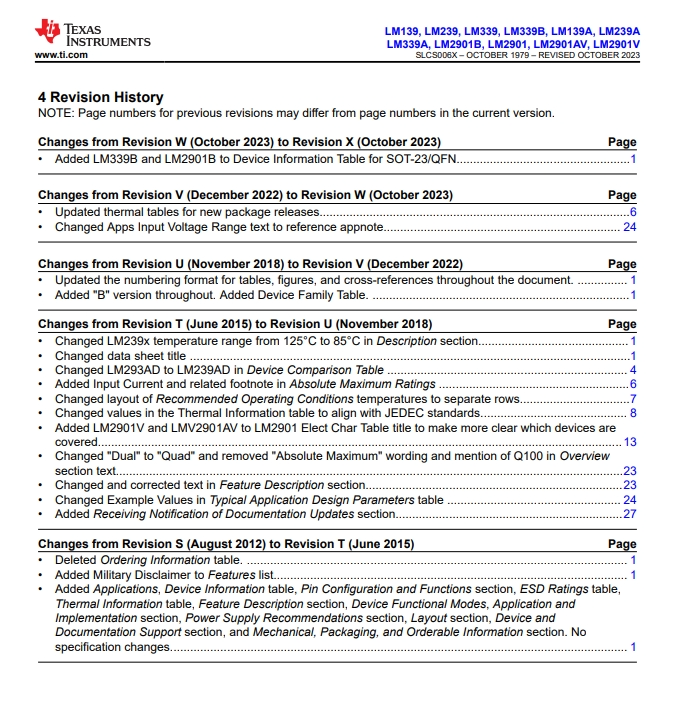

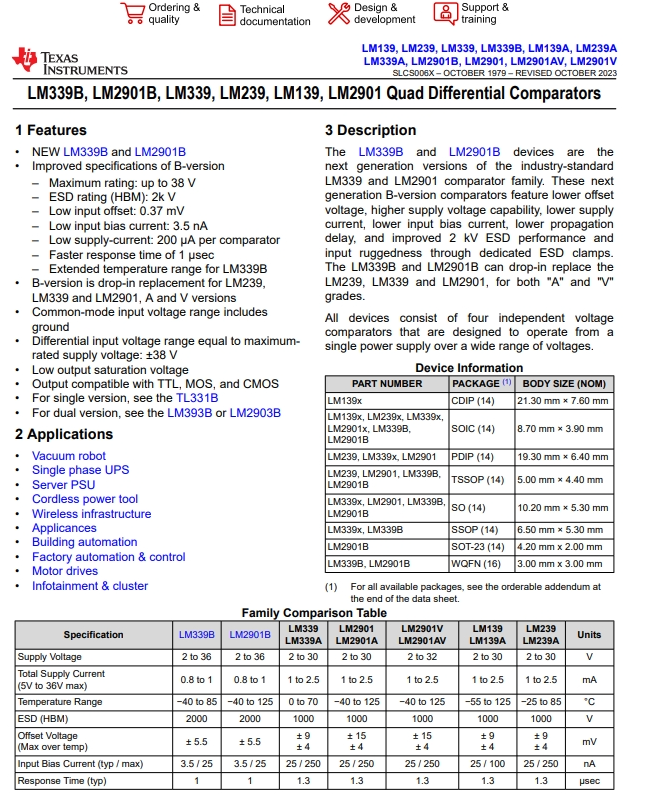

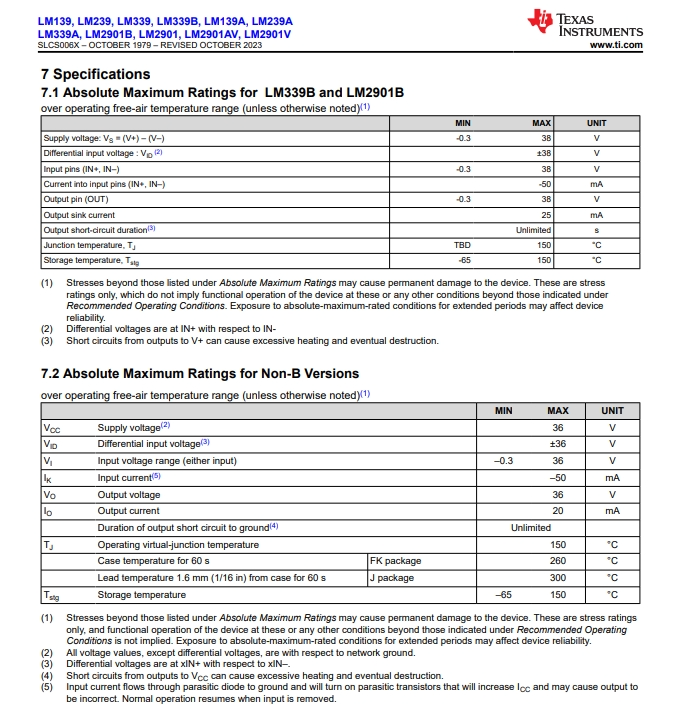

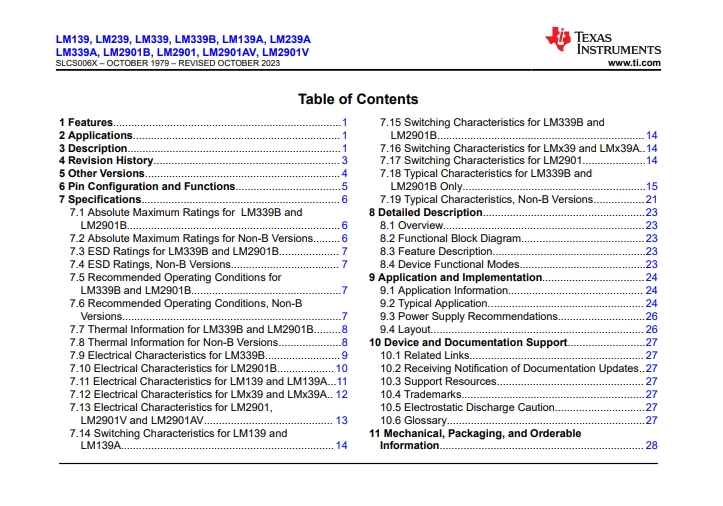

Product datasheet
For more information, please download
