Product Details
Features
? Guard Ring Die Construction for Transient Protection
? Ideally Suited for Automated Assembly
? Low Power Loss, High Efficiency
? For Use in Low Voltage, High Frequency Inverters, Free Wheeling, and Polarity Protection Application
? Lead Free Finish/RoHS Compliant (Note 1)
? Green Molding Compound (No Halogen and Antimony) (Note 2)
Product Description
| Type | Description |
| ANSC PART# | ANSC- B530C-13-F |
| Category | Discrete Semiconductor Products |
| Diodes | |
| Rectifiers | |
| Single Diodes | |
| Mfr | Original |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| / | |
| Part Status | Active |
| Technology | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 30 V |
| Current - Average Rectified (Io) | 5A |
| Voltage - Forward (Vf) (Max) @ If | 550 mV @ 5 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Current - Reverse Leakage @ Vr | 500 μA @ 30 V |
| Capacitance @ Vr, F | 300pF @ 4V, 1MHz |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AB, SMC |
| Supplier Device Package | SMC |
| Operating Temperature - Junction |
-55°C ~ 150°C |
| Base Product Number | B530 |

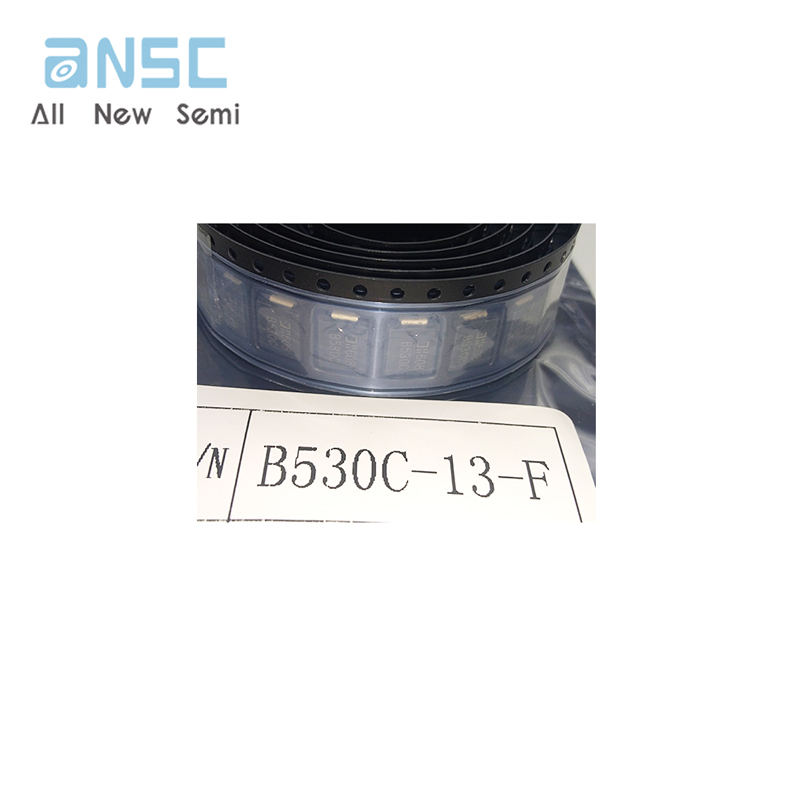

Product Photos

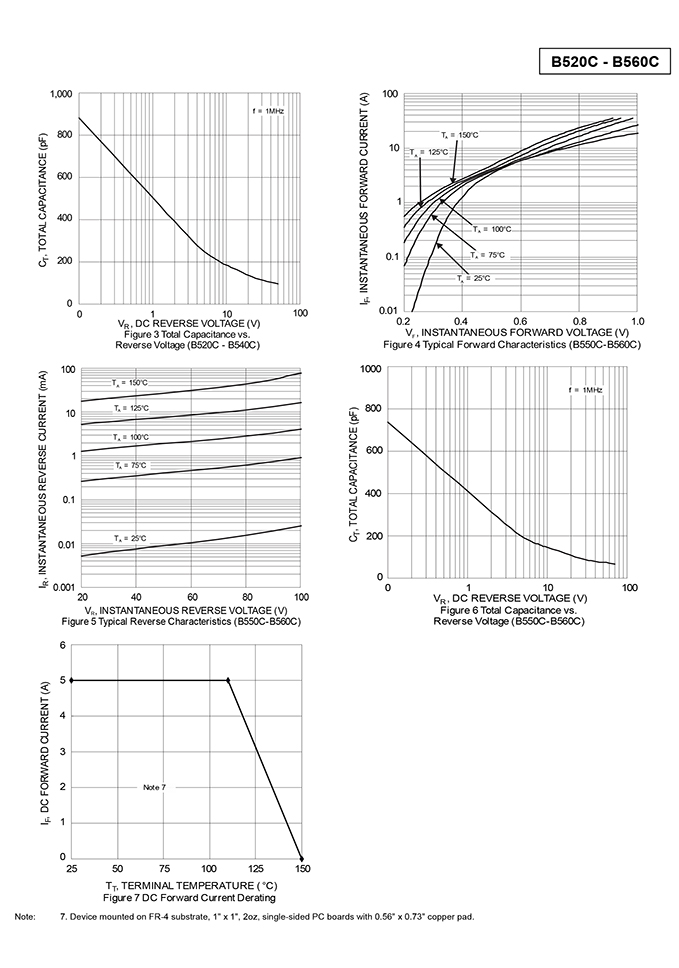

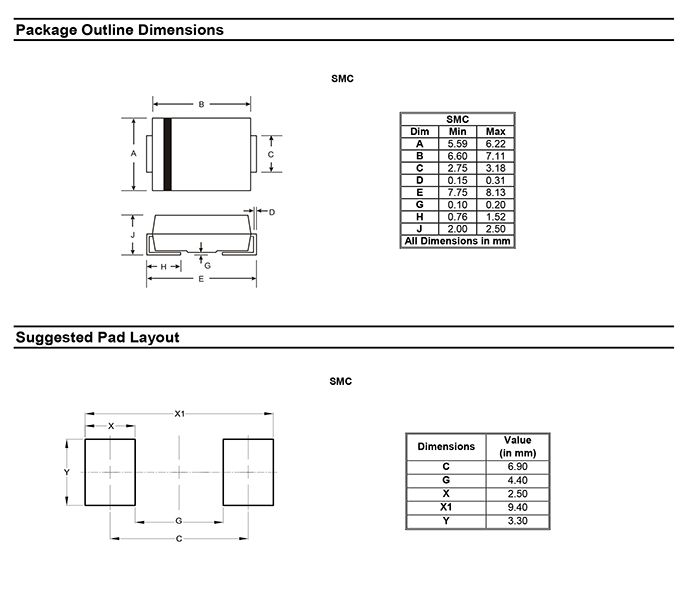

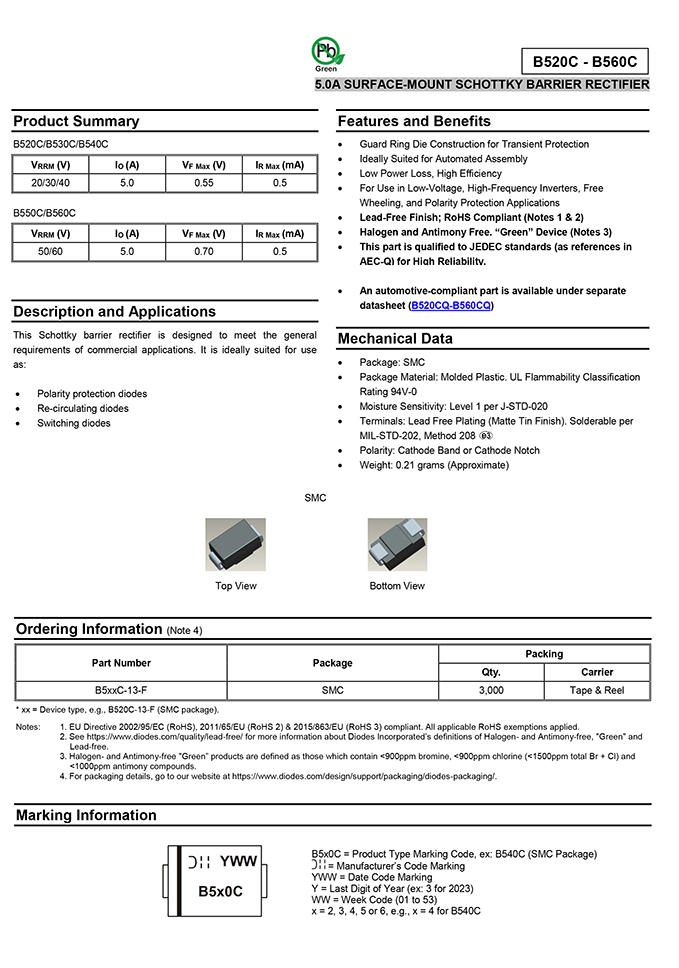

Product datasheet
For more information, please download
